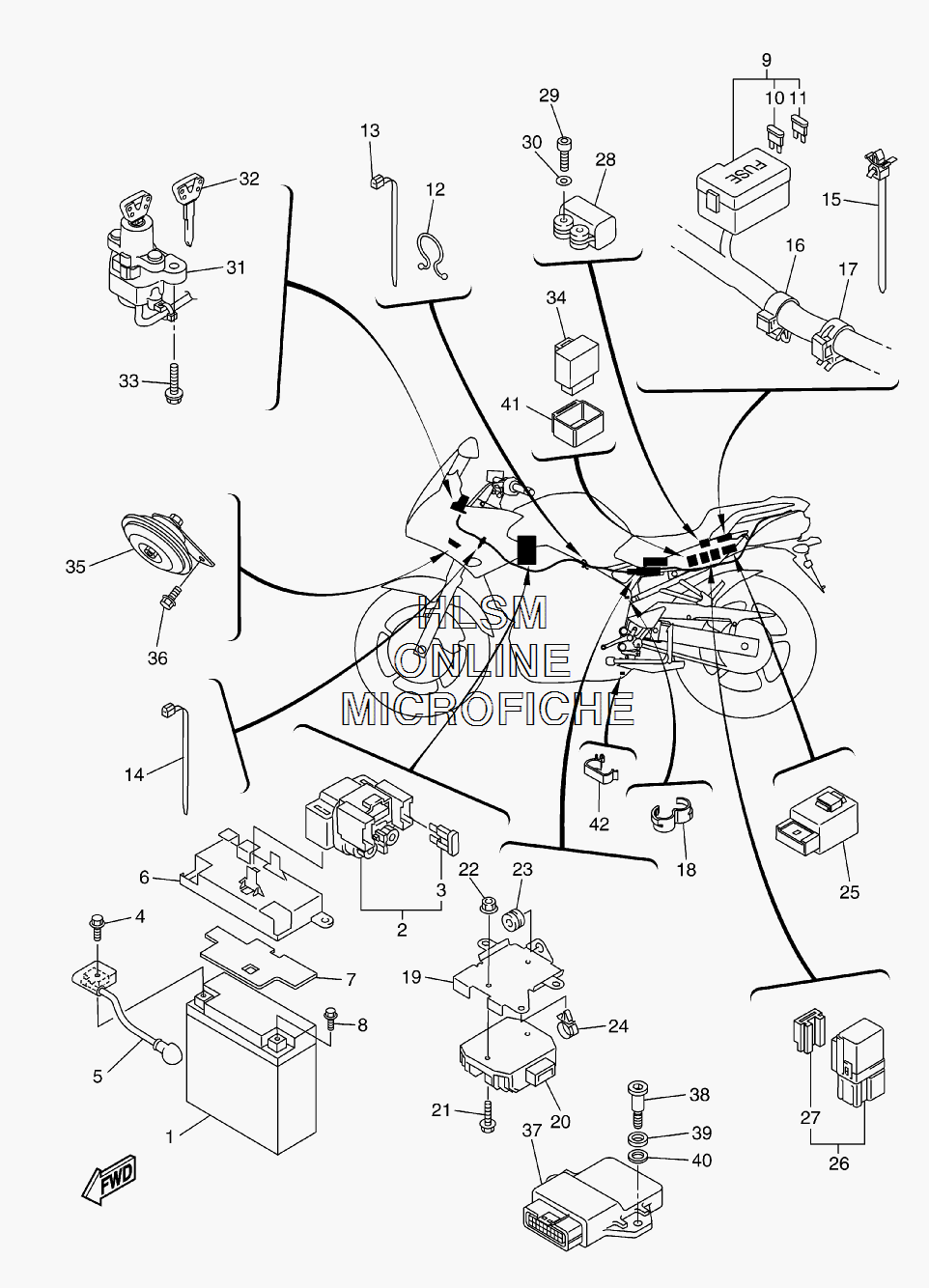

ELECTRICAL 2 для Yamaha FZ6 - 2008 года выпуска`
-
№АртикулНазвание
-
14TX-82100-02-00 BATTERY ASSY (GS GT12B-4)BATTERY ASSY (GS GT12B-4)
-
24BH-81940-02-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
31AE-82151-00-00 ...FUSE (30A-BL)...FUSE (30A-BL)
-
495027-06008-00 BOLT, FLANGEBOLT, FLANGE
-
55VX-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
65VX-2124E-00-00 COVER, BATTERYCOVER, BATTERY
-
75VX-82123-00-00 SEAT, BATTERYSEAT, BATTERY
-
895027-06008-00 BOLT, FLANGEBOLT, FLANGE
-
94S8-82590-20-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
105JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
115JJ-82151-20-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
1290464-14058-00 CLAMPCLAMP
-
1390464-13077-00 CLAMPCLAMP
-
1490464-13077-00 CLAMPCLAMP
-
1590464-12089-00 CLAMPCLAMP
-
1690464-16006-00 CLAMPCLAMP
-
1790464-15192-00 CLAMPCLAMP
-
1890464-16001-00 CLAMPCLAMP
-
195VX-2128A-00-00 BRACKET, REGULATORBRACKET, REGULATOR
-
205VX-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
2195807-06020-00 BOLT, FLANGEBOLT, FLANGE
-
2295707-06500-00 NUT, FLANGE (4MV)NUT, FLANGE (4MV)
-
2390480-11005-00 GROMMETGROMMET
-
2490464-13249-00 CLAMPCLAMP
-
255VK-81950-30-00 RELAY ASSYRELAY ASSY
-
265EA-81950-20-00 RELAY ASSYRELAY ASSY
-
275EA-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
285PS-82576-01-00 LEAN ANGLE SENSORLEAN ANGLE SENSOR
-
2991317-04025-00 BOLTBOLT
-
3090201-047A2-00 WASHER, PLATEWASHER, PLATE
-
315VX-82501-11-00 MAIN SWITCH STEERING LOCKMAIN SWITCH STEERING LOCK
-
324BH-82511-09-00 BLANK KEYBLANK KEY
-
3390109-080G5-00 BOLTBOLT
-
344VR-83350-00-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
-
355VX-83371-01-00 HORNHORN
-
3695807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
374S8-8591A-10-00 ENGINE CONTROL UNIT ASSY (EXCEPT CALIF)ENGINE CONTROL UNIT ASSY (EXCEPT CALIF)
-
374S8-8591A-20-00 ENGINE CONTROL UNIT ASSY (CALIF ONLY)ENGINE CONTROL UNIT ASSY (CALIF ONLY)
-
3890109-06055-00 BOLTBOLT
-
395VX-21778-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
4090202-08205-00 WASHER, PLATEWASHER, PLATE
-
414VR-8338V-00-00 DAMPERDAMPER
-
4290464-24230-00 CLAMPCLAMP
