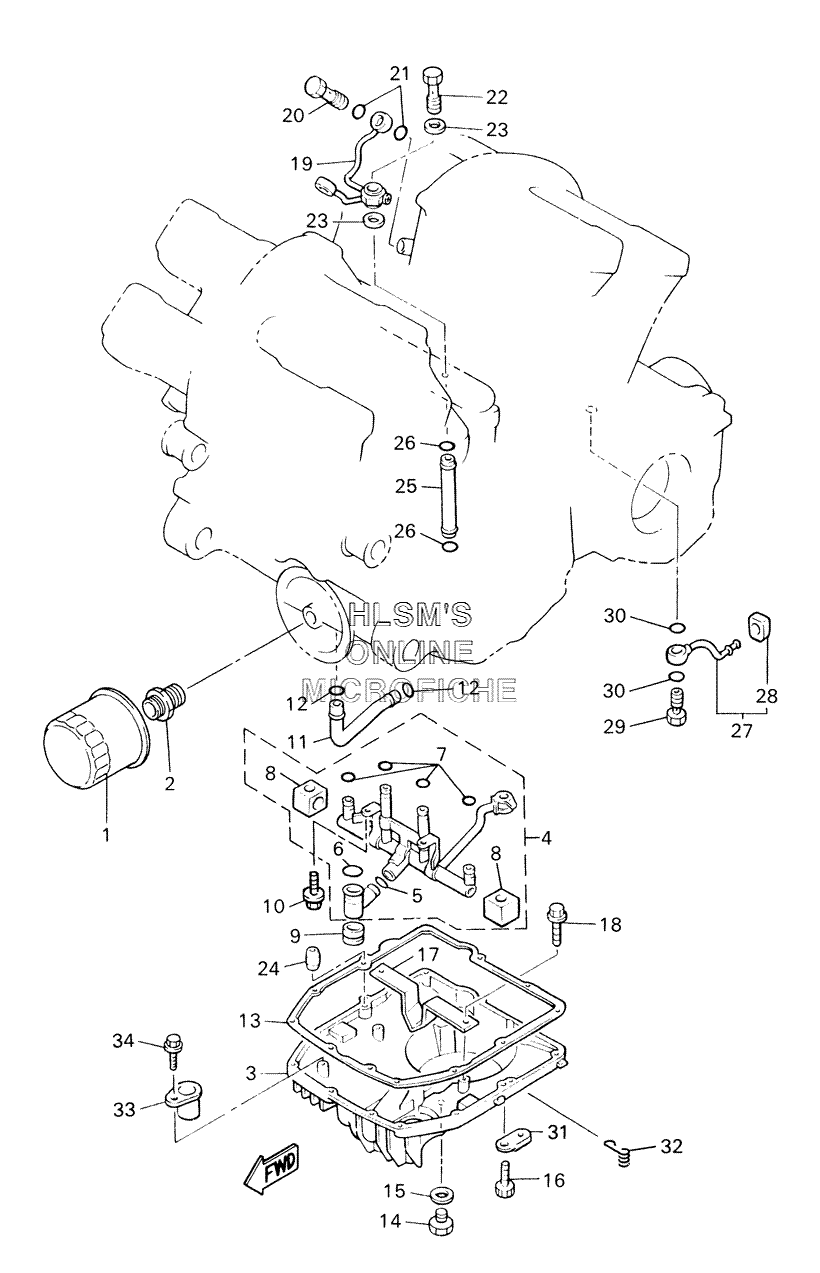

OIL CLEANER для Yamaha V-MAX - 2006 года выпуска`
-
№АртикулНазвание
-
15GH-13440-00-00 ELEMENT ASSY, OIL CLEANERELEMENT ASSY, OIL CLEANER
-
290401-20145-00 BOLT, UNIONBOLT, UNION
-
326H-13417-01-00 COVER, STRAINERCOVER, STRAINER
-
426H-Y1319-10-00 DELIVERY PIPE ASS'YDELIVERY PIPE ASS'Y
-
593210-13361-00 ...O-RING...O-RING
-
693210-14637-00 ...O-RING...O-RING
-
793210-06667-00 ...O-RING...O-RING
-
826H-15365-00-00 ...GROMMET...GROMMET
-
926H-15366-01-00 GROMMETGROMMET
-
1095817-06012-00 BOLT, FLANGEBOLT, FLANGE
-
1126H-13161-00-00 PIPE, DELIVERY 1PIPE, DELIVERY 1
-
1293210-14579-00 O-RINGO-RING
-
133JP-13414-01-00 GASKET, STRAINER COVERGASKET, STRAINER COVER
-
1490340-14132-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
15214-11198-01-00 GASKETGASKET
-
1691317-06030-00 BOLTBOLT
-
1726H-13337-01-00 PLATE, BAFFLE LOWERPLATE, BAFFLE LOWER
-
1895817-06012-00 BOLT, FLANGEBOLT, FLANGE
-
1926H-13181-03-00 PIPE, DELIVERY 3PIPE, DELIVERY 3
-
2090401-08038-00 BOLT, UNIONBOLT, UNION
-
2190430-08119-00 GASKETGASKET
-
2290401-10108-00 BOLT, UNIONBOLT, UNION
-
2390201-10128-00 WASHER, PLATEWASHER, PLATE
-
2499530-08016-00 PIN, DOWELPIN, DOWEL
-
2526H-13171-00-00 PIPE, DELIVERY 2PIPE, DELIVERY 2
-
2693210-06667-00 O-RINGO-RING
-
2726H-13416-01-00 PIPE, OIL 1PIPE, OIL 1
-
2826H-13476-00-00 ...GASKET...GASKET
-
2990401-08093-00 BOLT, UNIONBOLT, UNION
-
3090430-08119-00 GASKETGASKET
-
3190465-08193-00 CLAMPCLAMP
-
3290465-23286-00 CLAMPCLAMP
-
331FK-13151-00-00 STAYSTAY
-
3495817-06012-00 BOLT, FLANGEBOLT, FLANGE
