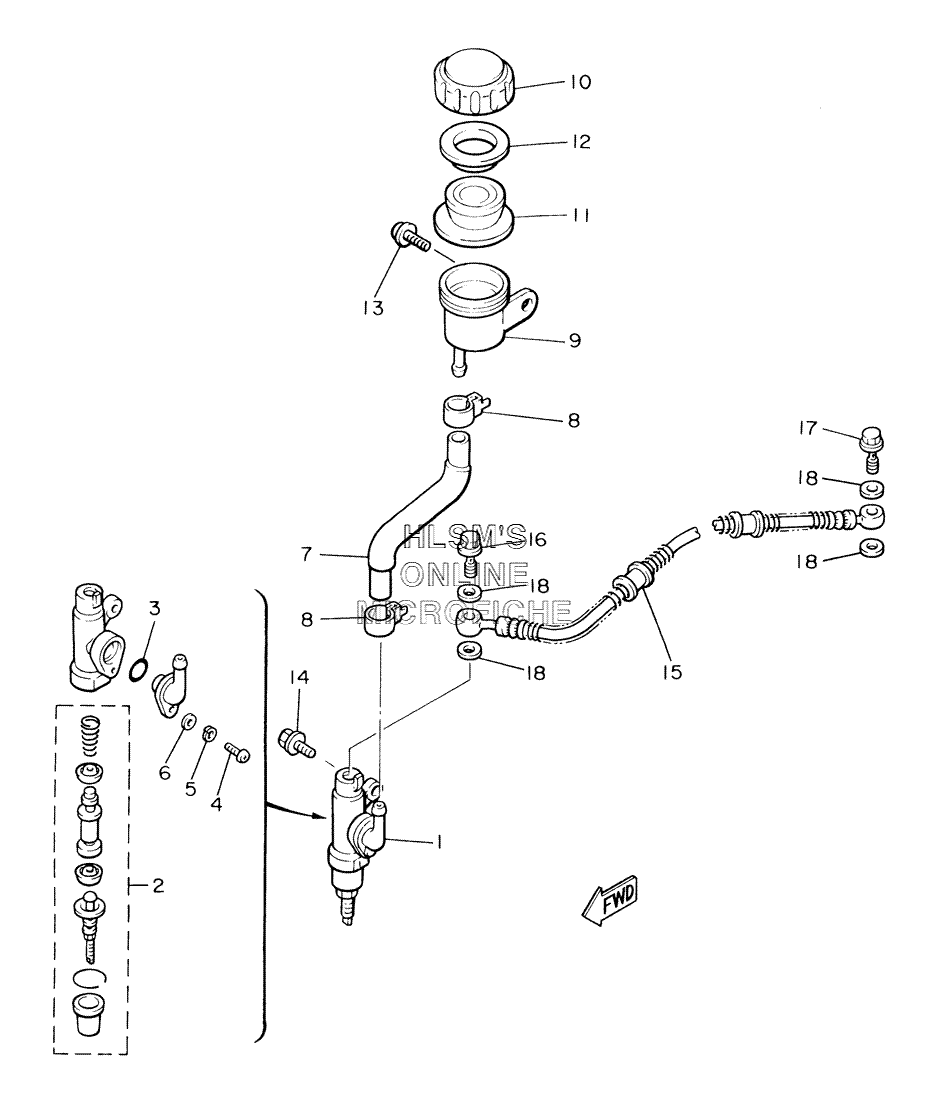

BRAKE - REAR MASTER CYLINDER для Yamaha V-MAX - 2006 года выпуска`
-
№АртикулНазвание
-
11FK-25850-50-00 MASTER CYLINDER ASSYMASTER CYLINDER ASSY
-
21FK-W0042-50-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
393210-15620-00 ...O-RING...O-RING
-
498501-04012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
592901-04100-00 ...WASHER, SPRING...WASHER, SPRING
-
692901-04600-00 ...WASHER, PLATE...WASHER, PLATE
-
71FK-25895-00-00 HOSE, RESERVOIRHOSE, RESERVOIR
-
890467-14057-00 CLIP, SCISSORCLIP, SCISSOR
-
931A-25894-01-00 TANK, RESERVOIRTANK, RESERVOIR
-
102KF-25852-50-00 CAP, RESERVOIRCAP, RESERVOIR
-
11360-25854-01-00 DIAPHRAGM, RESERVOIRDIAPHRAGM, RESERVOIR
-
122GU-25855-00-00 BUSH, DIAPHRAGMBUSH, DIAPHRAGM
-
1390159-06056-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1490105-081A1-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
151FK-25874-03-00 HOSE, BRAKEHOSE, BRAKE
-
1690401-10159-00 BOLT, UNIONBOLT, UNION
-
1790401-10159-00 BOLT, UNIONBOLT, UNION
-
1890201-10118-00 WASHER, PLATEWASHER, PLATE
