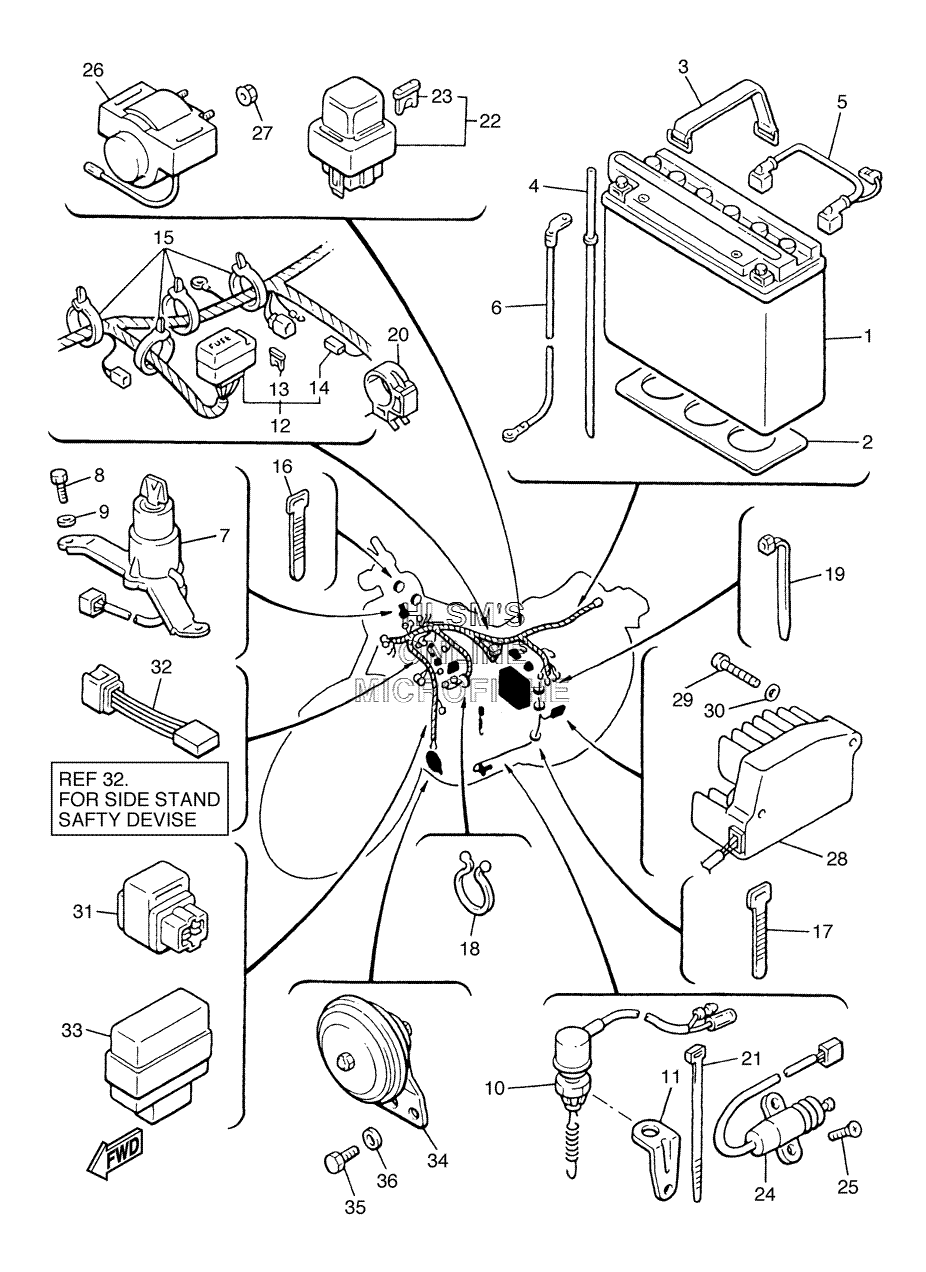

ELECTRICAL 2 для Yamaha V-MAX - 2006 года выпуска`
-
№АртикулНазвание
-
1BTY-YB16A-L0-00 BATTERY ASSY (YUASA YB16AL-A2)BATTERY ASSY (YUASA YB16AL-A2)
-
21FK-82122-00-00 SEAT, BATTERYSEAT, BATTERY
-
31E6-82131-00-00 BAND, BATTERYBAND, BATTERY
-
41FK-82112-00-00 PIPE, BREATHERPIPE, BREATHER
-
51UT-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
61FK-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
71FK-82510-01-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
897007-06016-00 BOLTBOLT
-
992907-06600-00 WASHER, PLATEWASHER, PLATE
-
101FK-82530-02-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
111FK-82539-00-00 STAY, STOP SWITCHSTAY, STOP SWITCH
-
123JP-82590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
1342X-82151-20-00 ...FUSE (10A)...FUSE (10A)
-
143H5-81980-00-00 ...DIODE ASSY...DIODE ASSY
-
151UA-82591-00-00 BANDBAND
-
16437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
173TB-83936-00-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
1890464-16039-00 CLAMPCLAMP
-
1990464-13073-00 CLAMPCLAMP
-
201UA-82591-00-00 BANDBAND
-
2190464-15192-00 CLAMPCLAMP
-
221AE-82150-00-00 FUSE HOLDER ASSYFUSE HOLDER ASSY
-
231AE-82151-00-00 ...FUSE (30A-BL)...FUSE (30A-BL)
-
243LD-82566-70-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
2590157-05079-00 SCREW, PAN HEADSCREW, PAN HEAD
-
263UF-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
2795707-06500-00 NUT, FLANGENUT, FLANGE
-
283JP-81960-01-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
2998507-06030-00 SCREW, PAN HEADSCREW, PAN HEAD
-
3092907-06600-00 WASHER, PLATEWASHER, PLATE
-
311RL-81950-92-00 RELAY ASSYRELAY ASSY
-
324U8-81980-M0-00 DIODE ASSYDIODE ASSY
-
332UJ-83350-00-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
-
341FK-83371-02-00 HORNHORN
-
3597007-06016-00 BOLTBOLT
-
3692907-06600-00 WASHER, PLATEWASHER, PLATE
