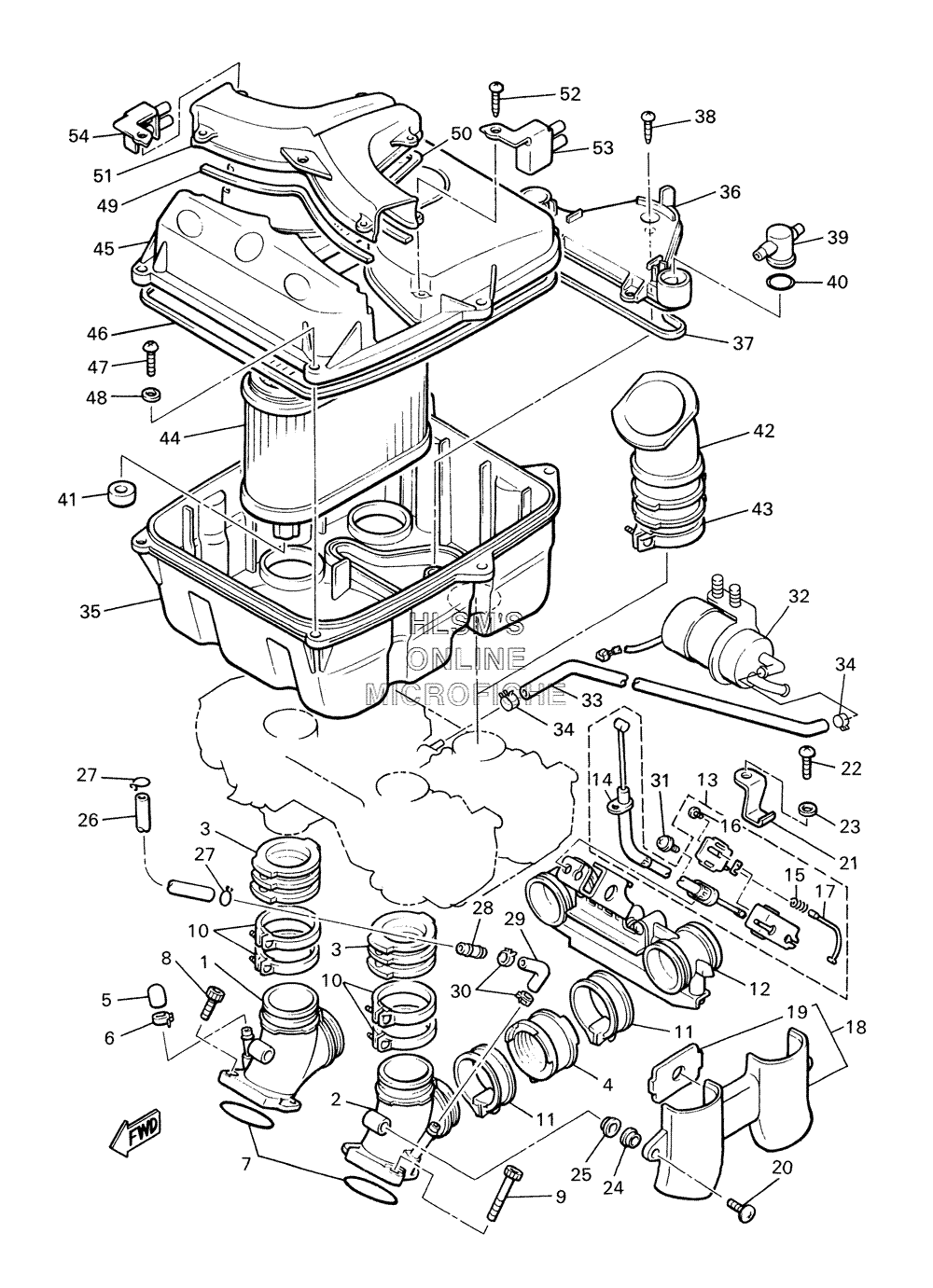

AIR CLEANER W/ INTAKE для Yamaha V-MAX - 2006 года выпуска`
-
№АртикулНазвание
-
11FK-13586-00-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
21FK-13596-00-00 JOINT, CARBURETOR 2JOINT, CARBURETOR 2
-
31FK-13597-00-00 JOINT, CARBURETOR 3JOINT, CARBURETOR 3
-
41FK-13595-01-00 JOINTJOINT
-
516G-13569-00-00 PLUG, BLINDPLUG, BLIND
-
690467-10039-00 CLIP, SCISSORCLIP, SCISSOR
-
793210-45578-00 O-RINGO-RING
-
891317-06020-00 BOLTBOLT
-
991314-06016-00 BOLTBOLT
-
101AE-13575-01-00 BANDBAND
-
1190460-49274-00 CLAMP, HOSECLAMP, HOSE
-
121UT-13510-00-00 VALVE ASSY.VALVE ASSY.
-
131FK-1130E-00-00 CABLE PULLEY ASSYCABLE PULLEY ASSY
-
141FK-1133E-00-00 ...CABLE, PULLEY 1...CABLE, PULLEY 1
-
1590501-06585-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
1692017-05010-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
171FK-1133F-00-00 ...CABLE, PULLEY 2...CABLE, PULLEY 2
-
181FK-13550-00-00 VALVE COVER ASS'YVALVE COVER ASS'Y
-
191FK-13593-00-00 ...DAMPER...DAMPER
-
2090154-06033-00 SCREW, BINDINGSCREW, BINDING
-
2190462-20149-00 CLAMPCLAMP
-
2298507-05010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2392907-05600-00 WASHER, PLATEWASHER, PLATE
-
2490480-13018-00 GROMMETGROMMET
-
2590387-06500-00 COLLARCOLLAR
-
2690445-08715-00 HOSE (L150)HOSE (L150)
-
2790467-08021-00 CLIP, SCISSORCLIP, SCISSOR
-
2841R-14489-00-00 NOZZLENOZZLE
-
2990445-090A9-00 HOSE (L90)HOSE (L90)
-
3090467-08092-00 CLIP, SCISSORCLIP, SCISSOR
-
3190159-05119-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
321FK-13907-01-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
3390445-120E7-00 HOSE (L220)HOSE (L220)
-
3490467-10135-00 CLIP, SCISSORCLIP, SCISSOR
-
351FK-14411-01-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
361FK-14417-00-00 COVER 1COVER 1
-
371AE-14452-00-00 SEALSEAL
-
3897707-50114-00 SCREW, TAPPINGSCREW, TAPPING
-
391FK-14454-00-00 JOINTJOINT
-
4093210-22382-00 O-RINGO-RING
-
411FK-1445E-00-00 FILTER 1FILTER 1
-
421FK-14453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
4390460-59211-00 CLAMP, HOSECLAMP, HOSE
-
441FK-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
451FK-14412-00-00 CAP, CLEANER CASE 1CAP, CLEANER CASE 1
-
461FK-14452-00-00 SEALSEAL
-
4798507-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
4892907-05600-00 WASHER, PLATEWASHER, PLATE
-
491FK-14457-00-00 SEALSEAL
-
501FK-14467-00-00 SEALSEAL
-
511FK-14437-00-00 DUCTDUCT
-
5297707-50114-00 SCREW, TAPPINGSCREW, TAPPING
-
531FK-14413-00-00 STAYSTAY
-
541FK-14414-00-00 STAY 2STAY 2
