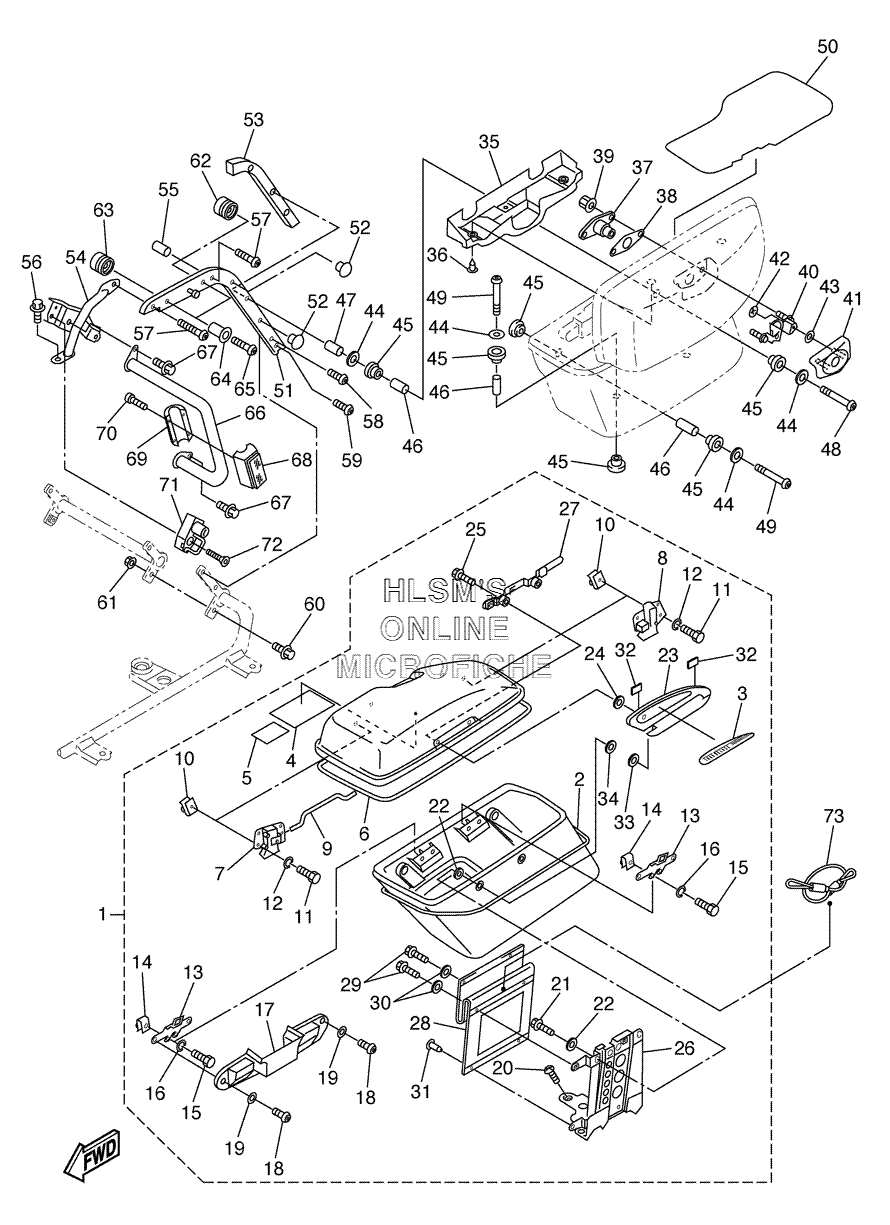

SADDLEBAG 1 для Yamaha ROYAL STAR TOUR DELUXE - 2006 года выпуска`
-
№АртикулНазвание
-
14XY-Y2843-2H-P2 SADDLEBAG COMP, 1 (BWC1)SADDLEBAG COMP, 1 (BWC1)
-
21D6-2840G-20-00 ...SADDLEBAG GRAPHIC SET...SADDLEBAG GRAPHIC SET
-
31D6-2847A-10-00 ...ORNAMENT 1...ORNAMENT 1
-
41D6-28446-00-00 ...LABEL, CAUTION...LABEL, CAUTION
-
54NK-21668-A0-00 ...LABEL, TIRE...LABEL, TIRE
-
64XY-28428-00-00 ...SEAL 1...SEAL 1
-
74XY-28494-00-00 ...HOOK 3...HOOK 3
-
84XY-28495-00-00 ...HOOK 4...HOOK 4
-
94XY-2841A-00-00 ...LEVER...LEVER
-
1090183-05024-00 ...NUT, SPRING...NUT, SPRING
-
1197007-05012-00 ...BOLT...BOLT
-
1292907-05600-00 ...WASHER, PLATE...WASHER, PLATE
-
134XY-28498-00-00 ...HOOK 2...HOOK 2
-
1490183-05024-00 ...NUT, SPRING...NUT, SPRING
-
1597007-05016-00 ...BOLT...BOLT
-
1692907-05600-00 ...WASHER, PLATE...WASHER, PLATE
-
174XY-2843J-00-00 ...COVER 3...COVER 3
-
1892017-05008-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
1992907-05600-00 ...WASHER, PLATE...WASHER, PLATE
-
2097707-50020-00 ...SCREW, TAPPING...SCREW, TAPPING
-
2192017-05014-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
2290201-054K4-00 ...WASHER, PLATE...WASHER, PLATE
-
234XY-28444-10-00 ...HINGE 1...HINGE 1
-
2490202-08125-00 ...WASHER, PLATE...WASHER, PLATE
-
2592017-05020-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
264XY-28427-00-00 ...REINFORCEMENT 1...REINFORCEMENT 1
-
274XY-2847H-00-00 ...PLATE 5...PLATE 5
-
284XY-2845B-00-00 ...STOPPER, OPEN...STOPPER, OPEN
-
2992017-05014-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
3092907-05600-00 ...WASHER, PLATE...WASHER, PLATE
-
3190269-05039-00 ...RIVET...RIVET
-
324XY-28499-00-00 ...PLATE, RUBBER 4...PLATE, RUBBER 4
-
3390201-08326-00 ...WASHER, PLATE...WASHER, PLATE
-
344XY-28429-00-00 ...SEAL 2...SEAL 2
-
354XY-2849K-00-00 COVER LOCK ASSY 2COVER LOCK ASSY 2
-
3690269-06081-00 RIVETRIVET
-
374XY-W2843-00-00 LOCK ASS'Y 3LOCK ASS'Y 3
-
384XY-2845J-00-00 PLATE, RUBBER 5PLATE, RUBBER 5
-
3995607-05200-00 NUT, U FLANGENUT, U FLANGE
-
404XY-2849H-00-00 PLATE 6PLATE 6
-
414XY-2842A-00-00 COVER 5COVER 5
-
4290183-04005-00 NUT, SPRINGNUT, SPRING
-
434KJ-28371-00-00 DAMPERDAMPER
-
4490201-065G8-00 WASHER, PLATEWASHER, PLATE
-
4590480-20447-00 GROMMETGROMMET
-
4690387-084R5-00 COLLARCOLLAR
-
4790387-0811N-00 COLLARCOLLAR
-
4892017-06055-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
4992017-06035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
504XY-2848K-00-00 SEAT 2SEAT 2
-
511D6-28473-00-00 FRAME, SADDLEBAG 1FRAME, SADDLEBAG 1
-
5290338-07259-00 PLUGPLUG
-
531D6-28415-00-00 DAMPER 1DAMPER 1
-
541D6-28413-00-00 STAY, FRONT GUARD 1STAY, FRONT GUARD 1
-
5590387-0811N-00 COLLARCOLLAR
-
5695807-08014-00 BOLT, FLANGEBOLT, FLANGE
-
5790111-08021-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
5892014-08016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
5992014-08020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
6095827-08016-00 BOLT, FLANGEBOLT, FLANGE
-
6195307-08800-00 NUTNUT
-
621D6-2843A-00-00 DAMPER, GRIPDAMPER, GRIP
-
631D6-2843N-00-00 DAMPER, GRIP 2DAMPER, GRIP 2
-
6490387-08029-00 COLLARCOLLAR
-
6590111-08014-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
664XY-2841K-00-00 GUARD, SADDLEBAG 1GUARD, SADDLEBAG 1
-
6795814-08016-00 BOLT, FLANGEBOLT, FLANGE
-
684YE-85131-00-00 REFLECTOR, REAR 1REFLECTOR, REAR 1
-
694YE-85132-00-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
7097707-30514-00 SCREW, TAPPINGSCREW, TAPPING
-
714R8-21398-00-00 HANGER, HELMETHANGER, HELMET
-
7290151-06018-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
734HC-21398-00-00 HANGER, HELMETHANGER, HELMET
