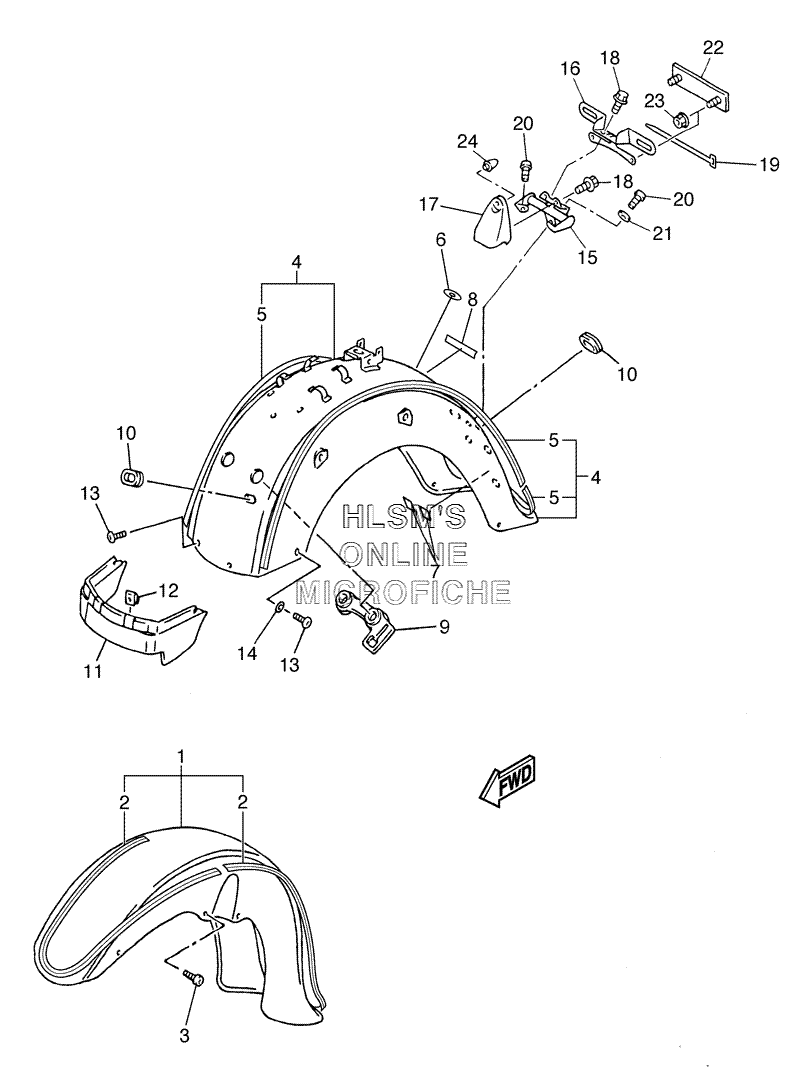

FENDER - FRONT / REAR для Yamaha ROYAL STAR TOUR DELUXE - 2006 года выпуска`
-
№АртикулНазвание
-
14NK-Y2150-L0-P0 FRONT FENDER ASSY (BWC1)FRONT FENDER ASSY (BWC1)
-
21D6-21570-20-00 ...GRAPHIC SET, FRONT FENDER...GRAPHIC SET, FRONT FENDER
-
391314-08025-00 BOLTBOLT
-
45EJ-Y2161-70-P0 REAR FENDER COMP. (BWC1)REAR FENDER COMP. (BWC1)
-
51D6-2165A-20-00 ......GRAPHIC SET, REAR FENDER......GRAPHIC SET, REAR FENDER
-
64NK-21735-00-00 SEAL 2SEAL 2
-
73MA-27491-00-00 PROTECTORPROTECTOR
-
81D6-2153E-00-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
94NK-21649-00-00 DAMPERDAMPER
-
1090480-15061-00 GROMMETGROMMET
-
114NK-21621-00-P8 FLAP (BWC1)FLAP (BWC1)
-
1290183-06053-00 NUT, SPRINGNUT, SPRING
-
1390110-06200-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1490202-06170-00 WASHER, PLATEWASHER, PLATE
-
154XY-2317W-00-00 STAY, 9STAY, 9
-
165BN-84751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
171D6-84703-00-00 BRACKETBRACKET
-
1895027-06010-00 BOLT, FLANGEBOLT, FLANGE
-
1990464-25002-00 CLAMPCLAMP
-
2095024-06012-00 BOLT, FLANGEBOLT, FLANGE
-
2190201-06043-00 WASHER, PLATEWASHER, PLATE
-
221FK-85130-00-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
2395707-05500-00 NUT, FLANGENUT, FLANGE
-
2442U-21639-00-00 DAMPER 2DAMPER 2
