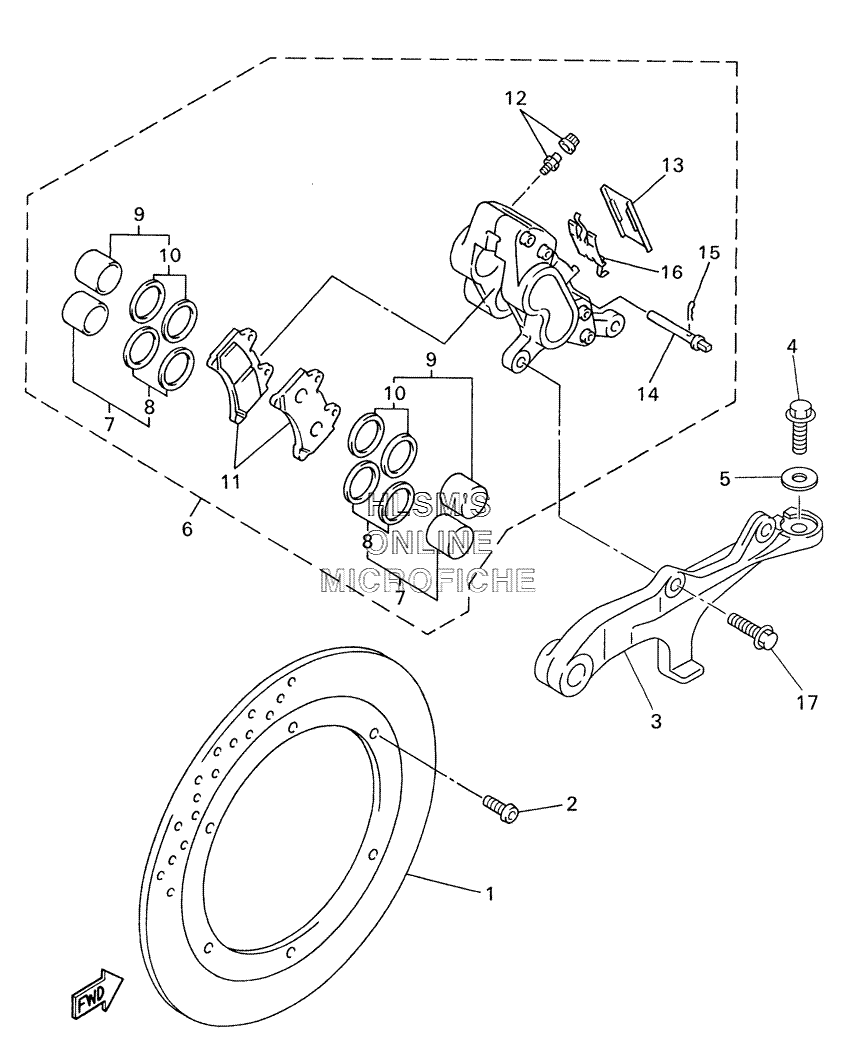

BRAKE - REAR CALIPER для Yamaha ROYAL STAR TOUR DELUXE - 2006 года выпуска`
-
№АртикулНазвание
-
14NK-2582W-00-00 DISK, REAR BRAKE 2DISK, REAR BRAKE 2
-
290109-083G4-00 BOLTBOLT
-
34XY-25819-00-00 BRACKET, CALIPERBRACKET, CALIPER
-
495024-10030-00 BOLT, FLANGEBOLT, FLANGE
-
590201-10437-00 WASHER, PLATEWASHER, PLATE
-
64NK-2580W-00-00 CALIPER ASSY, REAR 2CALIPER ASSY, REAR 2
-
71KT-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
81KT-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
94NK-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
104NK-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
114NK-W0046-00-00 ...BRAKE PAD KIT 2...BRAKE PAD KIT 2
-
121J3-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
131NL-25836-00-00 ...COVER, DUST...COVER, DUST
-
143HE-25924-00-00 ...PIN, PAD...PIN, PAD
-
153GM-25925-00-00 ...CLIP...CLIP
-
161NL-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
1790105-10638-00 BOLT, WASHER BASEDBOLT, WASHER BASED
