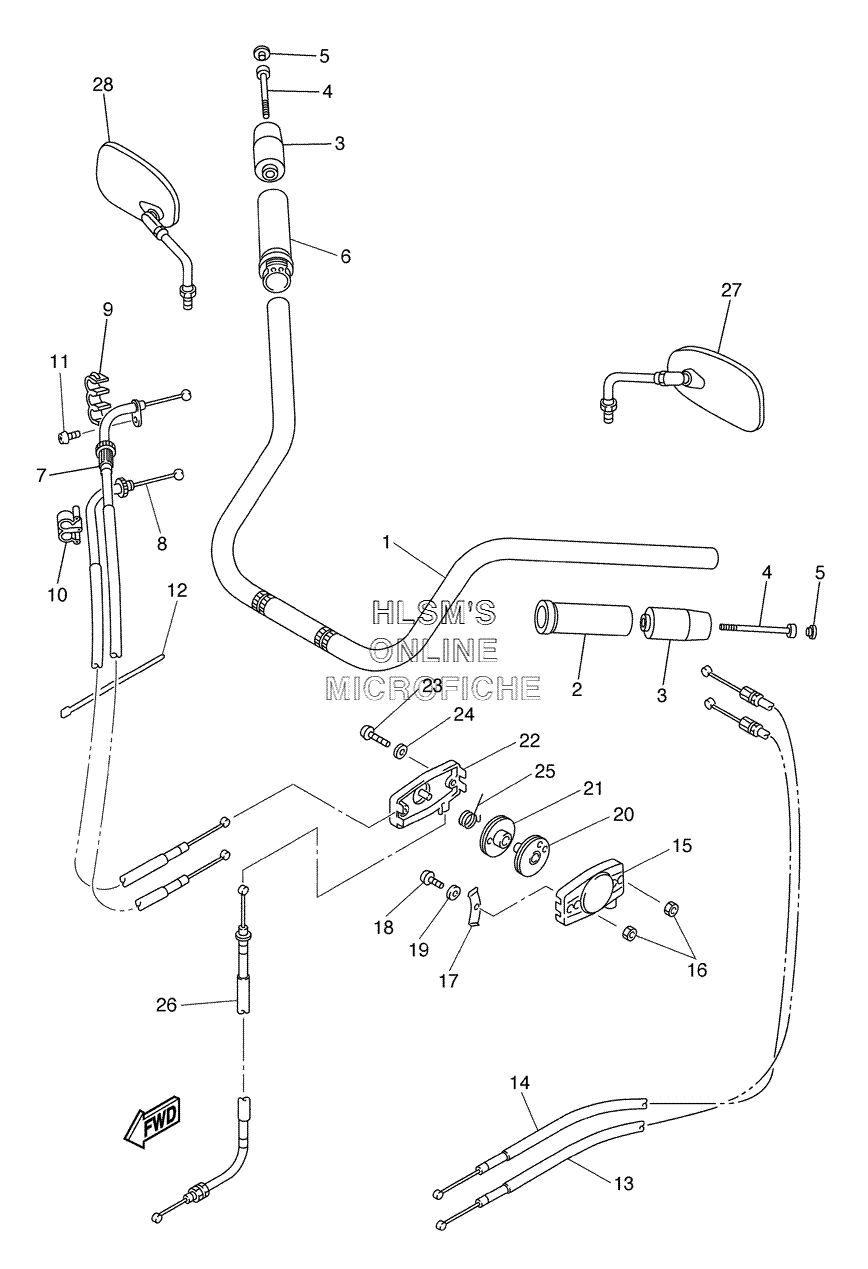

HANDLEBAR W/ CABLES для Yamaha ROYAL STAR TOUR DELUXE - 2006 года выпуска`
-
№АртикулНазвание
-
11D6-26110-00-00 HANDLE COMP.HANDLE COMP.
-
24NK-26241-00-00 GRIP (LEFT)GRIP (LEFT)
-
31D6-26246-00-00 END, GRIPEND, GRIP
-
490110-06123-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
590338-06162-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
64XY-26240-00-00 GRIP ASSYGRIP ASSY
-
71D6-26311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
81D6-26312-00-00 CABLE, THROTTLE 2CABLE, THROTTLE 2
-
990468-07179-00 CLIPCLIP
-
1090468-15139-00 CLIPCLIP
-
1198507-05008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1290464-16061-00 CLAMPCLAMP
-
134XY-26313-00-00 CABLE, THROTTLE 3CABLE, THROTTLE 3
-
144XY-2631J-00-00 CABLE, THROTTLE 4CABLE, THROTTLE 4
-
1541V-2629A-00-00 HOUSING COMP.HOUSING COMP.
-
1695607-05100-00 NUT, UNUT, U
-
1741V-2627E-00-00 CLAMP,WIRECLAMP,WIRE
-
1898507-05014-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1992907-05600-00 WASHER, PLATEWASHER, PLATE
-
2041V-26273-00-00 ROTORROTOR
-
2141V-2627A-00-00 ROTOR 2ROTOR 2
-
2241V-2629G-01-00 HOUSING 2HOUSING 2
-
2398507-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2492907-05600-00 WASHER, PLATEWASHER, PLATE
-
2541V-2629L-00-00 SPRING, TORSIONSPRING, TORSION
-
264XY-2637E-00-00 CABLE, CONTROL 1CABLE, CONTROL 1
-
274NK-26280-00-00 REAR VIEW MIRROR ASSY (LEFT)REAR VIEW MIRROR ASSY (LEFT)
-
284NK-26290-00-00 REAR VIEW MIRROR ASSY (RIGHT)REAR VIEW MIRROR ASSY (RIGHT)
