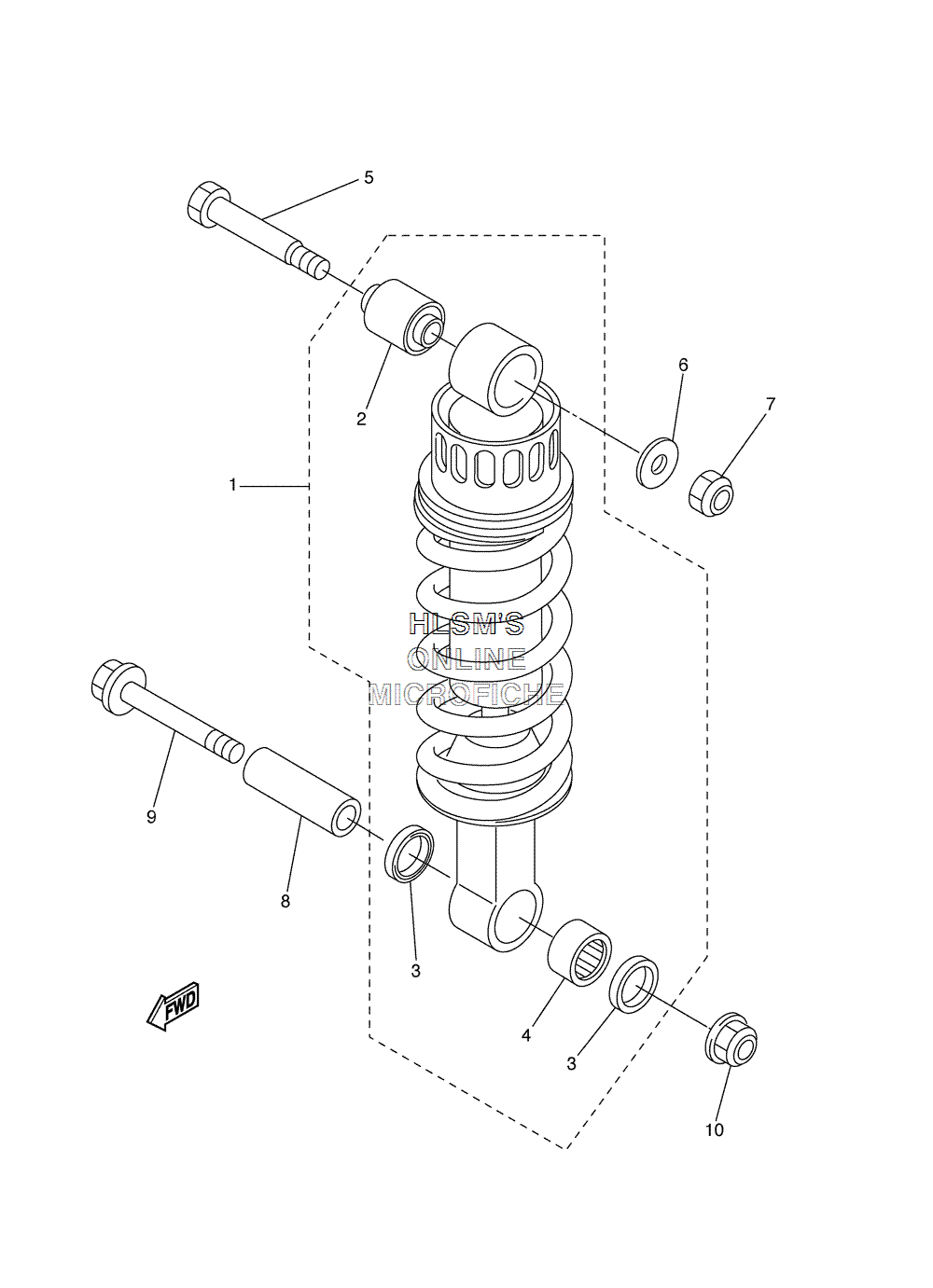

SUSPENSION - REAR SHOCK ABSORBER для Yamaha FZ6 - 2006 года выпуска`
-
№АртикулНазвание
-
15VX-22210-10-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
234L-22216-00-00 ...BUSH, REAR SHOCK ABSORBER...BUSH, REAR SHOCK ABSORBER
-
393109-17071-00 ...OIL SEAL...OIL SEAL
-
493315-31758-00 ...BEARING...BEARING
-
590109-10654-00 BOLTBOLT
-
690201-101J1-00 WASHER, PLATEWASHER, PLATE
-
795607-10100-00 NUT, UNUT, U
-
890387-1012B-00 COLLARCOLLAR
-
990105-10323-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1095607-10200-00 NUT, U FLANGENUT, U FLANGE
