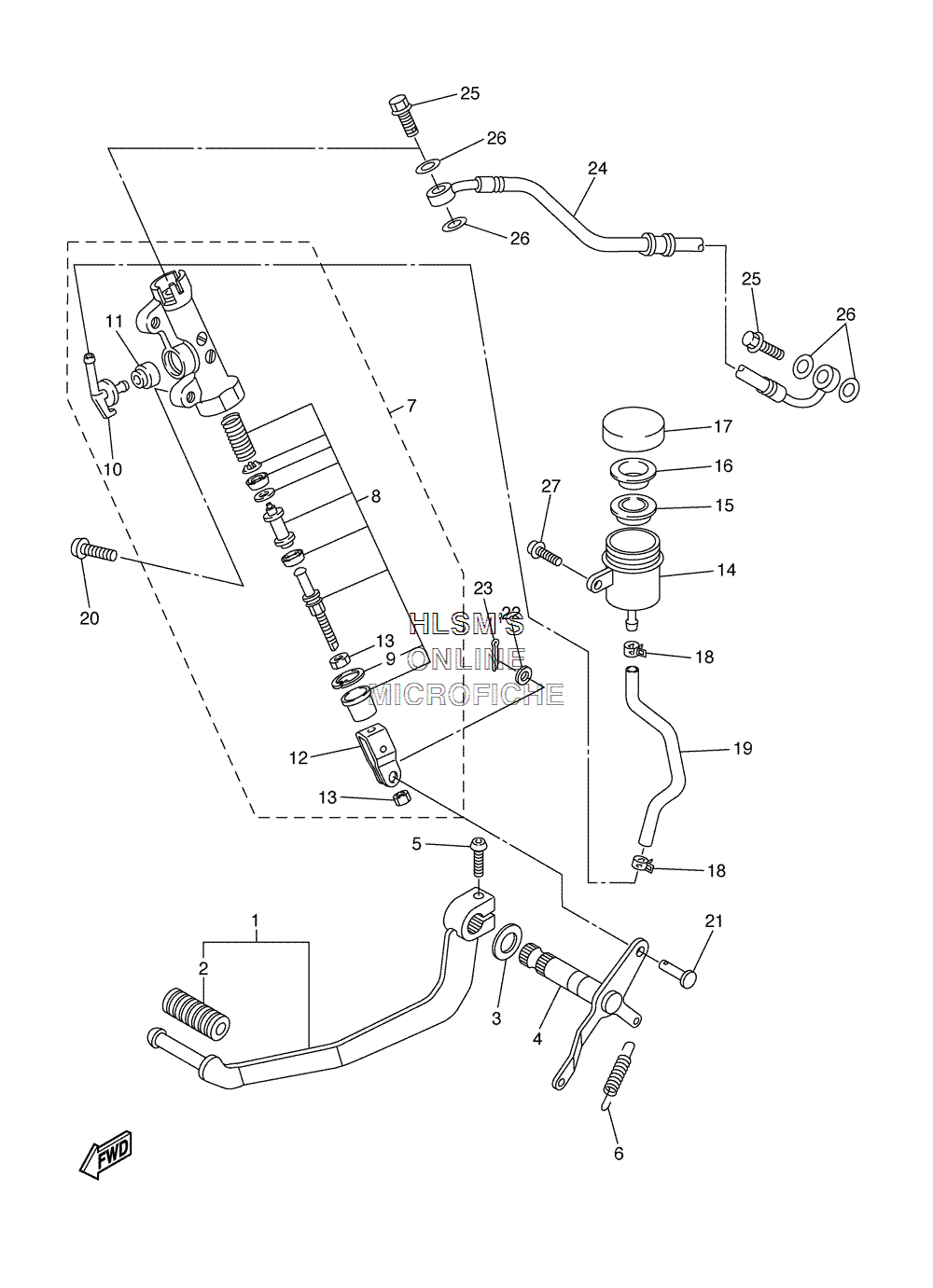

BRAKE - REAR MASTER CYLINDER для Yamaha FZ6 - 2006 года выпуска`
-
№АртикулНазвание
-
15VX-27200-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
25EB-18113-00-00 ...COVER, SHIFT PEDAL...COVER, SHIFT PEDAL
-
390201-14215-00 WASHER, PLATEWASHER, PLATE
-
45VX-27212-00-00 SHAFT, BRAKE PEDALSHAFT, BRAKE PEDAL
-
592014-06020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
690506-20223-00 SPRING, TENSIONSPRING, TENSION
-
75VX-2583V-00-00 RR. MASTER CYLINDER ASSY.RR. MASTER CYLINDER ASSY.
-
85VX-W0042-50-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
93LN-2585G-00-00 ...CIRCLIP...CIRCLIP
-
105VX-2582A-00-00 ...JOINT...JOINT
-
114BP-2585F-00-00 ...BUSH...BUSH
-
124BP-27222-01-00 ...JOINT...JOINT
-
1390170-08010-00 ...NUT...NUT
-
145SL-25894-00-00 TANK, RESERVOIRTANK, RESERVOIR
-
155SL-25854-00-00 DIAPHRAGM, RESERVOIRDIAPHRAGM, RESERVOIR
-
165SL-25855-00-00 BUSH, DIAPHRAGMBUSH, DIAPHRAGM
-
175SL-25852-00-00 CAP, RESERVOIRCAP, RESERVOIR
-
1890467-090A1-00 CLIPCLIP
-
195VX-25895-00-00 HOSE, RESERVOIRHOSE, RESERVOIR
-
2092014-08020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2190240-08124-00 PIN, CLEVISPIN, CLEVIS
-
2290201-08083-00 WASHER, PLATEWASHER, PLATE
-
2391401-20012-00 PIN, COTTERPIN, COTTER
-
245VX-2581K-01-00 HOSE, BRAKE 5HOSE, BRAKE 5
-
2590401-10159-00 BOLT, UNIONBOLT, UNION
-
2690201-10118-00 WASHER, PLATEWASHER, PLATE
-
2790119-06044-00 BOLT, WITH WASHERBOLT, WITH WASHER
