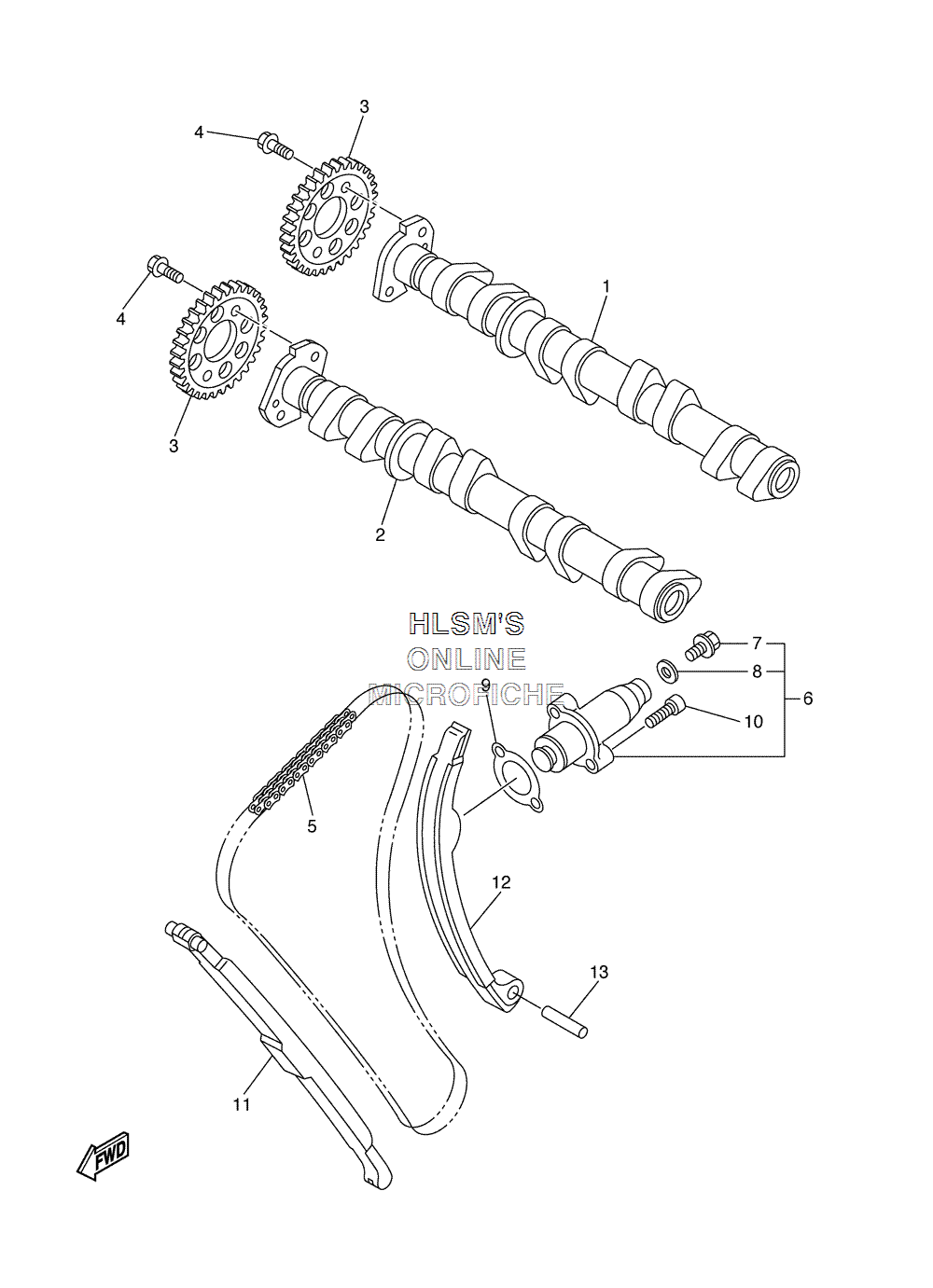

CAMSHAFT W/ CHAIN для Yamaha FZ6 - 2006 года выпуска`
-
№АртикулНазвание
-
15VX-12170-00-00 CAMSHAFT ASSY 1CAMSHAFT ASSY 1
-
25VX-12180-00-00 CAMSHAFT ASSY 2CAMSHAFT ASSY 2
-
35VX-12176-00-00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
490105-07004-00 BOLT, FLANGEBOLT, FLANGE
-
594591-49120-00 CHAINCHAIN
-
65SL-12210-10-00 TENSIONER ASSY, CAM CHAINTENSIONER ASSY, CAM CHAIN
-
75EL-12228-00-00 ...BOLT...BOLT
-
85SL-12214-00-00 ...GASKET...GASKET
-
94FM-12213-00-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
-
1091314-06025-00 BOLTBOLT
-
115EB-12251-00-00 DAMPER, CHAIN 1DAMPER, CHAIN 1
-
125EB-12252-10-00 DAMPER, CHAIN 2DAMPER, CHAIN 2
-
1393607-44190-00 PIN, DOWELPIN, DOWEL
