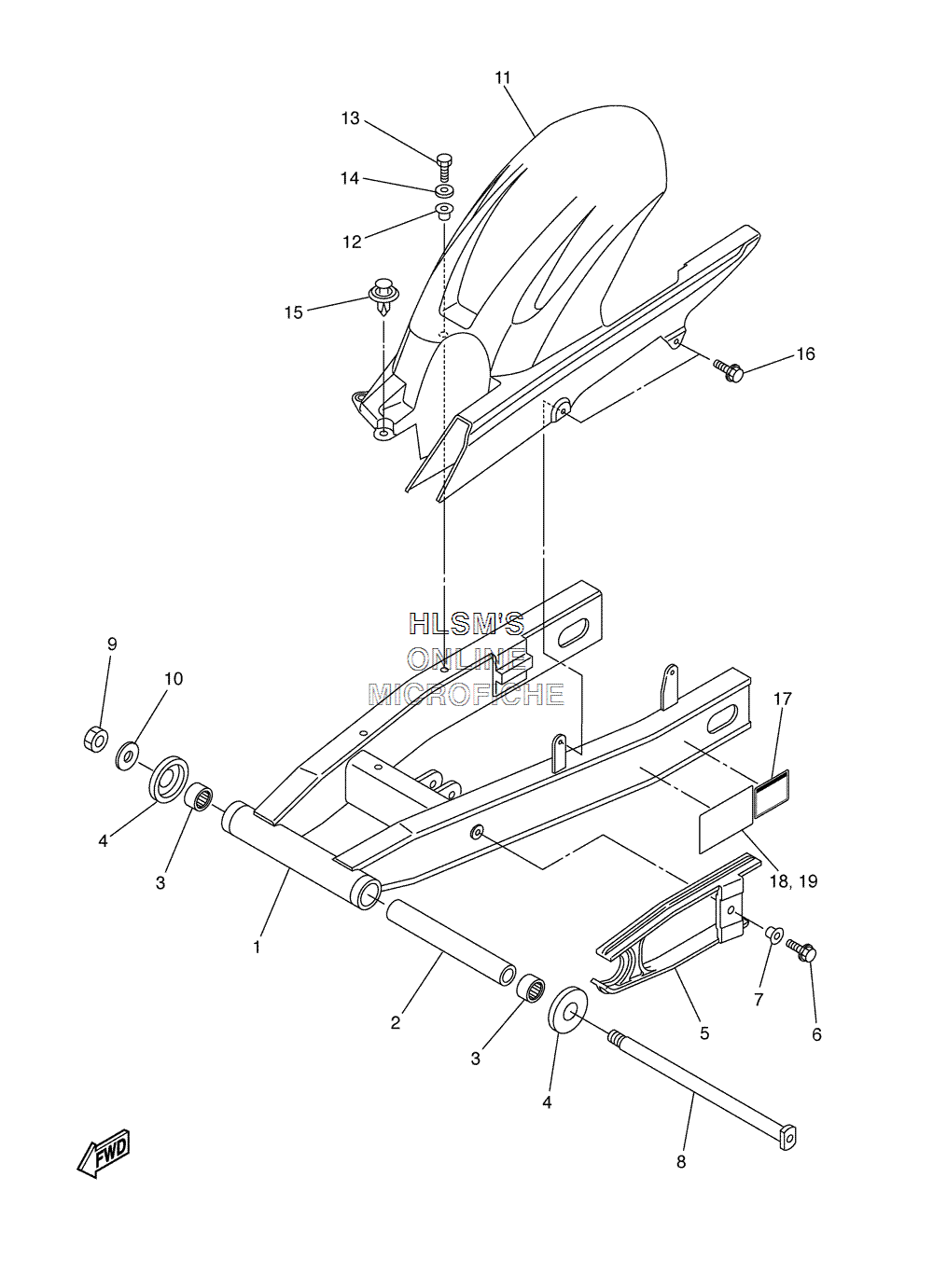

SUSPENSION - REAR ARM для Yamaha FZ6 - 2006 года выпуска`
-
№АртикулНазвание
-
15VX-22110-20-00 REAR ARM COMP.REAR ARM COMP.
-
25EB-22184-00-00 BUSHBUSH
-
393315-42523-00 BEARING, CYL.#15BEARING, CYL.#15
-
45JJ-22128-00-00 COVER, THRUST 1COVER, THRUST 1
-
55VX-22151-00-00 SEAL, GUARDSEAL, GUARD
-
690119-06096-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
790387-06372-00 COLLARCOLLAR
-
84FN-22141-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
990185-18104-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1090201-186M4-00 WASHER, PLATEWASHER, PLATE
-
115VX-21650-00-00 REAR FENDER COMP.REAR FENDER COMP.
-
1290387-064J1-00 COLLARCOLLAR
-
1397007-06025-00 BOLTBOLT
-
1492907-06600-00 WASHER, PLATEWASHER, PLATE
-
1590269-08001-00 RIVETRIVET
-
1690119-06117-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
173XW-21668-A0-00 LABEL, TIRELABEL, TIRE
-
185VX-2179R-20-00 PLATE, EPA 2 (CALIF. ONLY)PLATE, EPA 2 (CALIF. ONLY)
-
195VX-2179W-20-00 PLATE, EPA (EXCEPT CALIF.)PLATE, EPA (EXCEPT CALIF.)
