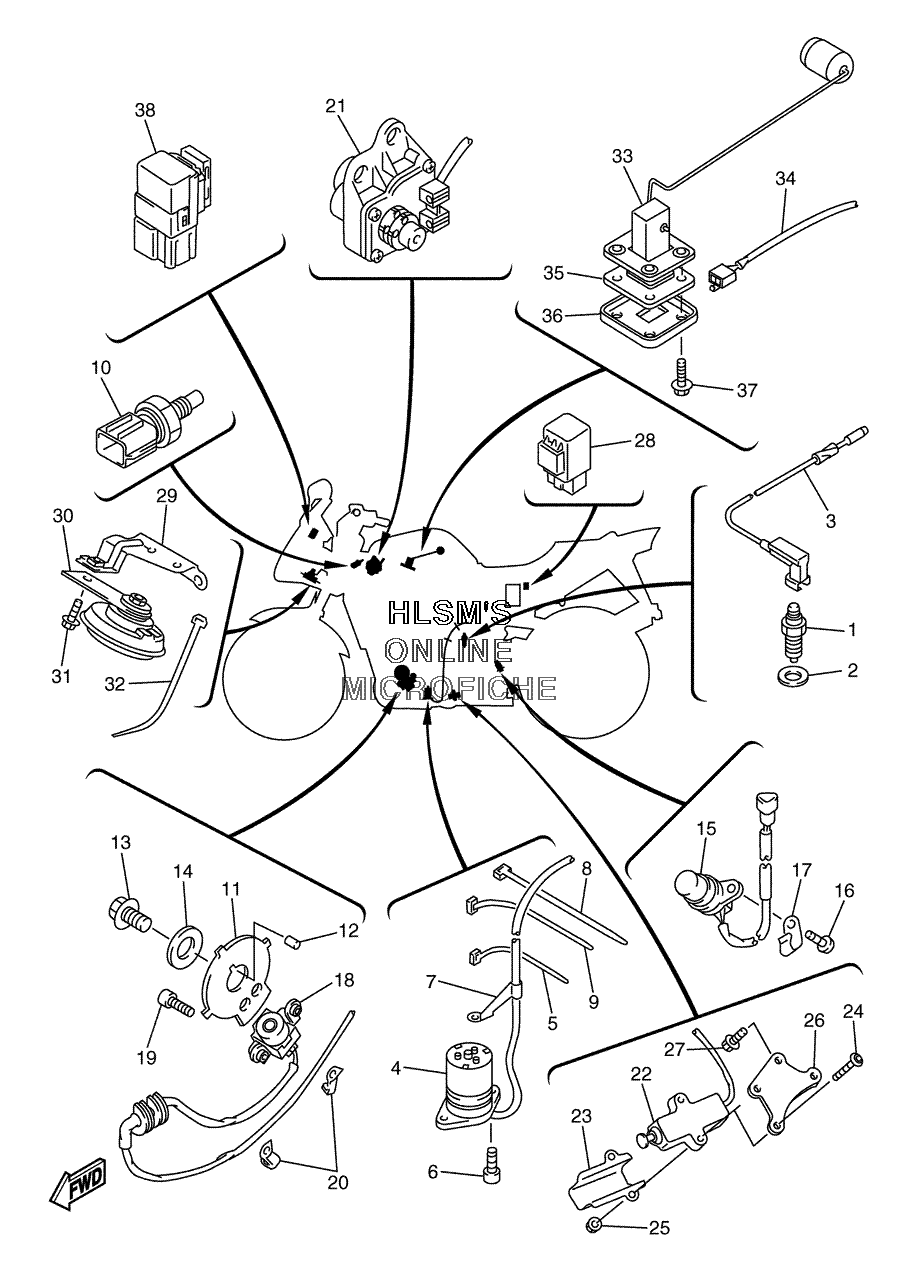

ELECTRICAL 2 для Yamaha FZ1 - 2005 года выпуска`
-
№АртикулНазвание
-
13GB-82540-01-00 NEUTRAL SWITCH ASSY.NEUTRAL SWITCH ASSY.
-
290430-10148-00 GASKETGASKET
-
35LV-82541-00-00 WIRE, LEADWIRE, LEAD
-
45LV-85720-01-00 OIL LEVEL GAUGE ASSY.OIL LEVEL GAUGE ASSY.
-
55Y9-12491-00-00 CLAMP 1CLAMP 1
-
691317-06014-00 BOLTBOLT
-
790465-08013-00 CLAMPCLAMP
-
890464-13073-00 CLAMPCLAMP
-
990464-13077-00 CLAMPCLAMP
-
105JJ-83591-00-00 THERMO UNITTHERMO UNIT
-
114XV-81673-00-00 ROTORROTOR
-
1293604-29151-00 PIN, DOWELPIN, DOWEL
-
1390105-10290-00 BOLT, FLANGEBOLT, FLANGE
-
1490201-107K6-00 WASHER, PLATEWASHER, PLATE
-
155LV-83755-01-00 SENSOR, SPEEDSENSOR, SPEED
-
1691317-06014-00 BOLTBOLT
-
1790465-08028-00 CLAMPCLAMP
-
185LV-81670-01-00 PICK-UP ASSY.PICK-UP ASSY.
-
1990110-06018-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2090465-08191-00 CLAMPCLAMP
-
215LV-85820-00-00 SERVO MOTOR ASSY.SERVO MOTOR ASSY.
-
225EB-82566-01-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
235JJ-82388-00-00 PLATEPLATE
-
2492017-05025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2595607-05200-00 NUT, U FLANGENUT, U FLANGE
-
265LV-8252H-00-00 PLATEPLATE
-
2790105-06020-00 BOLT, FLANGEBOLT, FLANGE
-
283GM-83350-01-00 FLASHER RELAY ASSY.FLASHER RELAY ASSY.
-
295LV-23377-00-00 BRACKET, HORNBRACKET, HORN
-
304KM-83371-00-00 HORNHORN
-
3195807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
3290464-15195-00 CLAMPCLAMP
-
335LV-85752-00-00 SENDER UNIT ASSY., FUEL METERSENDER UNIT ASSY., FUEL METER
-
345LV-82509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
354US-85753-00-00 GASKET, SENDER UNITGASKET, SENDER UNIT
-
362JG-85757-00-00 RETAINERRETAINER
-
3790119-05071-00 BOLT, WITH WASHERBOLT, WITH WASHER
