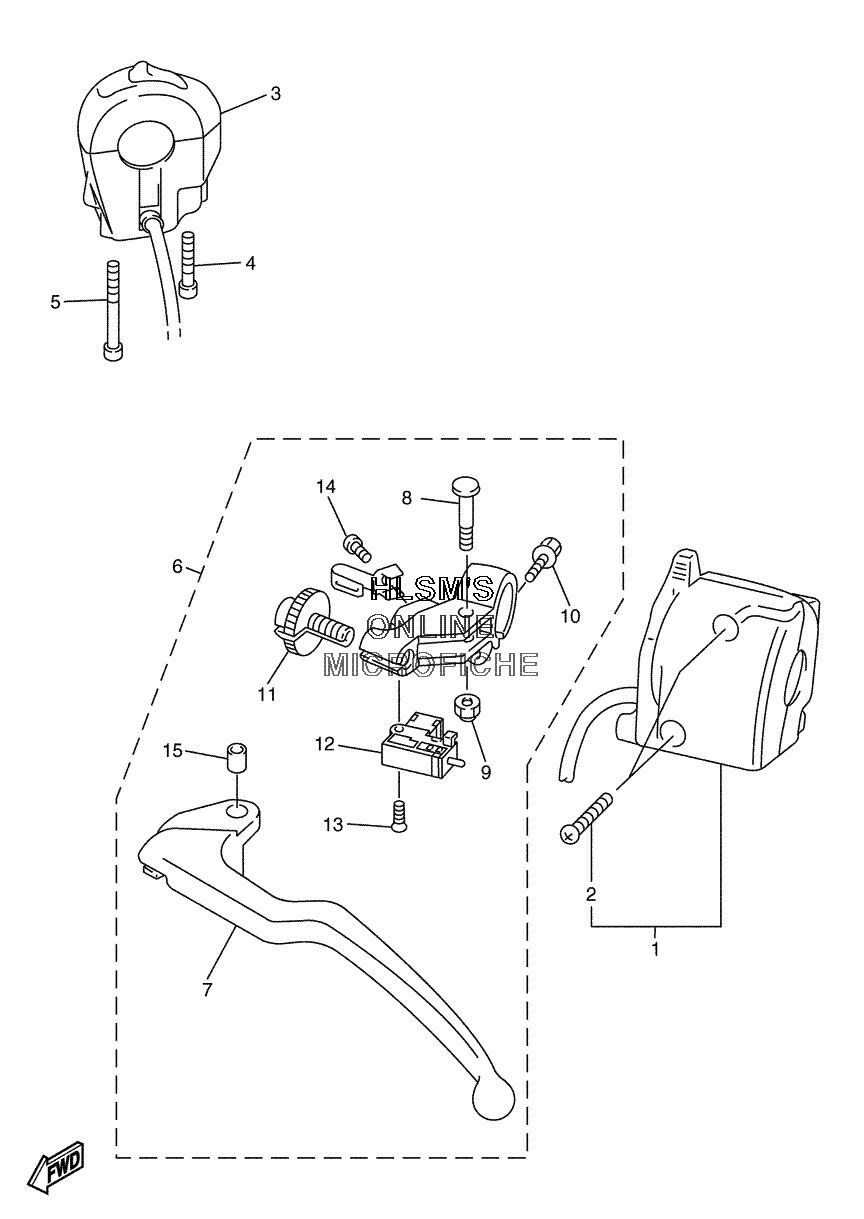

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha FZ1 - 2005 года выпуска`
-
№АртикулНазвание
-
15LV-83973-00-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
-
298507-05025-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
35LV-83975-02-00 SWITCH, HANDLE 2SWITCH, HANDLE 2
-
491317-05030-00 BOLTBOLT
-
591317-05050-00 BOLTBOLT
-
65LV-82910-01-00 LEVER HOLDER ASSY. (LEFT)LEVER HOLDER ASSY. (LEFT)
-
74XV-83912-11-00 ...LEVER 1...LEVER 1
-
84XV-83945-00-00 ...BOLT, LEVER...BOLT, LEVER
-
995607-06100-00 ...NUT, U...NUT, U
-
1095027-06020-00 ...BOLT, FLANGE...BOLT, FLANGE
-
115LV-83951-00-00 ...BOLT, CABLE ADJUSTING...BOLT, CABLE ADJUSTING
-
123YX-82917-01-00 ...SWITCH...SWITCH
-
1398704-03020-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
1498507-04010-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
155JJ-83913-00-00 ...COLLAR, LEVER 1...COLLAR, LEVER 1
