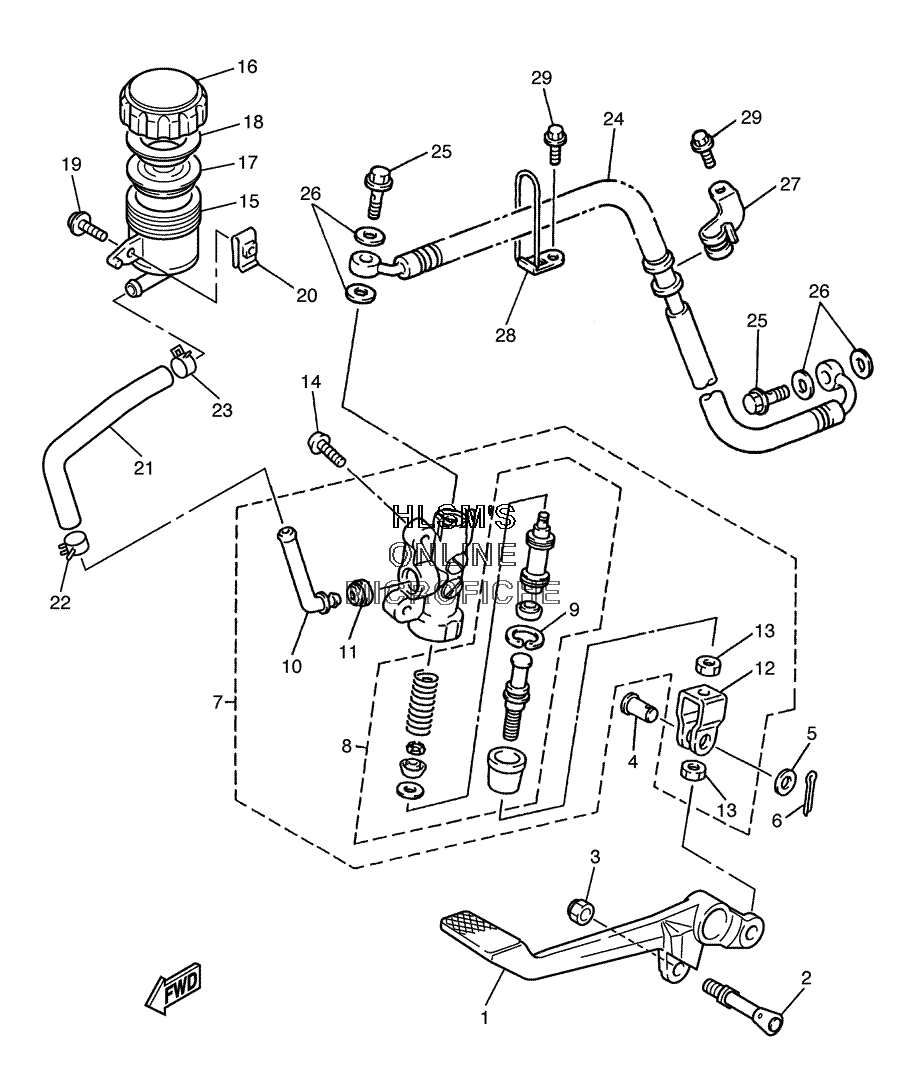

BRAKE - REAR MASTER CYLINDER для Yamaha FZ1 - 2005 года выпуска`
-
№АртикулНазвание
-
15LV-27211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
25LV-27813-00-00 PIN, PEDAL CRANKPIN, PEDAL CRANK
-
395604-08100-00 NUT, UNUT, U
-
490240-08124-00 PIN, CLEVISPIN, CLEVIS
-
590201-08083-00 WASHER, PLATEWASHER, PLATE
-
691401-20012-00 PIN, COTTERPIN, COTTER
-
74BP-2583V-01-00 RR. MASTER CYLINDER ASSY.RR. MASTER CYLINDER ASSY.
-
84BP-W0042-50-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
93LN-2585G-00-00 ......CIRCLIP......CIRCLIP
-
104BP-2582A-00-00 ...JOINT...JOINT
-
114BP-2585F-00-00 ...BUSH...BUSH
-
124BP-27222-01-00 ...JOINT...JOINT
-
1390170-08010-00 ...NUT...NUT
-
1492014-08020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1547X-25894-00-00 TANK, RESERVOIRTANK, RESERVOIR
-
162KF-25852-50-00 CAP, RESERVOIRCAP, RESERVOIR
-
17360-25854-01-00 DIAPHRAGM, RESERVOIRDIAPHRAGM, RESERVOIR
-
182GU-25855-00-00 BUSH, DIAPHRAGMBUSH, DIAPHRAGM
-
1990119-06M50-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2090183-06053-00 NUT, SPRINGNUT, SPRING
-
215LV-25895-00-00 HOSE, RESERVOIRHOSE, RESERVOIR
-
2290467-14057-00 CLIP, SCISSORCLIP, SCISSOR
-
2390467-130A3-00 CLIPCLIP
-
245LV-2581K-01-00 HOSE, BRAKE 5HOSE, BRAKE 5
-
2590401-10159-00 BOLT, UNIONBOLT, UNION
-
2690201-10118-00 WASHER, PLATEWASHER, PLATE
-
274FM-25876-01-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
284BH-25886-02-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
2995827-06010-00 BOLT, FLANGEBOLT, FLANGE
