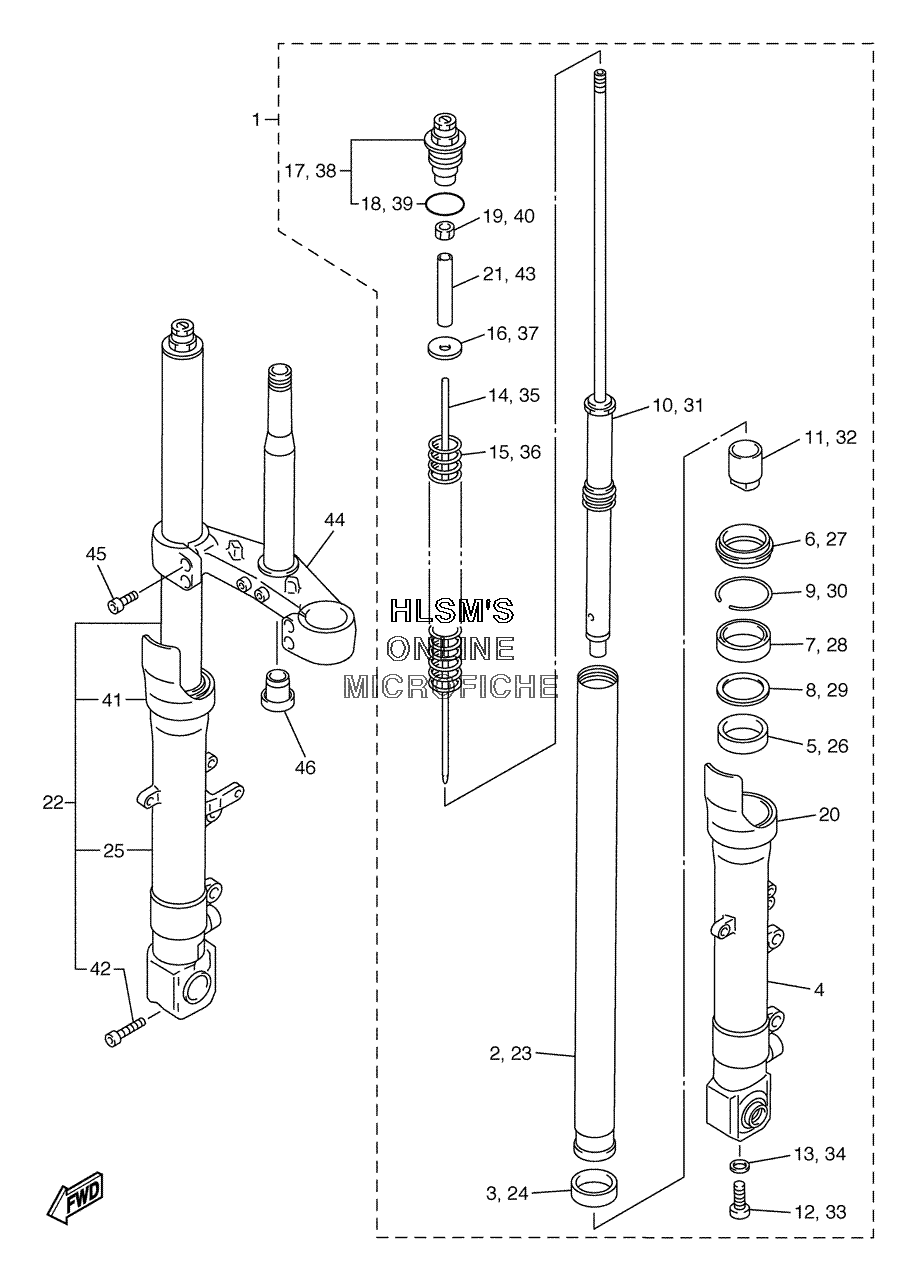

SUSPENSION - FRONT FORK для Yamaha FZ1 - 2005 года выпуска`
-
№АртикулНазвание
-
15LV-23102-10-00 FRONT FORK ASSY. (L.H)FRONT FORK ASSY. (L.H)
-
25LV-23110-00-00 ...INNER TUBE COMP. 1...INNER TUBE COMP. 1
-
34TX-23135-A0-00 ...METAL, SLIDE 2...METAL, SLIDE 2
-
45LV-23106-00-00 ...OUTER TUBE COMP. (L.H)...OUTER TUBE COMP. (L.H)
-
54TX-23125-A0-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
64TX-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
75VX-23145-00-00 ...OIL SEAL...OIL SEAL
-
84TX-23115-00-00 ...GUIDE, COVER UPPER...GUIDE, COVER UPPER
-
94TX-23156-00-00 ...CLIP, OIL SEAL...CLIP, OIL SEAL
-
105LV-23170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
115LV-23173-00-00 ...SPINDLE, TAPER...SPINDLE, TAPER
-
1290110-10N52-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
1390430-10171-00 ...GASKET...GASKET
-
145LV-2318Y-00-00 ...PLUNGER...PLUNGER
-
155LV-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
1690201-10321-00 ...WASHER, PLATE...WASHER, PLATE
-
175LV-23111-10-00 ...BOLT, CAP...BOLT, CAP
-
1893210-34504-00 ......O-RING......O-RING
-
1995307-10600-00 ...NUT...NUT
-
204TX-2331G-00-00 ...COVER...COVER
-
215LV-23118-00-00 ...SPACER...SPACER
-
225LV-23103-10-00 FRONT FORK ASSY. (R.H)FRONT FORK ASSY. (R.H)
-
235LV-23110-00-00 ......INNER TUBE COMP. 1......INNER TUBE COMP. 1
-
244TX-23135-A0-00 ...METAL, SLIDE 2...METAL, SLIDE 2
-
255LV-23107-00-00 ...OUTER TUBE COMP. (R.H)...OUTER TUBE COMP. (R.H)
-
264TX-23125-A0-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
274TX-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
285VX-23145-00-00 ...OIL SEAL...OIL SEAL
-
294TX-23115-00-00 ...GUIDE, COVER UPPER...GUIDE, COVER UPPER
-
304TX-23156-00-00 ...CLIP, OIL SEAL...CLIP, OIL SEAL
-
315LV-23170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
325LV-23173-00-00 ...SPINDLE, TAPER...SPINDLE, TAPER
-
3390110-10N52-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
3490430-10171-00 ...GASKET...GASKET
-
355LV-2318Y-00-00 ...PLUNGER...PLUNGER
-
365LV-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
3790201-10321-00 ...WASHER, PLATE...WASHER, PLATE
-
385LV-23111-10-00 ...BOLT, CAP...BOLT, CAP
-
3993210-34504-00 ......O-RING......O-RING
-
4095307-10600-00 ...NUT...NUT
-
414TX-2331G-00-00 ...COVER...COVER
-
4291314-08045-00 ...BOLT...BOLT
-
435LV-23118-00-00 ...SPACER...SPACER
-
445LV-23340-00-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
4591314-08025-00 BOLTBOLT
-
464KM-23123-01-00 COVER, LOWER 1COVER, LOWER 1
