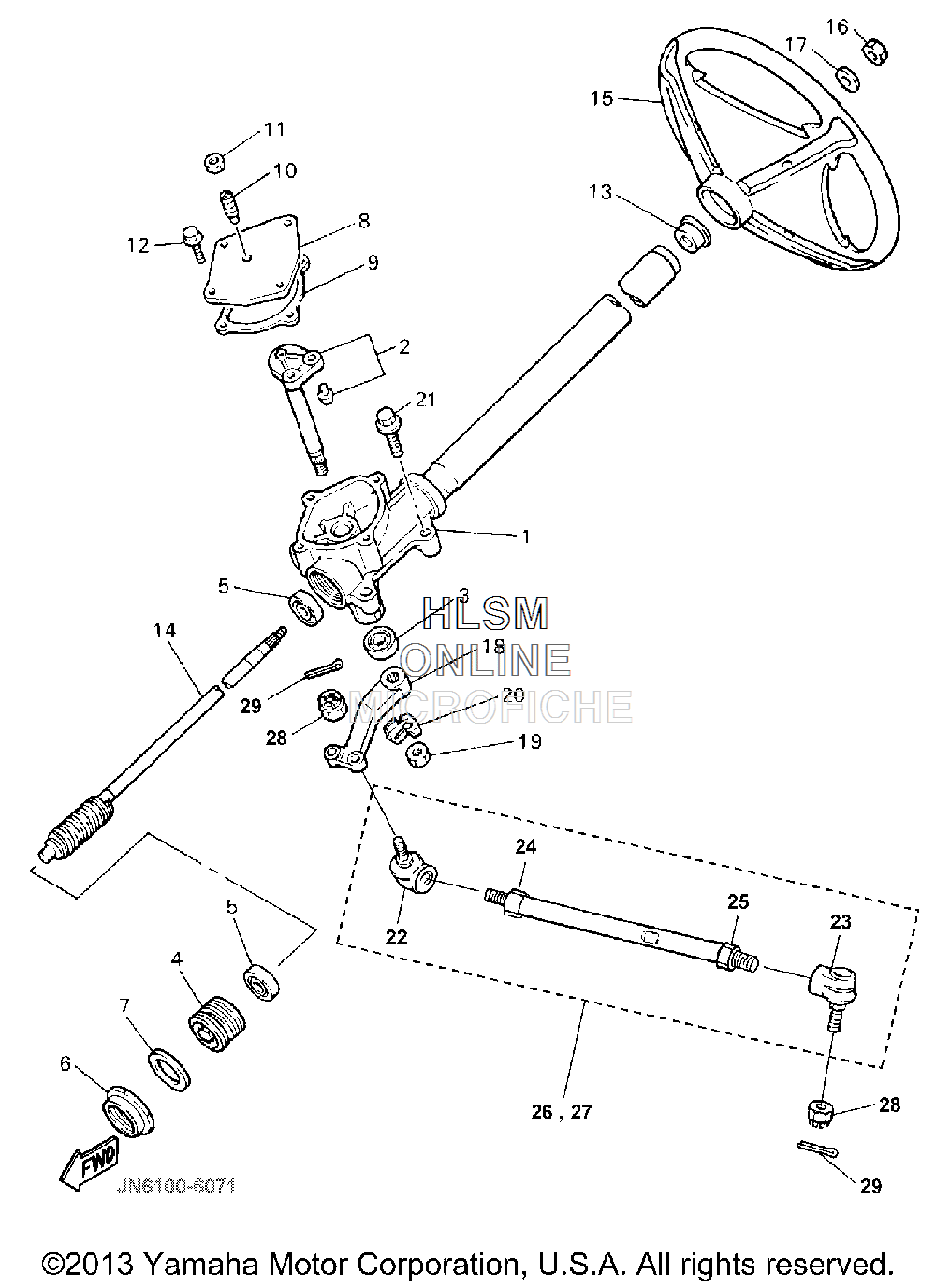

STEERING для Yamaha GOLF CAR GAS [G14AP] (JN3) - 1996 года выпуска
-
№АртикулНазвание
-
1JG5-F3811-00-00 COLUMN, STEERINGCOLUMN, STEERING
-
2J38-23816-00-00 ARM, PITMANARM, PITMAN
-
393102-22314-00 SEAL, OILSEAL, OIL
-
4J55-F3876-00-00 BOLTBOLT
-
593332-000Y2-00 BEARINGBEARING
-
6J10-23877-00-00 NUTNUT
-
7J10-23444-00-00 WASHERWASHER
-
8JN3-F3818-00-00 COVER, STEERINGCOVER, STEERING
-
9J38-23462-00-00 SEAL, STEERINGSEAL, STEERING
-
10J10-23459-00-00 BOLTBOLT
-
1190170-08024-00 NUT, HEXNUT, HEX
-
1295817-06020-00 BOLT, FLANGEBOLT, FLANGE
-
13JN3-F3814-00-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
14J10-23840-00-00 STEERING SHAFT ASSEMBLYSTEERING SHAFT ASSEMBLY
-
15JN3-F3838-00-00 WHEEL, STEERINGWHEEL, STEERING
-
1690185-12119-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1792907-12200-00 WASHERWASHER
-
18J38-23826-01-00 ARM, IDLERARM, IDLER
-
1995707-16300-00 NUT, NYLONNUT, NYLON
-
2090215-16252-00 WASHER, TONGUEWASHER, TONGUE
-
2195817-10050-00 BOLT, FLANGEBOLT, FLANGE
-
22JN6-F3841-00-00 UNIVERSAL JOINT (RH THREAD)UNIVERSAL JOINT (RH THREAD)
-
23JN6-F3845-00-00 UNIVERSAL JOINT (LH THREAD)UNIVERSAL JOINT (LH THREAD)
-
2495607-10200-00 NUT, U FLANGENUT, U FLANGE
-
2590170-12054-00 NUTNUT
-
26JN6-F3830-11-00 TIE ROD ASSEMBLY, LEFTTIE ROD ASSEMBLY, LEFT
-
27JN6-F3850-11-00 TIE ROD ASSEMBLY, RIGHTTIE ROD ASSEMBLY, RIGHT
-
2895617-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2991490-25020-00 PIN. COTTERPIN. COTTER
