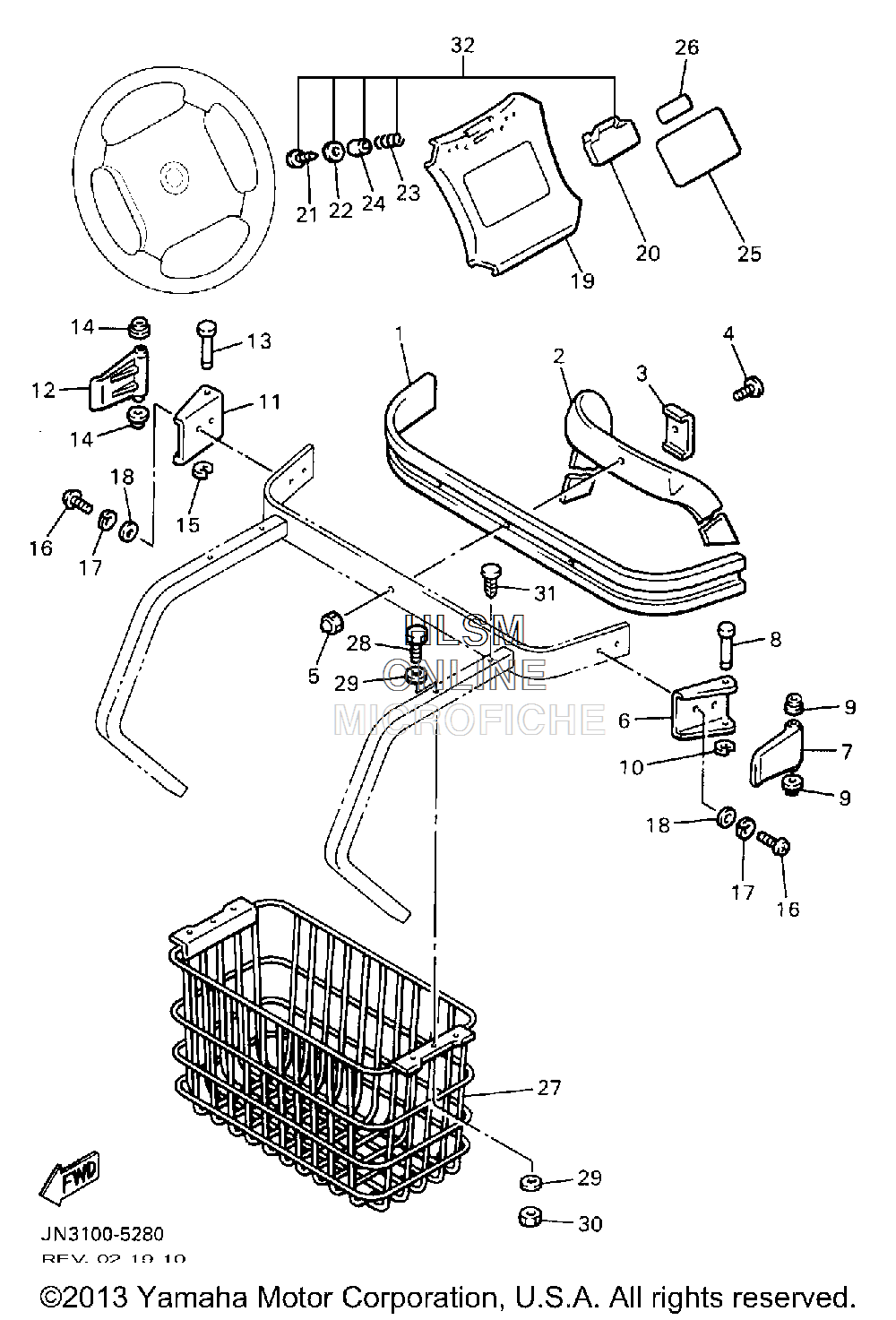

CARRIER для Yamaha GOLF CAR GAS [G14AP] (JN3) - 1996 года выпуска`
-
№АртикулНазвание
-
1JF2-K8356-00-00 PAD, BAG SUPPORTPAD, BAG SUPPORT
-
2JF2-K8355-00-00 BANDBAND
-
3J38-78367-00-00 PLATE, ANCHORPLATE, ANCHOR
-
498980-06016-00 SCREW, BINDSCREW, BIND
-
595380-06800-00 NUTNUT
-
6J17-78157-01-00 BASE, LOCKBASE, LOCK
-
7J17-78368-01-00 LEVER, LOCKLEVER, LOCK
-
8J17-78369-00-00 PIN, LEVERPIN, LEVER
-
990386-06108-00 BUSHBUSH
-
1099080-05600-00 CIRCLIPCIRCLIP
-
11J17-78157-01-00 BASE, LOCKBASE, LOCK
-
12J17-78368-01-00 LEVER, LOCKLEVER, LOCK
-
13J17-78369-00-00 PIN, LEVERPIN, LEVER
-
1490386-06108-00 BUSHBUSH
-
1599080-05600-00 CIRCLIPCIRCLIP
-
1698580-06010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1792995-06100-00 WASHER, SPRINGWASHER, SPRING
-
1892990-06200-00 WASHER, PLAINWASHER, PLAIN
-
19JN3-K8357-00-00 HOLDER 1HOLDER 1
-
20J55-K8358-00-00 HOLDER 2HOLDER 2
-
2197707-40625-00 SCREW, TAPPINGSCREW, TAPPING
-
2290201-044H9-00 WASHER, PLATEWASHER, PLATE
-
2390502-10013-00 SPRING, CONICALSPRING, CONICAL
-
2490387-046N7-00 COLLARCOLLAR
-
25JN3-K7762-01-00 LABEL, WARNINGLABEL, WARNING
-
26JN3-K7141-00-00 EMBLEM 1EMBLEM 1
-
27JN3-K8340-00-00 LUGGAGE RACKLUGGAGE RACK
-
2890111-08803-00 BOLTBOLT
-
2990201-08103-00 WASHER, PLATEWASHER, PLATE
-
3095680-08100-00 NUT, UNUT, U
-
3190338-09828-00 PLUGPLUG
-
32JN6-W001D-00-00 SCORE CARD HOLDER KITSCORE CARD HOLDER KIT
