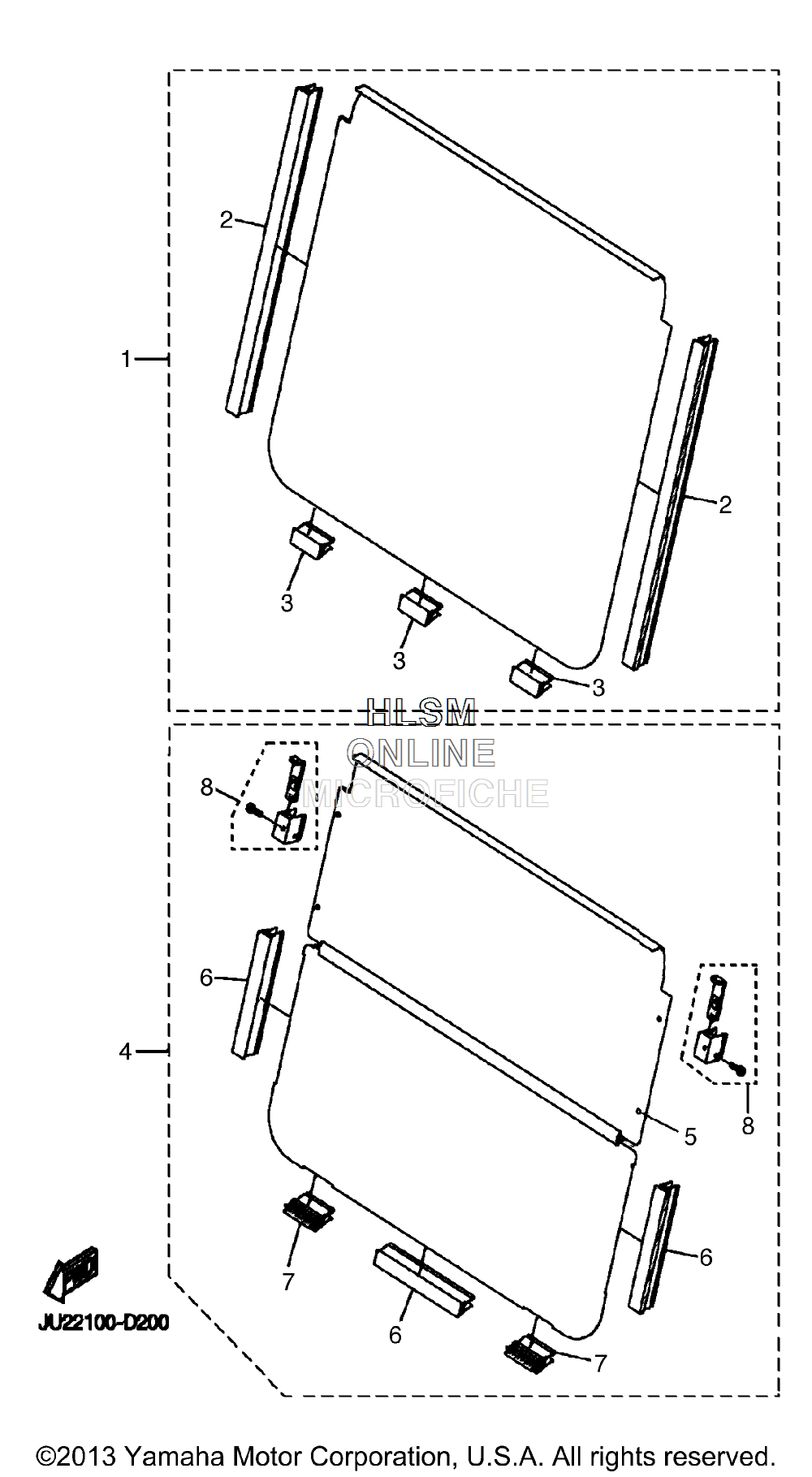

OPTIONAL WINDSHIELD JN6 для Yamaha GOLF CAR GAS [G14AP] (JN3) - 1996 года выпуска`
-
№АртикулНазвание
-
1JN6-K7200-00-00 WIINDSHIELD, CLEAR 1 PIECE (OPT) (RED) (JN6 SUNTOP REQUIRED)WIINDSHIELD, CLEAR 1 PIECE (OPT) (RED) (JN6 SUNTOP REQUIRED)
-
2JU0-K838C-00-00 ...HOLDER SHIELD (29 INCHES)...HOLDER SHIELD (29 INCHES)
-
3JU0-K8383A-10-00 ...FASTNER, 2...FASTNER, 2
-
4JN6-K7200-22-00 WINDSHIELD ASSY, (HINGED, CLEAR) (OPT) (RED) (JN6 SUNTOP REQUIRED)WINDSHIELD ASSY, (HINGED, CLEAR) (OPT) (RED) (JN6 SUNTOP REQUIRED)
-
4JN6-K7200-32-00 WINDSHIELD ASSY, (HINGED, TINTED) (OPT) (RED) (JN6 SUNTOP REQUIRED)WINDSHIELD ASSY, (HINGED, TINTED) (OPT) (RED) (JN6 SUNTOP REQUIRED)
-
5JU0-K7238-00-00 ...DAMPER, WINDSHIELD...DAMPER, WINDSHIELD
-
6JU0-K838B-00-00 ...RETAINER 2 (10 INCHES)...RETAINER 2 (10 INCHES)
-
7JU0-K7222-01-00 ...BRACKET, WINDSHIELD (R.H) (2 INCHES)...BRACKET, WINDSHIELD (R.H) (2 INCHES)
-
8JU0-K722E-00-00 ...LATCH, SLIDE...LATCH, SLIDE
