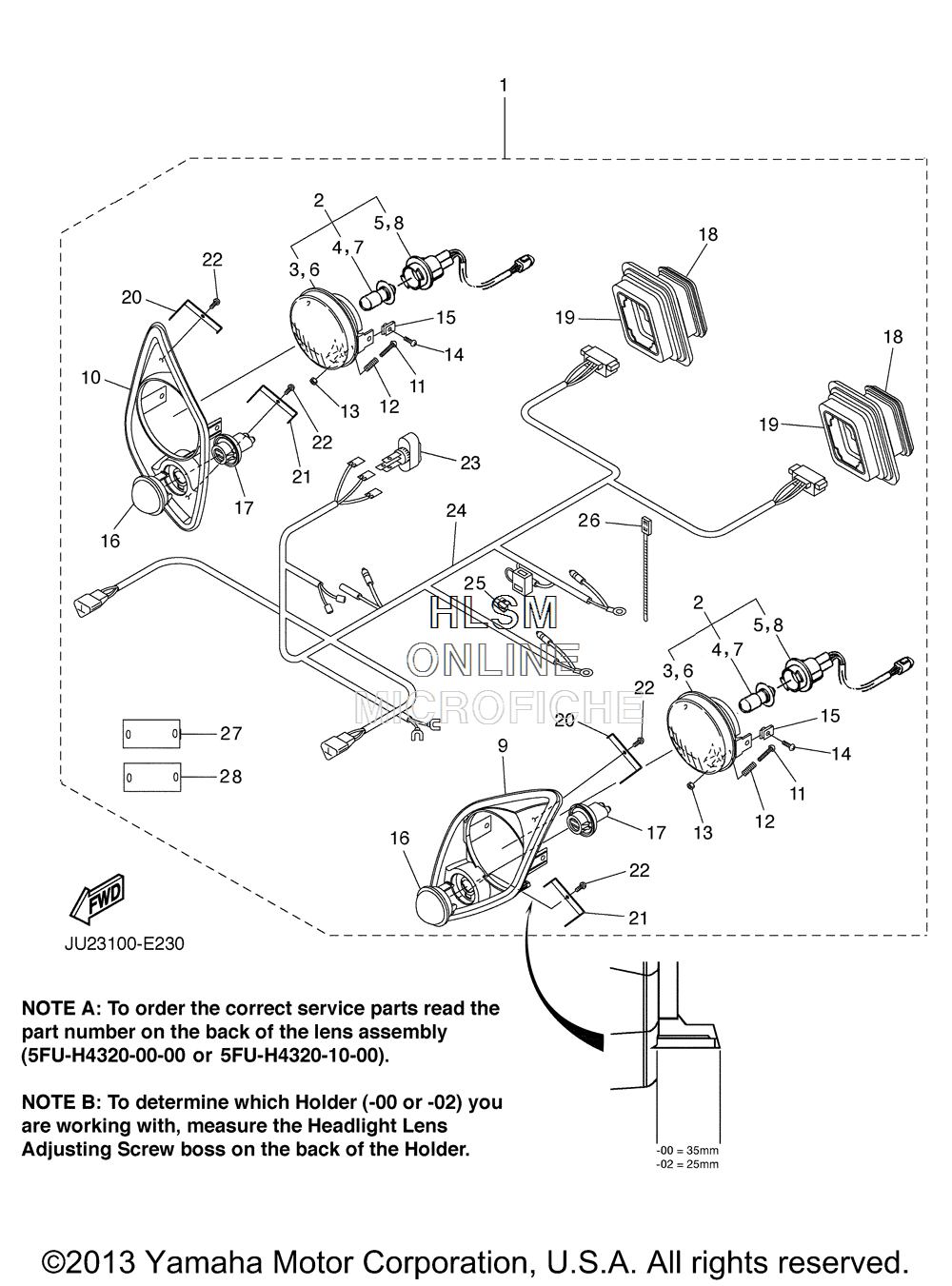

OPTIONAL LIGHT KIT STREAMLINE JU0 для Yamaha GOLF CAR GAS [G14AP] (JN3) - 1996 года выпуска

  • №
    Артикул
    Название
  • 1
    JU0-H430A-00-00 HEADLIGHT UNIT ASSY
    HEADLIGHT UNIT ASSY
  • 2
    5FU-H4300-10-00 ...HEADLIGHT ASSY (OPT) (SEE NOTE A)
    ...HEADLIGHT ASSY (OPT) (SEE NOTE A)
  • 2
    5FU-H4300-00-00 ...HEADLIGHT ASSY (OPT) (SEE NOTE A)
    ...HEADLIGHT ASSY (OPT) (SEE NOTE A)
  • 3
    5FU-H4320-00-00 ......LENS ASSY (OPT) (USE WITH -00 ASSY)
    ......LENS ASSY (OPT) (USE WITH -00 ASSY)
  • 4
    5FU-H4314-00-00 ......BULB, HEADLIGHT(12V-30/30W) (OPT) (USE WITH -00 LENS)
    ......BULB, HEADLIGHT(12V-30/30W) (OPT) (USE WITH -00 LENS)
  • 5
    5FU-H4340-00-00 ......SOCKET CORD ASSY 1 (OPT) (USE WITH -00 BULB)
    ......SOCKET CORD ASSY 1 (OPT) (USE WITH -00 BULB)
  • 6
    5FU-H4320-10-00 ......LENS ASSY (OPT) (USE WITH -10 ASSY)
    ......LENS ASSY (OPT) (USE WITH -10 ASSY)
  • 7
    5FU-H4314-10-00 ......BULB, HEADLIGHT (12V-30/30W (OPT) (USE WITH -10 LENS)
    ......BULB, HEADLIGHT (12V-30/30W (OPT) (USE WITH -10 LENS)
  • 8
    5FU-H4340-10-00 ......SOCKET CORD ASSY 1 (OPT) (USE WITH -10 BULB)
    ......SOCKET CORD ASSY 1 (OPT) (USE WITH -10 BULB)
  • 9
    JU7-H411T-02-PC ...HOLDER, 1 (USE WITH 34MM SPRING) (SEE NOTE B)
    ...HOLDER, 1 (USE WITH 34MM SPRING) (SEE NOTE B)
  • 10
    JU7-H411U-02-PC ...HOLDER, 2 (USE WITH 34MM SPRING) (SEE NOTE B)
    ...HOLDER, 2 (USE WITH 34MM SPRING) (SEE NOTE B)
  • 11
    90501-03540-00 ...SCREW, PAN HEAD
    ...SCREW, PAN HEAD
  • 12
    2GU-84332-00-00 ...SPRING, SCREW (OPT) GOLD L=34MM (FOR-02 HOLDER WITH 25MM BOSS)
    ...SPRING, SCREW (OPT) GOLD L=34MM (FOR-02 HOLDER WITH 25MM BOSS)
  • 12
    90501-10060-00 ...SPRING, COMPRESSION (OPT) (BLACK) UR, BLACK L=15MM (FOR-00 HOLDER WITH 35MM BOSS)
    ...SPRING, COMPRESSION (OPT) (BLACK) UR, BLACK L=15MM (FOR-00 HOLDER WITH 35MM BOSS)
  • 13
    2GU-84334-00-00 ...NUT, ADJUSTING
    ...NUT, ADJUSTING
  • 14
    90150-05802-00 ...SCREW, ROUND HEAD
    ...SCREW, ROUND HEAD
  • 15
    90183-05008-00 ...NUT, SPRING
    ...NUT, SPRING
  • 16
    JU7-H5415-00-PC ...MARK, SIGNAL LAMP
    ...MARK, SIGNAL LAMP
  • 17
    JU7-H3547-10-00 ...COVER, SOCKET
    ...COVER, SOCKET
  • 18
    JU5-H4700-00-00 ...TAILLIGHT ASSY (VINYL STRIP)
    ...TAILLIGHT ASSY (VINYL STRIP)
  • 19
    JU5-H4718-00-00 ...GROMMET
    ...GROMMET
  • 20
    JU7-H4118-01-00 ...STAY, HEADLIGHT 1
    ...STAY, HEADLIGHT 1
  • 21
    JU7-H4119-01-00 ...STAY, HEADLIGHT 2
    ...STAY, HEADLIGHT 2
  • 22
    97707-40112-00 ...SCREW, TAPPING
    ...SCREW, TAPPING
  • 23
    JU0-H3976-00-00 ...SWITCH, HANDLE 1
    ...SWITCH, HANDLE 1
  • 24
    JU0-H4159-00-00 ...CORD, HEADLIGHT
    ...CORD, HEADLIGHT
  • 25
    42X-82151-00-00 ......FUSE (10A-BL)
    ......FUSE (10A-BL)
  • 26
    GCA-JU012-51-00 ...CLAMP
    ...CLAMP
  • 27
    GCA-JU012-41-00 ...REFLECTOR, AMBER
    ...REFLECTOR, AMBER
  • 28
    GCA-JU012-42-00 ...REFLECTOR, RED
    ...REFLECTOR, RED
