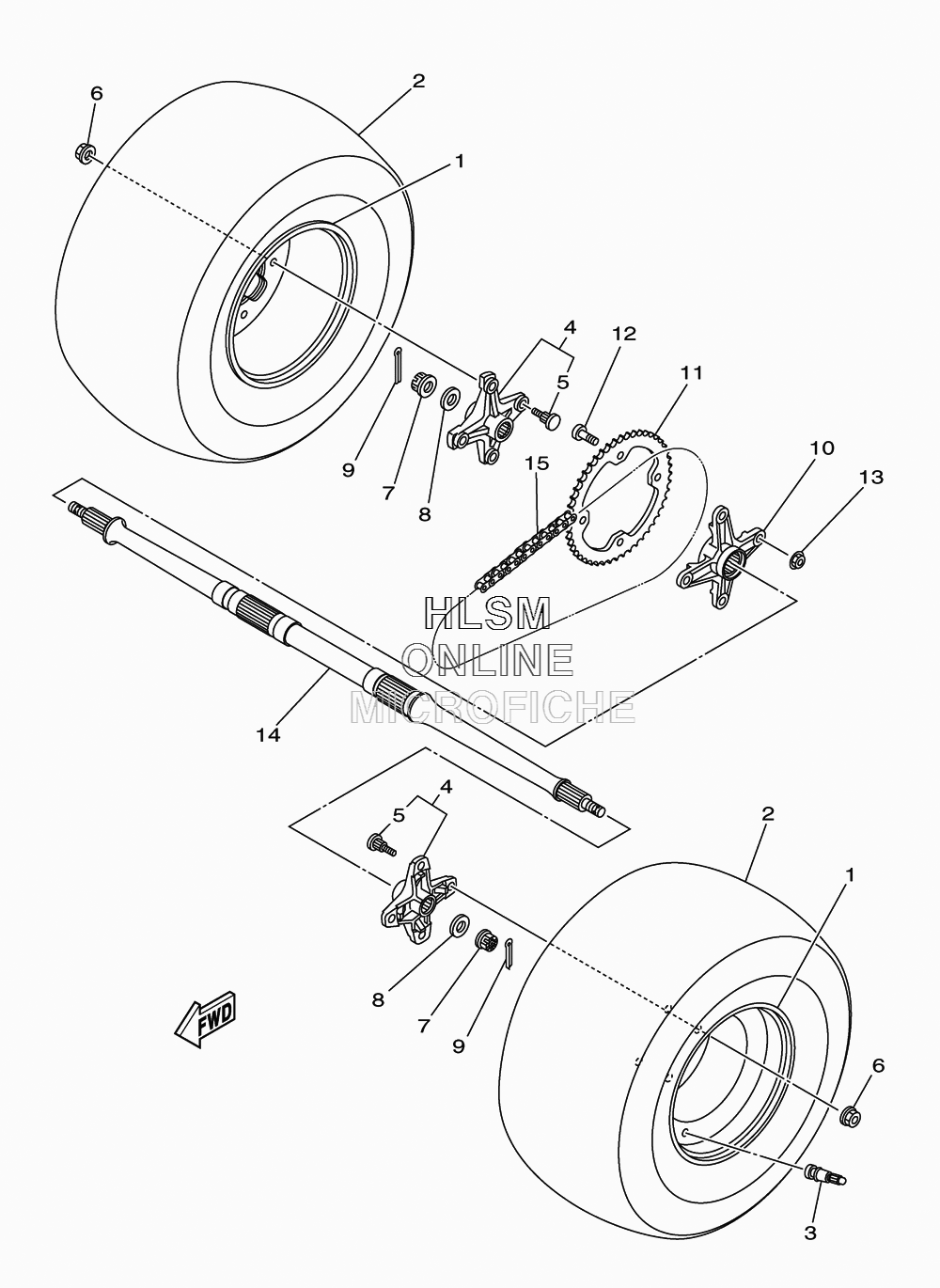

WHEEL - REAR W/ AXLE ASSY для Yamaha RAPTOR 125 - 2013 года выпуска`
-
№АртикулНазвание
-
12PA-25390-00-00 REAR WHEEL COMP.REAR WHEEL COMP.
-
294109-08008-00 TIRE (AT18X9-8 M940TL)TIRE (AT18X9-8 M940TL)
-
393900-00022-00 VALVE, RIM (TR413)VALVE, RIM (TR413)
-
41S3-25383-20-00 COLLAR, WHEELCOLLAR, WHEEL
-
590114-10013-00 ...BOLT, SERRATION...BOLT, SERRATION
-
695702-10500-00 NUT, FLANGENUT, FLANGE
-
790171-14004-00 NUT, CASTLENUT, CASTLE
-
890201-14021-00 WASHER, PLATEWASHER, PLATE
-
991401-30030-00 PIN, COTTERPIN, COTTER
-
105YT-25386-00-00 COLLAR, SPROCKET AXLECOLLAR, SPROCKET AXLE
-
112PA-25448-00-00 SPROCKET, DRIVEN (48T)SPROCKET, DRIVEN (48T)
-
1290109-10010-00 BOLTBOLT
-
1395602-10200-00 NUT, U FLANGENUT, U FLANGE
-
144D3-25381-00-00 AXLE, WHEELAXLE, WHEEL
-
1594582-14114-00 CHAINCHAIN
