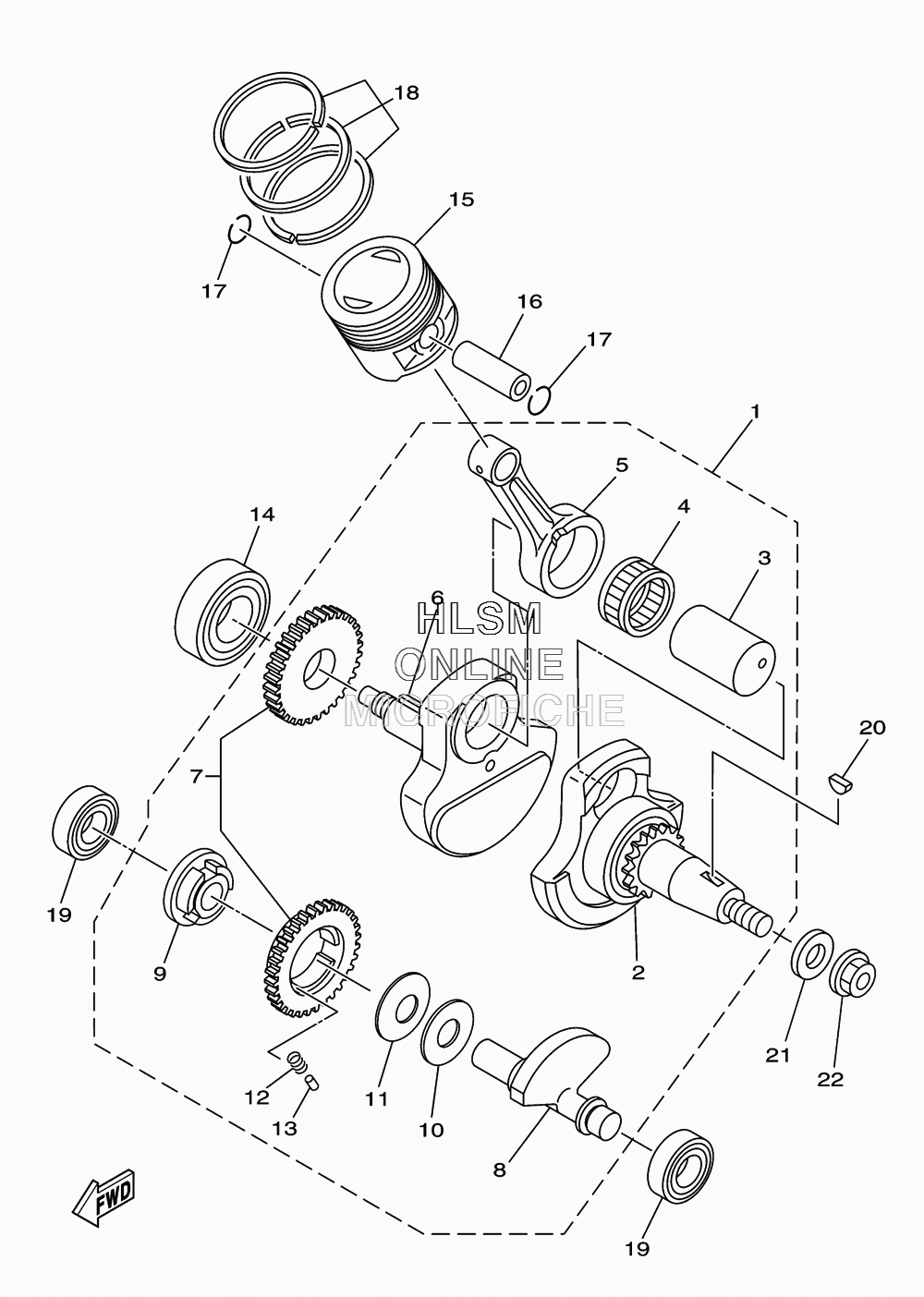

CRANKSHAFT - PISTON для Yamaha RAPTOR 125 - 2013 года выпуска`
-
№АртикулНазвание
-
13D9-W1140-00-00 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
23D9-W1141-00-00 ...CRANK SUB ASSY 1...CRANK SUB ASSY 1
-
35VL-E1681-00-00 ...PIN, CRANK 1...PIN, CRANK 1
-
493310-629Y3-00 ...BEARING...BEARING
-
55VL-E1651-00-00 ...ROD, CONNECTING...ROD, CONNECTING
-
65VL-E1422-00-00 ...CRANK 2...CRANK 2
-
75VL-Y1153-20-00 ...GEAR, BALANCE WEIGHT ASSY....GEAR, BALANCE WEIGHT ASSY.
-
85VL-E1454-10-00 ...WEIGHT 1...WEIGHT 1
-
95VL-E1496-00-00 ...BOSS, BUFFER...BOSS, BUFFER
-
105VL-E1533-00-00 ...PLATE, ABSORBER...PLATE, ABSORBER
-
1190208-26800-00 ...WASHER, CONICAL SPRING...WASHER, CONICAL SPRING
-
1290501-16001-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
1393604-08800-00 ...PIN, DOWEL...PIN, DOWEL
-
1493306-205XJ-00 BEARINGBEARING
-
155VL-E1631-00-00 PISTON (STD)PISTON (STD)
-
165VL-E1633-00-00 PIN, PISTONPIN, PISTON
-
1793450-16812-00 CIRCLIPCIRCLIP
-
185VL-Y1161-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
1993306-202XN-00 BEARINGBEARING
-
2090280-03017-00 KEY, WOODRUFFKEY, WOODRUFF
-
2190201-122H1-00 WASHER, PLATEWASHER, PLATE
-
2290179-12863-00 NUTNUT
