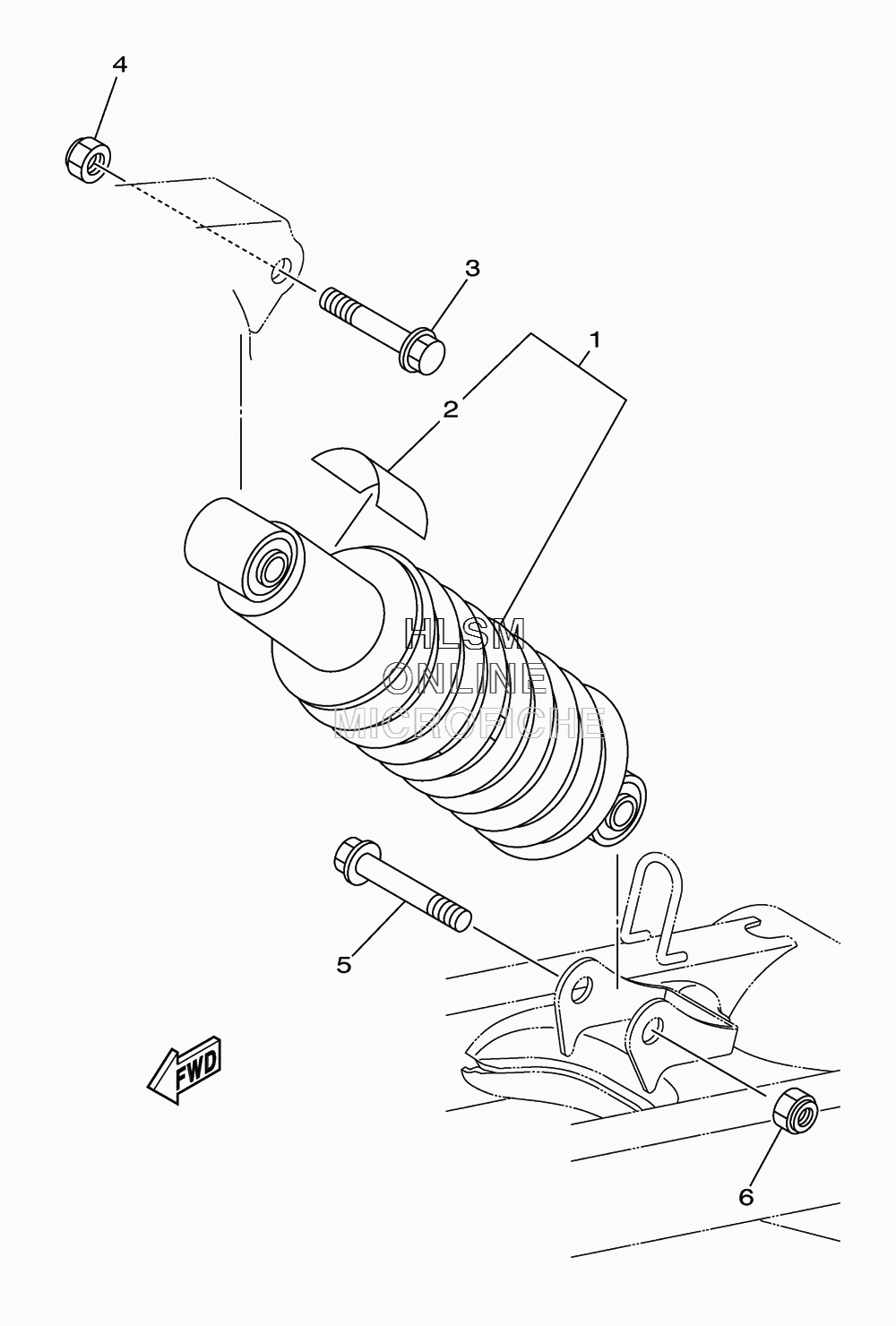

SUSPENSION - REAR SHOCK ABSORBER для Yamaha RAPTOR 125 - 2013 года выпуска`
-
№АртикулНазвание
-
14D3-22210-00-33 SHOCK ABSORBER ASSY, REAR (YB - YAMAHA BLACK)SHOCK ABSORBER ASSY, REAR (YB - YAMAHA BLACK)
-
24AA-22259-80-00 LABEL, WARNINGLABEL, WARNING
-
390105-12051-00 BOLT, FLANGEBOLT, FLANGE
-
495612-12100-00 NUT, UNUT, U
-
590105-12051-00 BOLT, FLANGEBOLT, FLANGE
-
695612-12100-00 NUT, UNUT, U
