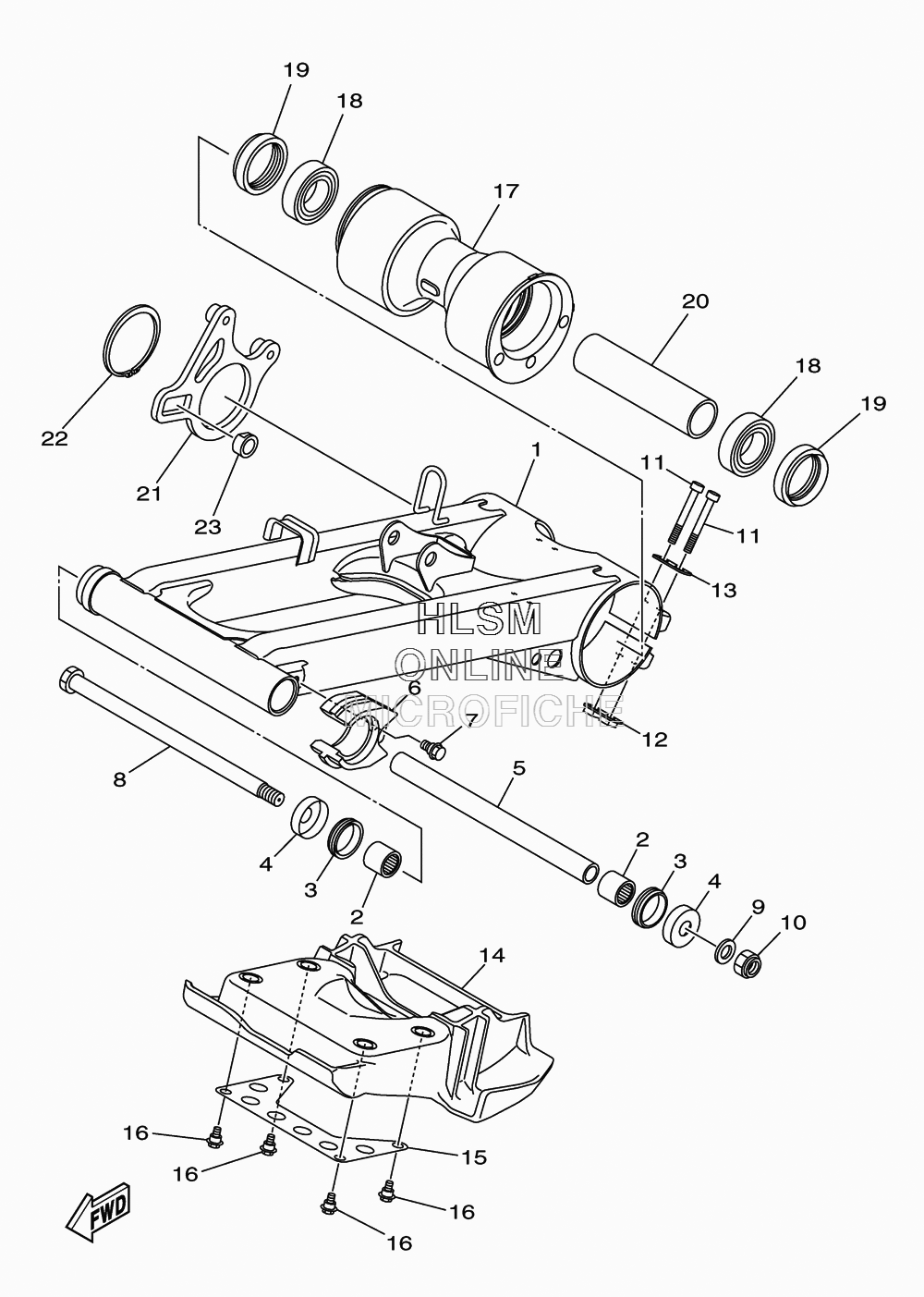

SUSPENSION - REAR ARM для Yamaha RAPTOR 125 - 2013 года выпуска`
-
№АртикулНазвание
-
14D3-22110-00-R4 REAR ARM COMP.REAR ARM COMP.
-
293317-22237-00 BEARINGBEARING
-
393108-35004-00 OIL SEAL (35-41-8)OIL SEAL (35-41-8)
-
430X-2219X-00-00 COVERCOVER
-
54D3-22184-00-00 BUSHBUSH
-
64D3-22151-00-00 SEAL, GUARDSEAL, GUARD
-
790109-06172-00 BOLTBOLT
-
82JN-22141-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
990201-14020-00 WASHER, PLATEWASHER, PLATE
-
1090185-14009-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1191312-08060-00 BOLTBOLT
-
124D3-22314-00-00 NUT, PJTN.NUT, PJTN.
-
134D3-22348-00-00 PLATE 2PLATE 2
-
144D3-2219X-00-00 COVERCOVER
-
154D3-22347-00-00 PLATE, CHAIN CASE RUBBERPLATE, CHAIN CASE RUBBER
-
1690109-06236-00 BOLTBOLT
-
172PA-25311-00-00 HUB, REARHUB, REAR
-
1893306-00710-00 BEARINGBEARING
-
1993106-46001-00 OIL SEALOIL SEAL
-
204D3-25317-00-00 SPACER, BEARINGSPACER, BEARING
-
214D3-25721-00-00 BRACKET, CALIPERBRACKET, CALIPER
-
2293410-67085-00 CIRCLIPCIRCLIP
-
234D3-25377-00-00 COLLAR, WHEELCOLLAR, WHEEL
