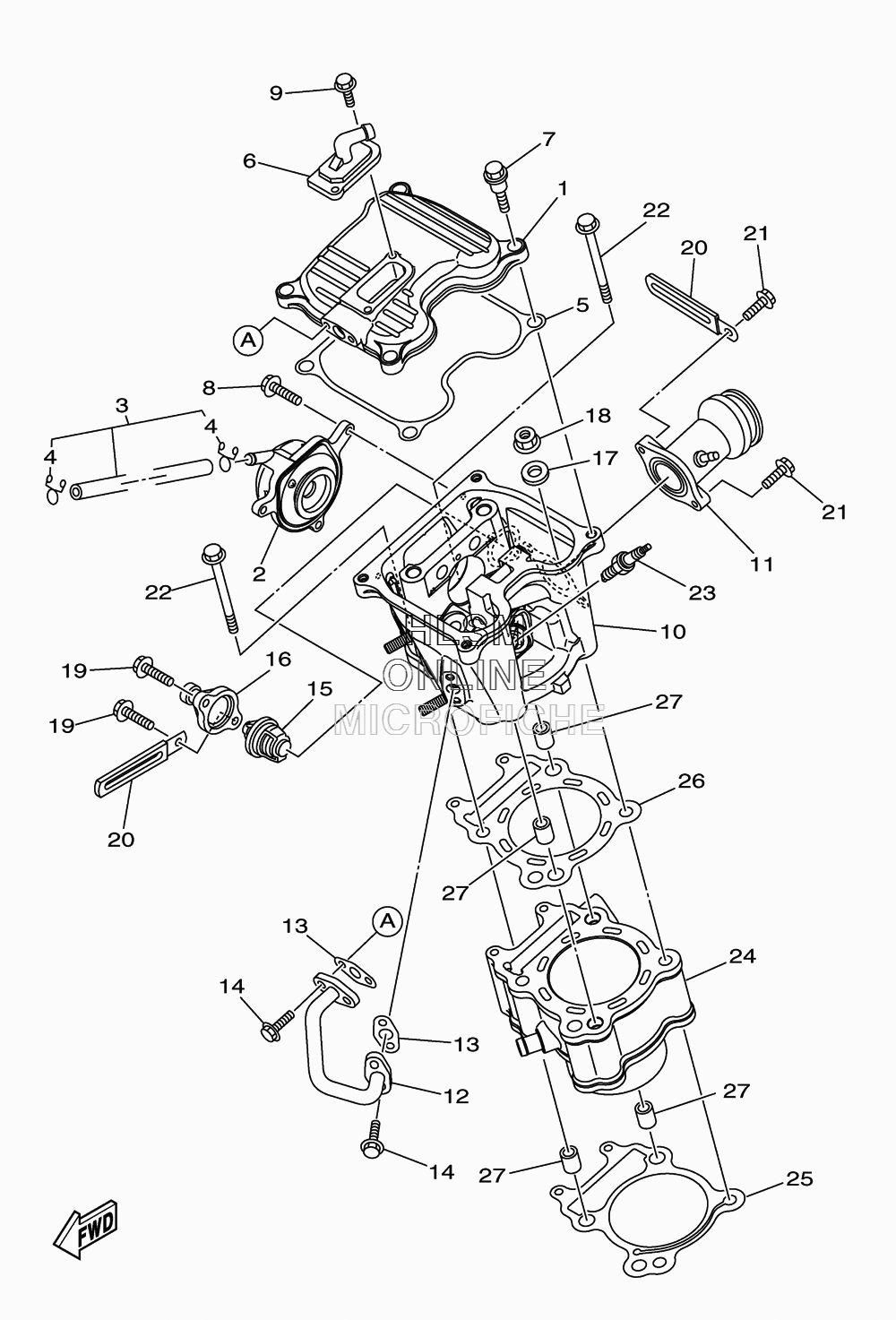

CYLINDER для Yamaha GRIZZLY 300 AUTO - 2013 года выпуска`
-
№АртикулНазвание
-
11SC-E1191-00-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
21SC-E1160-00-00 BREATHER ASSYBREATHER ASSY
-
31SC-E1104-00-00 BREATHER PIPE ASSYBREATHER PIPE ASSY
-
41SC-E449C-00-00 ...CLIP 1...CLIP 1
-
51SC-E1193-00-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
61SC-E4890-00-00 REED VALVE ASSYREED VALVE ASSY
-
71SC-E119E-00-00 BOLT, COVER HEADBOLT, COVER HEAD
-
81SC-E118E-00-00 BOLT, COVER MOUNTINGBOLT, COVER MOUNTING
-
91SC-E4496-00-00 BOLTBOLT
-
101SC-E1102-00-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
111SC-E3586-00-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
121SC-E4871-00-00 PIPE 1PIPE 1
-
131SC-E4815-00-00 GASKETGASKET
-
141SC-E118E-00-00 BOLT, COVER MOUNTINGBOLT, COVER MOUNTING
-
151SC-E2411-00-00 THERMOSTATTHERMOSTAT
-
161SC-E2413-00-00 COVER, THERMOSTATCOVER, THERMOSTAT
-
171SC-E1173-00-00 WASHER, SEALINGWASHER, SEALING
-
181SC-E1171-00-00 NUT, HOLDINGNUT, HOLDING
-
191SC-E4496-00-00 BOLTBOLT
-
201SC-E5484-00-00 CLAMP 2CLAMP 2
-
211SC-E3573-00-00 BOLT 1BOLT 1
-
221SC-E1363-00-00 BOLT, CYLINDER HOLDING 3BOLT, CYLINDER HOLDING 3
-
23CR8-E0000-00-00 PLUG, SPARK (NGK CR8E)PLUG, SPARK (NGK CR8E)
-
241SC-E1310-00-00 CYLINDERCYLINDER
-
251SC-E1351-00-00 GASKET, CYLINDERGASKET, CYLINDER
-
261SC-E1181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
271SC-E5614-00-00 PIN, DOWELPIN, DOWEL
