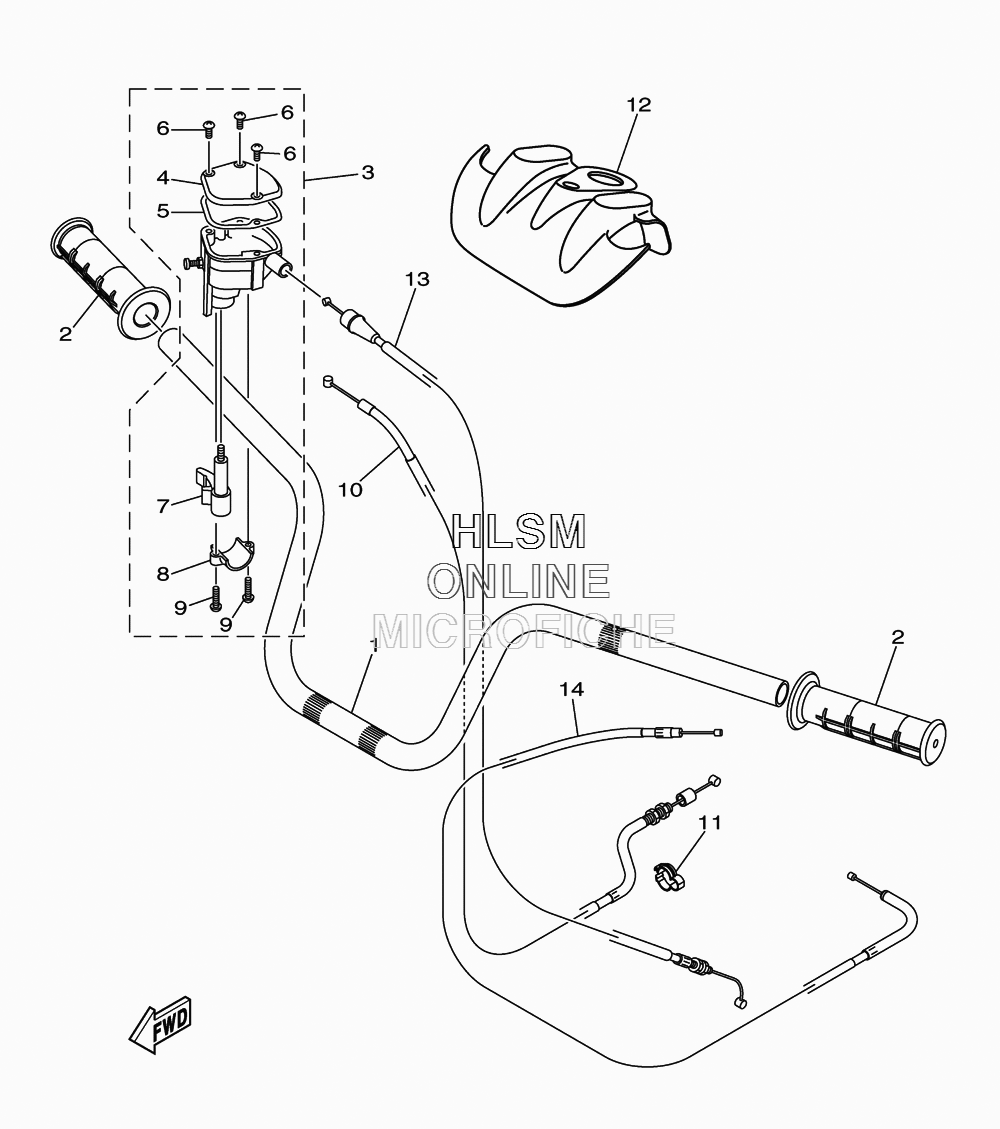

HANDLEBAR W/ CABLES для Yamaha GRIZZLY 300 AUTO - 2013 года выпуска`
-
№АртикулНазвание
-
11SC-F6111-00-00 HANDLEBARHANDLEBAR
-
21SC-F6241-00-00 GRIPGRIP
-
31SC-F6250-00-00 THROTTLE LEVER ASSY.THROTTLE LEVER ASSY.
-
41SC-F628F-00-00 ...CAP, GEAR...CAP, GEAR
-
51SC-F628G-00-00 ...GASKET...GASKET
-
61SC-F632G-00-00 ...SCREW...SCREW
-
71SC-F625G-00-00 ...LEVER, THROTTLE...LEVER, THROTTLE
-
81SC-H2913-00-00 ...HOLDER, LEVER LOWER 1...HOLDER, LEVER LOWER 1
-
991317-05020-00 ...BOLT...BOLT
-
101SC-F6341-00-00 WIRE, BRAKE 1WIRE, BRAKE 1
-
111SC-F627E-00-00 CLAMP, WIRECLAMP, WIRE
-
121SC-F6124-00-00 PROTECTOR, HANDLEBARPROTECTOR, HANDLEBAR
-
131SC-F6311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
141SC-F6331-00-00 CABLE, STARTER 1CABLE, STARTER 1
Все узлы модели:
- AIR CLEANER W/ INTAKE
- BRAKE - FRONT CALIPER
- BRAKE - FRONT MASTER CYLINDER
- BRAKE - REAR CALIPER
- BRAKE - REAR MASTER CYLINDER
- CAMSHAFT W/ CHAIN
- CARBURETOR
- CLUTCH
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT - PISTON
- CYLINDER
- DECALS
- DIFFERENTIAL - REAR W/ DRIVE SHAFT
- ELECTRICAL
- EMBLEMS
- EXHAUST
- FENDER - FRONT
- FENDER - REAR
- FOOTREST W/ BRAKE PEDAL
- FRAME
- FUEL TANK
- GENERATOR
- • HANDLEBAR W/ CABLES
- HANDLEBAR W/ SWITCHES - LEVERS
- HEADLIGHT
- MIDDLE DRIVE GEAR
- MODEL INFO - MANUALS
- OIL PUMP
- RACK AND BUMPER
- RADIATOR ASSY
- SEAT
- SHIFT CAM W/ FORK
- SHIFT SHAFT
- SIDE COVER
- STARTER CLUTCH
- STARTING MOTOR
- STEERING
- SUSPENSION - FRONT WHEEL
- SUSPENSION - REAR ARM
- SUSPENSION - REAR SHOCK ABSORBER
- TAILLIGHT
- TRANSMISSION
- VALVE ASSY
- WATER PUMP ASSY
- WHEEL - FRONT W/ AXLE ASSY
- WHEEL - REAR W/ AXLE ASSY
