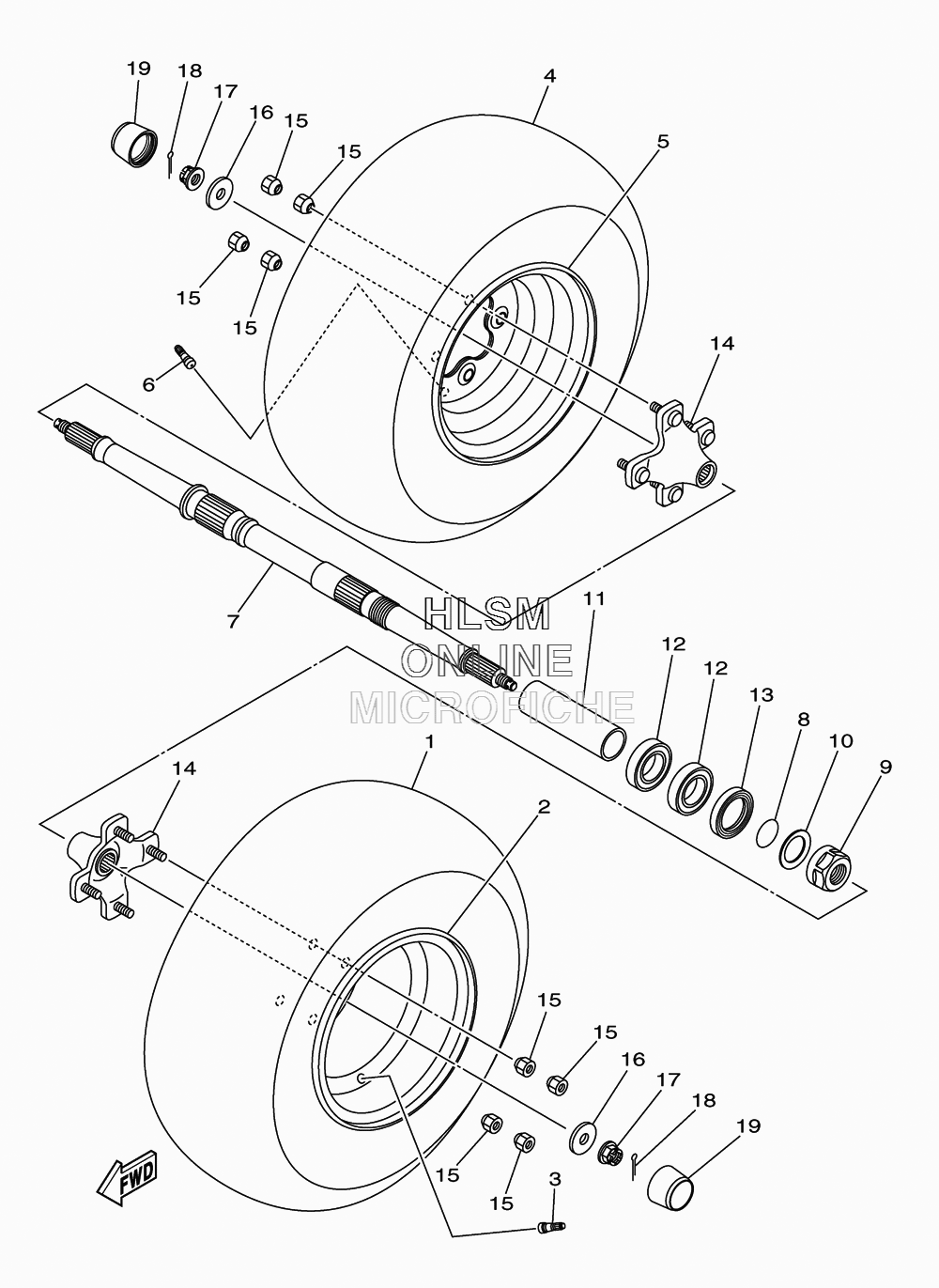

WHEEL - REAR W/ AXLE ASSY для Yamaha GRIZZLY 300 AUTO - 2013 года выпуска`
-
№АртикулНазвание
-
11SC-F53P3-00-00 TIRE (AT22 X 10-9 M920) MAXXISTIRE (AT22 X 10-9 M920) MAXXIS
-
21SC-F5390-00-00 REAR WHEEL COMP.REAR WHEEL COMP.
-
343D-F5170-00-00 AIR VALVE ASSYAIR VALVE ASSY
-
41SC-F53P3-00-00 TIRE (AT22 X 10-9 M920) MAXXISTIRE (AT22 X 10-9 M920) MAXXIS
-
51SC-F5390-00-00 REAR WHEEL COMP.REAR WHEEL COMP.
-
643D-F5170-00-00 AIR VALVE ASSYAIR VALVE ASSY
-
71SC-F5381-00-00 AXLE, WHEELAXLE, WHEEL
-
81SC-F4649-00-00 O-RINGO-RING
-
91SC-F5382-00-00 NUT, AXLENUT, AXLE
-
101SC-F581R-00-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
111SC-F5317-00-00 SPACER, BEARINGSPACER, BEARING
-
121SC-F53N4-00-00 BEARINGBEARING
-
131SC-F5975-00-00 RUBBER, BUSHINGRUBBER, BUSHING
-
141SC-F5383-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
151SC-F1839-00-00 NUTNUT
-
161SC-F2243-00-00 WASHER 1WASHER 1
-
1743D-F5382-00-00 NUT, AXLENUT, AXLE
-
1891401-25033-00 PIN, COTTERPIN, COTTER
-
191SC-F532A-00-00 CAP, WHEEL(REAR)CAP, WHEEL(REAR)
