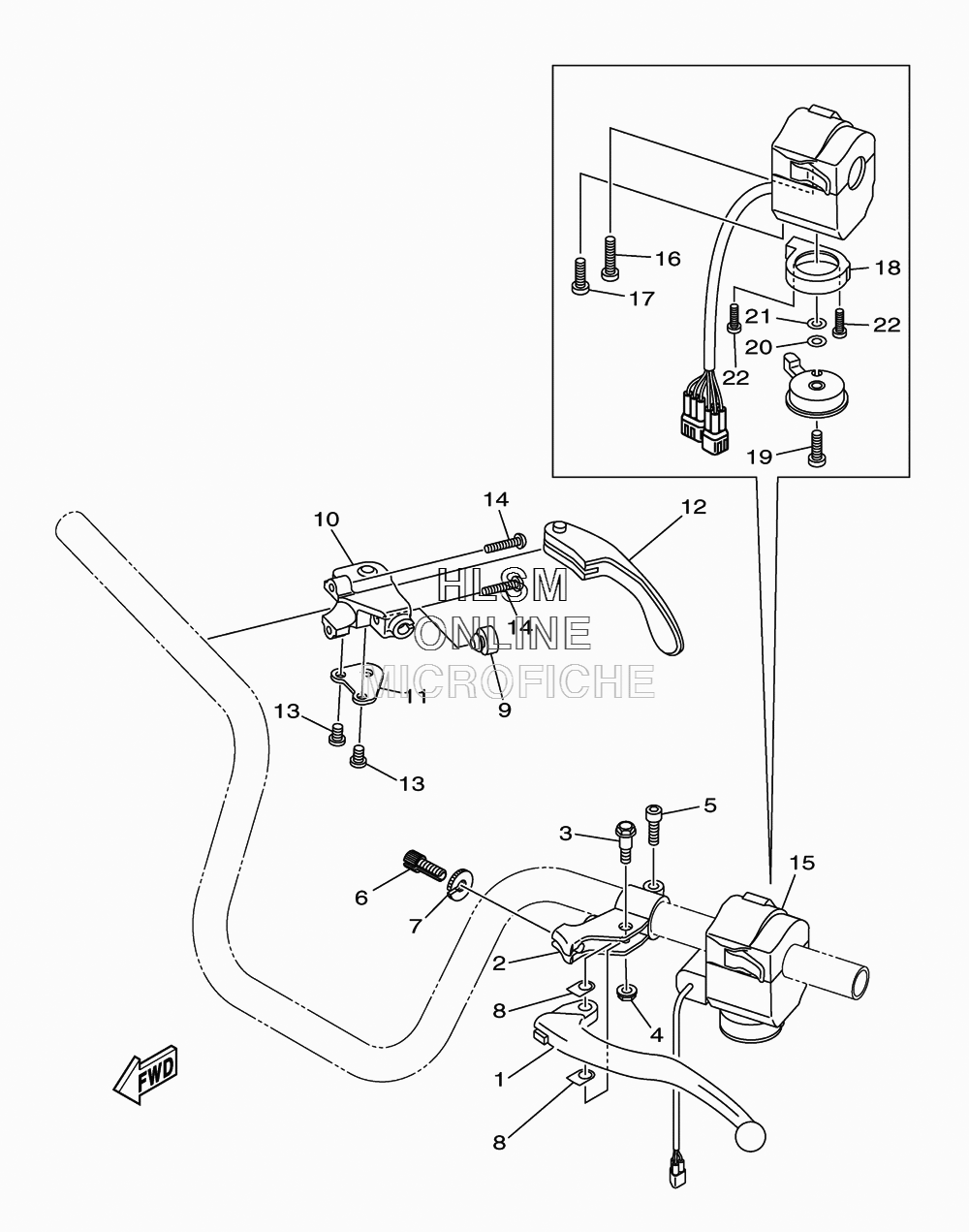

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha GRIZZLY 300 AUTO - 2013 года выпуска`
-
№АртикулНазвание
-
11SC-H3912-00-00 LEVER 1LEVER 1
-
21SC-H2911-00-00 HOLDER, LEVER 1HOLDER, LEVER 1
-
31SC-F3356-00-00 BOLT 2BOLT 2
-
443D-F3778-00-00 NUTNUT
-
543D-F6332-00-00 BOLTBOLT
-
61SC-H3951-00-00 BOLT, CABLE ADJUSTINGBOLT, CABLE ADJUSTING
-
743D-F1968-00-00 NUTNUT
-
81SC-F6398-00-00 WASHERWASHER
-
943D-F6113-00-00 DAMPERDAMPER
-
101SC-F5727-00-00 BRACKET, LEVERBRACKET, LEVER
-
1143D-F5689-00-00 PLATE, GUIDEPLATE, GUIDE
-
121SC-F5726-00-00 LEVER, BRAKELEVER, BRAKE
-
1343D-F8355-00-00 SCREWSCREW
-
1443D-F8354-00-00 SCREWSCREW
-
151SC-H3973-00-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
-
1698507-05040-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1798507-05030-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
181SC-H18A7-00-00 ...SEAT, BASE 1...SEAT, BASE 1
-
1998507-06010-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
201SC-H2327-00-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
211SC-H332D-00-00 ...WASHER, SPECIAL 2...WASHER, SPECIAL 2
-
221SC-H2113-00-00 ...SCREW...SCREW
