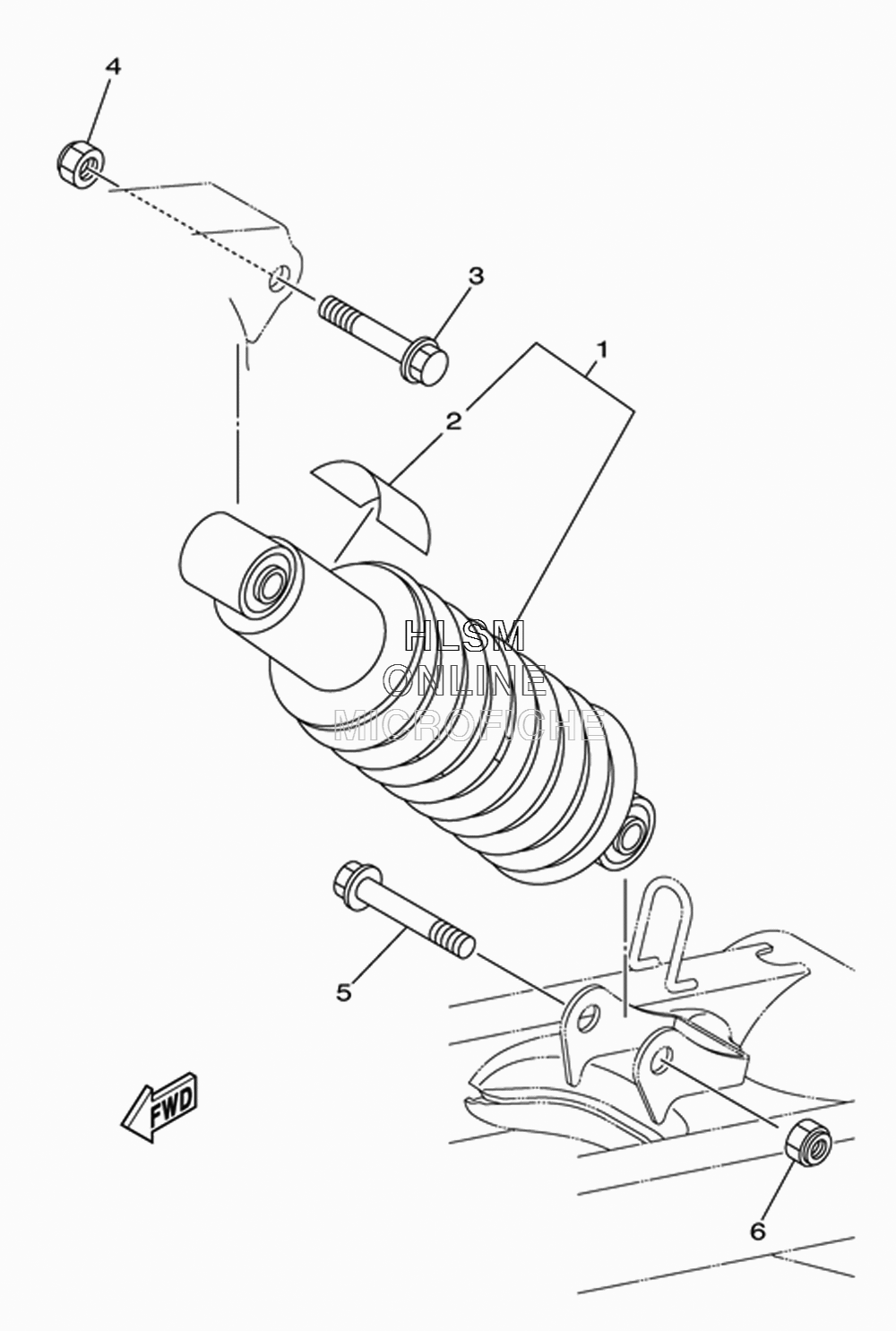

SUSPENSION - REAR SHOCK ABSORBER для Yamaha RAPTOR 125 - 2012 года выпуска`
-
№АртикулНазвание
-
14D3-22210-00-33 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
24AA-22259-80-00 ...LABEL, WARNING...LABEL, WARNING
-
390105-12051-00 BOLT, FLANGEBOLT, FLANGE
-
495612-12100-00 NUT, UNUT, U
-
590105-12051-00 BOLT, FLANGEBOLT, FLANGE
-
695612-12100-00 NUT, UNUT, U
Все узлы модели:
- AIR CLEANER W/ INTAKE
- BRAKE - FRONT CALIPER
- BRAKE - FRONT MASTER CYLINDER
- BRAKE - REAR CALIPER
- BRAKE - REAR MASTER CYLINDER
- CAMSHAFT W/ CHAIN
- CARBURETOR
- CLUTCH
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT - PISTON
- CYLINDER HEAD
- DECALS
- ELECTRICAL
- EMBLEMS
- EXHAUST
- FENDER - FRONT
- FENDER - REAR
- FOOTREST W/ BRAKE PEDAL
- FRAME
- FUEL TANK
- GENERATOR
- HANDLEBAR W/ CABLES
- HANDLEBAR W/ SWITCHES - LEVERS
- HEADLIGHT
- MODEL INFO - MANUALS
- OIL PUMP
- RACK AND BUMPER
- SEAT
- SHIFT CAM W/ FORK
- SHIFT SHAFT
- STARTER CLUTCH
- STARTING MOTOR
- STEERING
- SUSPENSION - FRONT WHEEL
- SUSPENSION - REAR ARM
- • SUSPENSION - REAR SHOCK ABSORBER
- TAILLIGHT
- TRANSMISSION
- VALVE ASSY
- WHEEL - FRONT W/ AXLE ASSY
- WHEEL - REAR W/ AXLE ASSY
