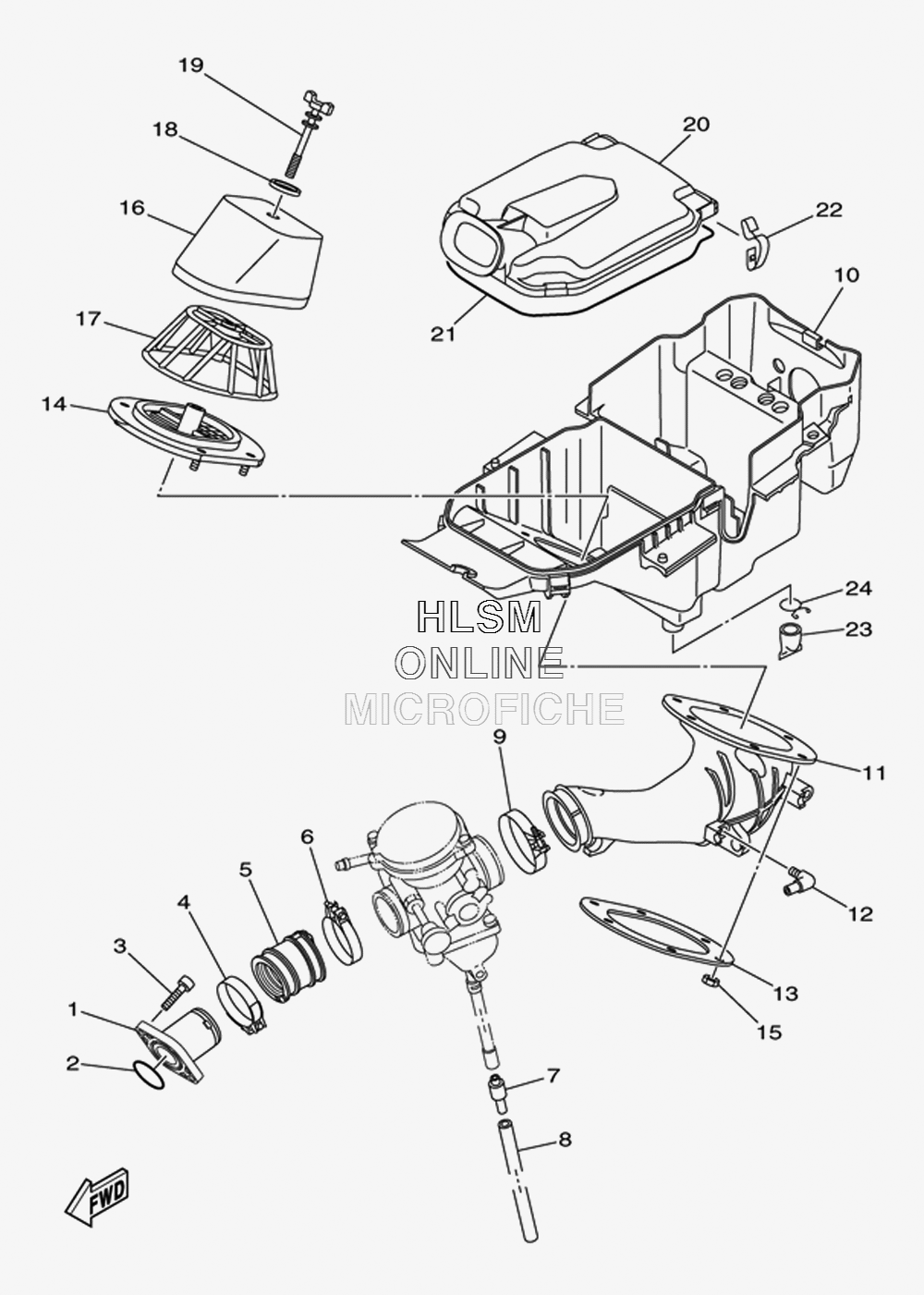

AIR CLEANER W/ INTAKE для Yamaha RAPTOR 125 - 2012 года выпуска`
-
№АртикулНазвание
-
12PA-E3586-00-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
293210-30611-00 O-RINGO-RING
-
391312-06020-00 BOLTBOLT
-
42PA-13474-00-00 BANDBAND
-
52PA-13596-00-00 JOINT, CARBURETOR 2JOINT, CARBURETOR 2
-
690450-47002-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
724W-14193-00-00 PIPEPIPE
-
891A20-07010-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
-
990450-58003-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
104D3-14411-00-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
114D3-14453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
1231A-14419-00-00 PIPEPIPE
-
132XJ-14477-00-00 PLATEPLATE
-
144D3-14459-00-00 HOLDER, GUIDEHOLDER, GUIDE
-
1595602-05100-00 NUT, UNUT, U
-
162XJ-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
172XJ-14458-00-00 GUIDEGUIDE
-
1890209-06096-00 WASHER, SPEC'L SHAPEWASHER, SPEC'L SHAPE
-
1990122-06035-00 BOLT, WINGBOLT, WING
-
204D3-14412-00-00 CAP, CLEANER CASE 1CAP, CLEANER CASE 1
-
214D3-14452-00-00 SEALSEAL
-
225GH-14436-00-00 HOOKHOOK
-
2359V-14457-00-00 SEALSEAL
-
2490467-220A1-00 CLIPCLIP
