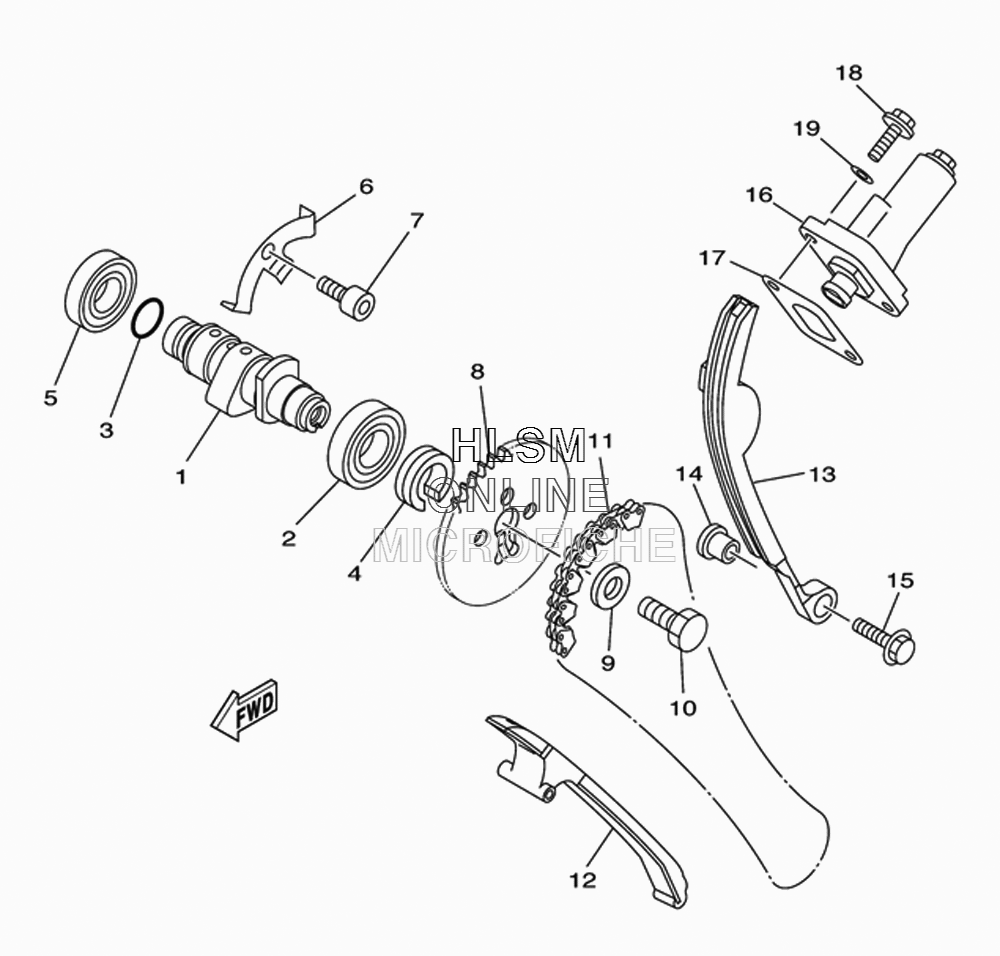

CAMSHAFT W/ CHAIN для Yamaha RAPTOR 125 - 2012 года выпуска`
-
№АртикулНазвание
-
15VL-E2171-10-00 CAMSHAFT 1CAMSHAFT 1
-
293306-003X6-00 BEARINGBEARING
-
393210-108B1-00 O-RINGO-RING
-
490387-16804-00 COLLARCOLLAR
-
593306-002Y1-00 BEARINGBEARING
-
65VL-E111F-00-00 PLATEPLATE
-
791312-06012-00 BOLTBOLT
-
85VL-E2176-10-00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
990201-08326-00 WASHER, PLATEWASHER, PLATE
-
1090101-08820-00 BOLTBOLT
-
1194568-A4090-00 CHAINCHAIN
-
125VL-E2231-10-00 GUIDE, STOPPER 1GUIDE, STOPPER 1
-
135VL-E2241-10-00 GUIDE, STOPPER 2GUIDE, STOPPER 2
-
145VL-E5598-00-00 COLLARCOLLAR
-
1595802-06020-00 BOLT, FLANGEBOLT, FLANGE
-
165VL-12210-10-00 TENSIONER ASSY, CAM CHAINTENSIONER ASSY, CAM CHAIN
-
175VL-E2213-10-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
-
1895022-06016-00 BOLT, FLANGEBOLT, FLANGE
-
1990430-06817-00 GASKETGASKET
