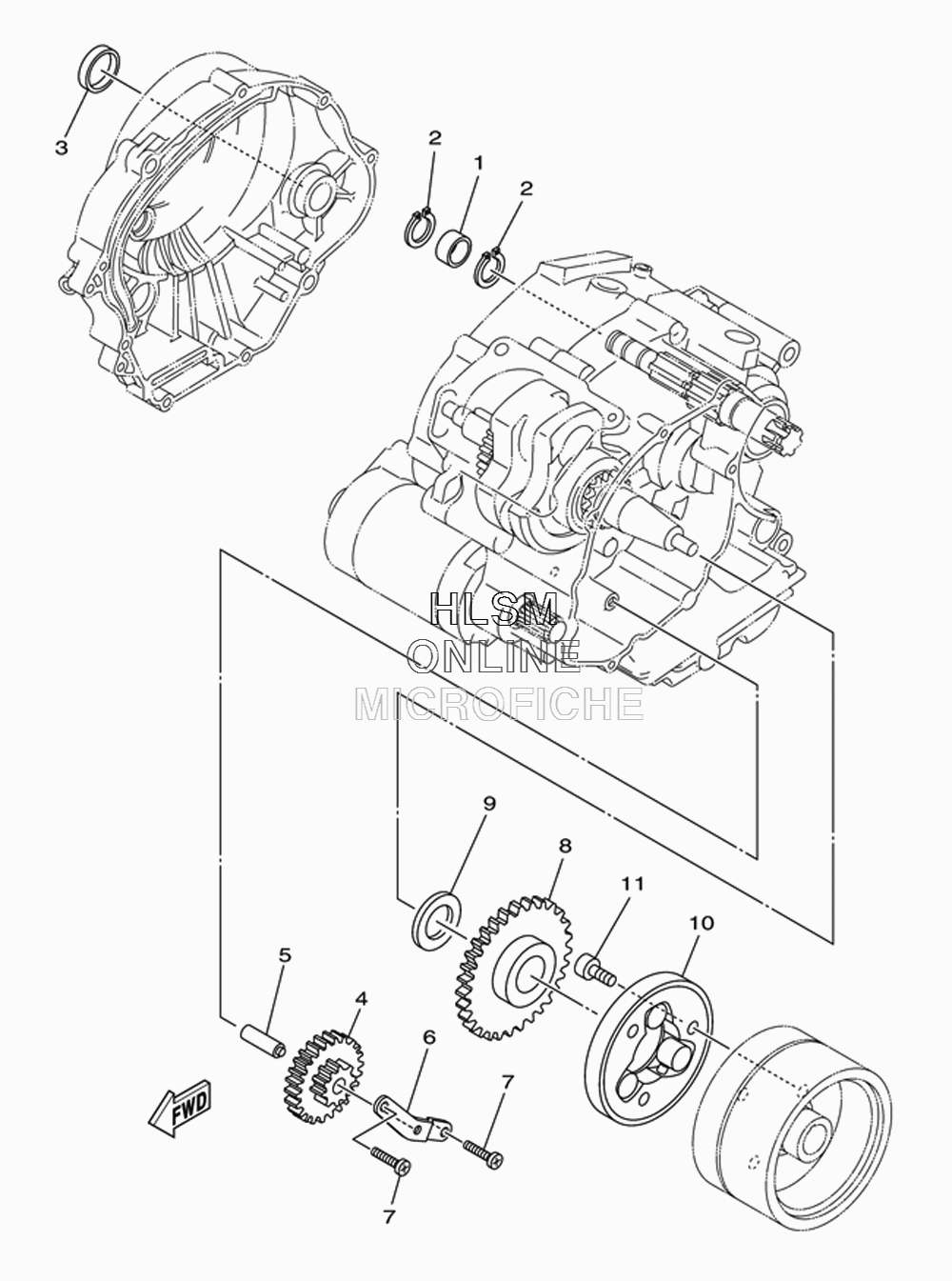

STARTER CLUTCH для Yamaha RAPTOR 125 - 2012 года выпуска
-
№АртикулНазвание
-
190387-15803-00 COLLARCOLLAR
-
299009-15400-00 CIRCLIPCIRCLIP
-
390338-30816-00 PLUGPLUG
-
45VL-E5512-00-00 GEAR, IDLER 1GEAR, IDLER 1
-
55VL-E5521-00-00 SHAFT 1SHAFT 1
-
65VL-E5532-00-00 PLATE, IDLE GEARPLATE, IDLE GEAR
-
798512-06012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
85VL-E5517-00-00 GEAR, IDLER 2GEAR, IDLER 2
-
990201-258D7-00 WASHER, PLATEWASHER, PLATE
-
104FP-E5580-00-00 STARTER CLUTCH OUTER ASSYSTARTER CLUTCH OUTER ASSY
-
1191312-08016-00 BOLTBOLT
