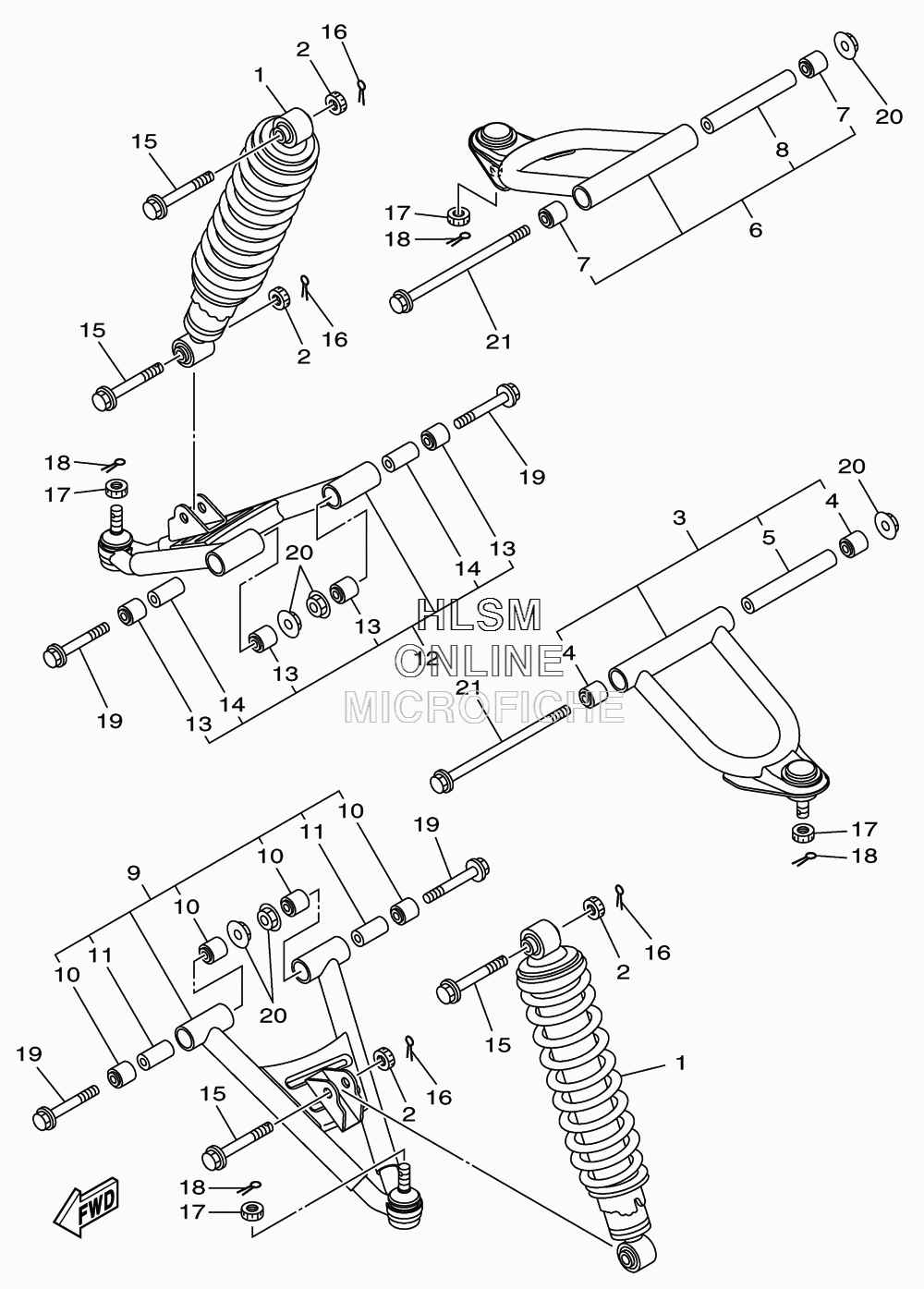

SUSPENSION - FRONT WHEEL для Yamaha RAPTOR 90 - 2010 года выпуска`
-
№АртикулНазвание
-
143D-F3350-10-00 SHOCK ABSORBER ASSYSHOCK ABSORBER ASSY
-
243D-F1244-00-00 NUTNUT
-
343D-F3505-00-00 FRONT UPPER ARM SUB ASSY LEFT HANDFRONT UPPER ARM SUB ASSY LEFT HAND
-
443D-F3526-00-00 BUSHBUSH
-
543D-F3363-00-00 COLLAR 1COLLAR 1
-
643D-F3506-00-00 FRONT UPPER ARM SUB ASSY RIGHT HANDFRONT UPPER ARM SUB ASSY RIGHT HAND
-
743D-F3526-00-00 BUSHBUSH
-
843D-F3363-00-00 COLLAR 1COLLAR 1
-
943D-F3507-00-00 FRONT LOWER ARM SUB-ASSY (L.H)FRONT LOWER ARM SUB-ASSY (L.H)
-
1043D-F3526-00-00 BUSHBUSH
-
1143D-F3364-00-00 COLLAR 2COLLAR 2
-
1243D-F3508-00-00 FRONT LOWER ARM SUB-ASSY (R.H)FRONT LOWER ARM SUB-ASSY (R.H)
-
1343D-F3526-00-00 BUSHBUSH
-
1443D-F3364-00-00 COLLAR 2COLLAR 2
-
1597027-10040-00 BOLT, HEXAGONBOLT, HEXAGON
-
1691401-25020-00 PIN, COTTERPIN, COTTER
-
1795302-10900-00 NUT, SLOTTEDNUT, SLOTTED
-
1891401-25033-00 PIN, COTTERPIN, COTTER
-
1943D-F3471-00-00 BOLTBOLT
-
2043D-F1635-00-00 NUT, REAR FENDERNUT, REAR FENDER
-
2143D-E2623-00-00 BOLTBOLT
