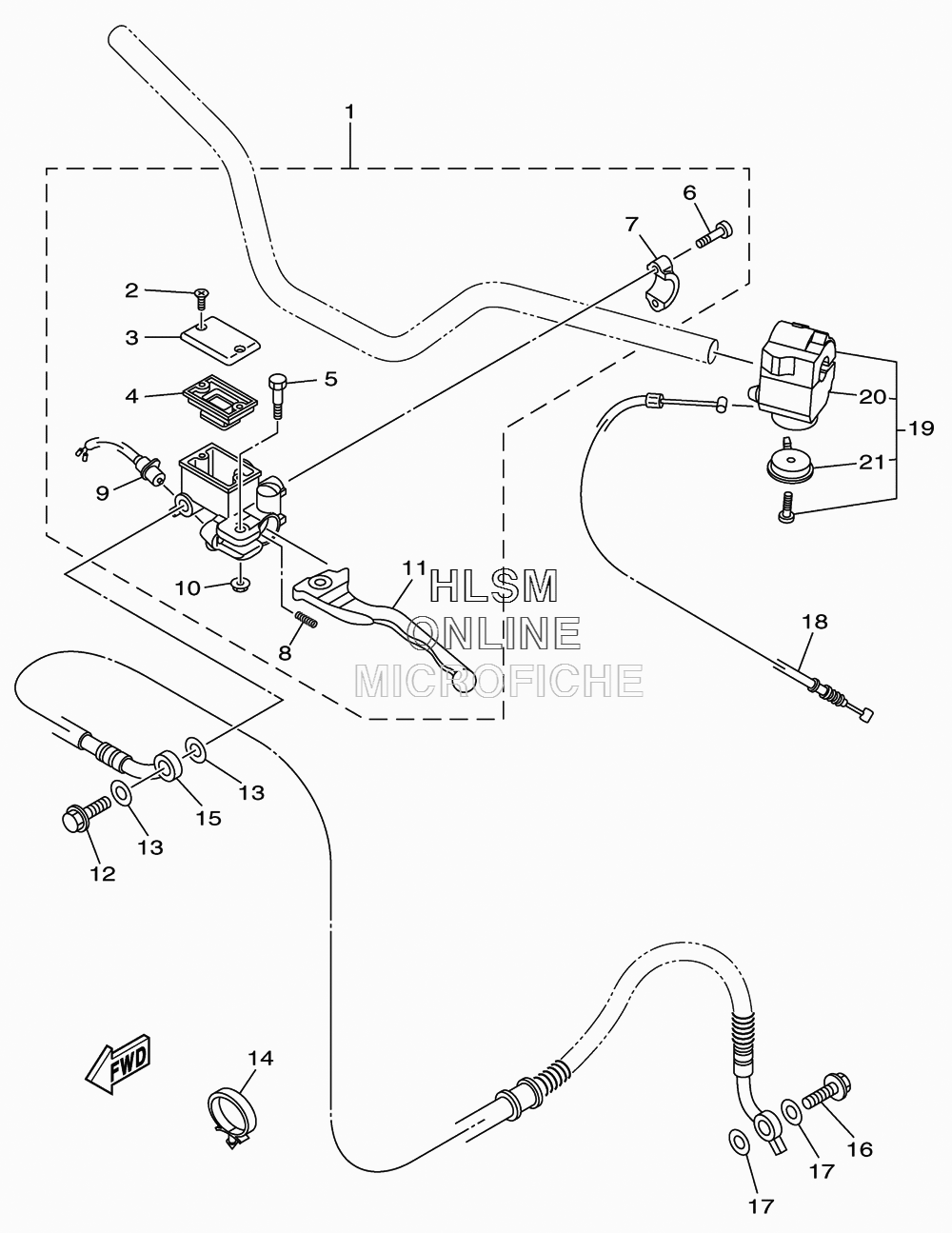

BRAKE - REAR MASTER CYLINDER для Yamaha RAPTOR 90 - 2010 года выпуска`
-
№АртикулНазвание
-
143D-F583V-00-00 RR. MASTER CYLINDER ASSY.RR. MASTER CYLINDER ASSY.
-
243D-F11C8-00-00 SCREW 4SCREW 4
-
343D-F5852-00-00 CAP, RESERVOIRCAP, RESERVOIR
-
443D-F5854-00-00 GASKET, DIAPHRAGMGASKET, DIAPHRAGM
-
543D-F2277-00-00 BOLTBOLT
-
643D-F11C9-00-00 SCREW 5SCREW 5
-
743D-F5867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
843D-F6314-00-00 SPRINGSPRING
-
943D-H2550-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
1043D-F3833-00-00 NUT 1NUT 1
-
1143D-H3912-00-00 LEVER 1LEVER 1
-
1243D-F244H-00-00 BOLTBOLT
-
1343D-F2244-00-00 WASHER 2WASHER 2
-
1443D-F53N5-00-00 CLAMP 1CLAMP 1
-
1543D-F5874-01-00 HOSE, BRAKEHOSE, BRAKE
-
1643D-F244H-00-00 BOLTBOLT
-
1743D-F2244-00-00 WASHER 2WASHER 2
-
1843D-F6331-00-00 CABLE, STARTER 1CABLE, STARTER 1
-
1943D-H3975-00-00 SWITCH, HANDLE 2SWITCH, HANDLE 2
-
2043D-H259E-00-00 SWITCH ASSYSWITCH ASSY
-
2143D-H3941-00-00 LEVER, STARTERLEVER, STARTER
