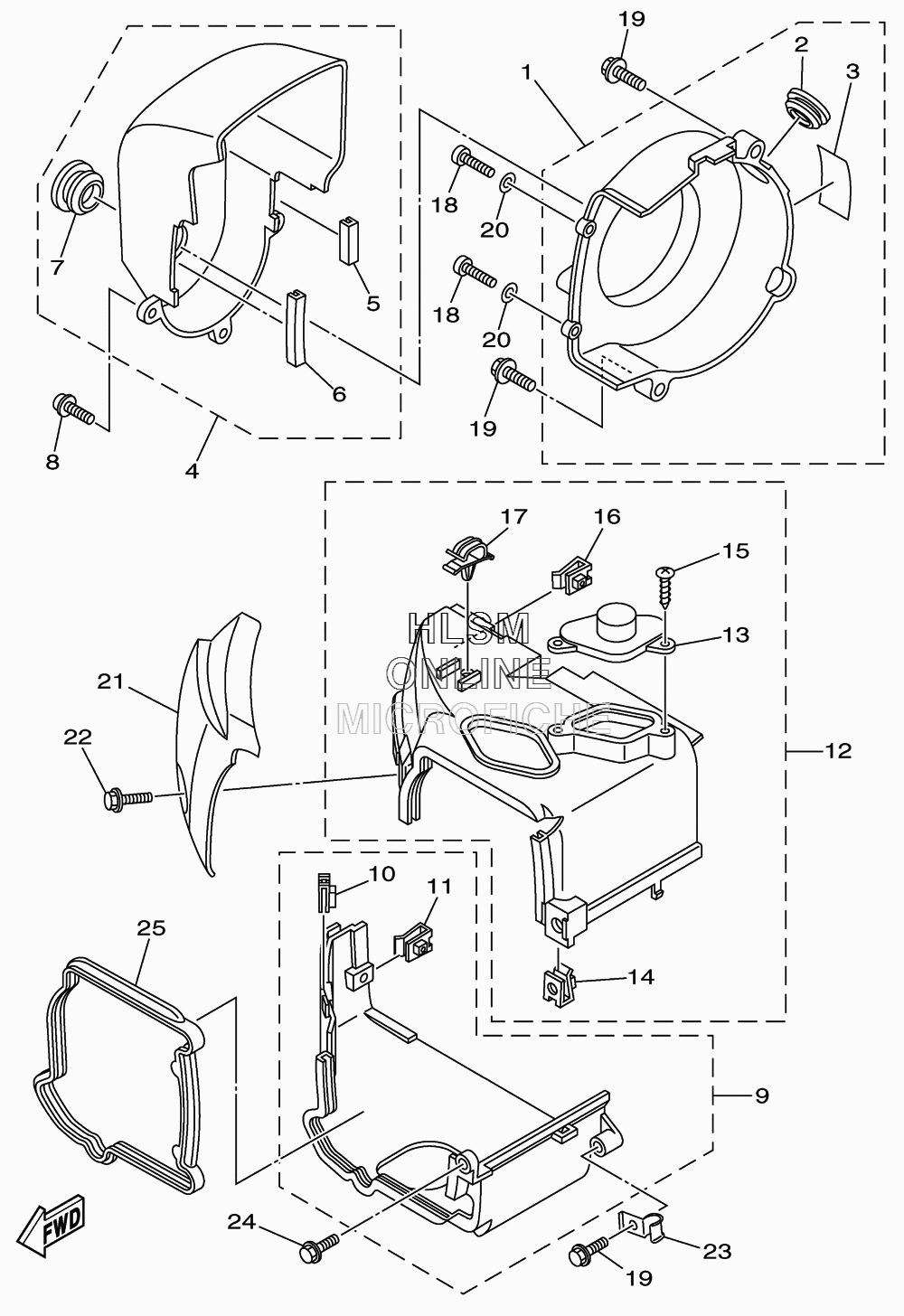

AIR SHROUD W/ FAN для Yamaha RAPTOR 90 - 2010 года выпуска`
-
№АртикулНазвание
-
143D-E2660-00-00 AIR SHROUD ASSYAIR SHROUD ASSY
-
243D-E261B-00-00 GROMMET SHROUD 1GROMMET SHROUD 1
-
343D-E3889-00-00 LABELLABEL
-
443D-E2601-00-00 DUCT INLET COMP.DUCT INLET COMP.
-
543D-E2659-00-00 DAMPER, AIR SHROUD 2DAMPER, AIR SHROUD 2
-
643D-E2668-00-00 DAMPER, AIR SHROUD 3DAMPER, AIR SHROUD 3
-
743D-E261C-00-00 GROMMET SHROUD 2GROMMET SHROUD 2
-
843D-E4216-00-00 SCREWSCREW
-
943D-E2620-00-00 AIR SHROUD ASSYAIR SHROUD ASSY
-
1043D-E261D-00-00 NUT SPRING 1NUT SPRING 1
-
1143D-E261F-00-00 NUT SPRING 2NUT SPRING 2
-
1243D-E2650-00-00 AIR SHROUD ASSY.,2AIR SHROUD ASSY.,2
-
1343D-E261J-00-00 COVER 1COVER 1
-
1443D-E261D-00-00 NUT SPRING 1NUT SPRING 1
-
1543D-E4567-00-00 SCREWSCREW
-
1643D-E261F-00-00 NUT SPRING 2NUT SPRING 2
-
1743D-E261G-00-00 CLAMP 2CLAMP 2
-
1843D-E4325-00-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1995027-06020-00 BOLT, FLANGEBOLT, FLANGE
-
2043D-E4475-00-00 WASHERWASHER
-
2143D-E261K-00-00 COVER 2COVER 2
-
2295827-06025-00 BOLT, FLANGEBOLT, FLANGE
-
2343D-E262K-00-00 CLAMP 1CLAMP 1
-
2495022-06016-00 BOLT, FLANGEBOLT, FLANGE
-
2543D-E261H-00-00 SEAL 1SEAL 1
