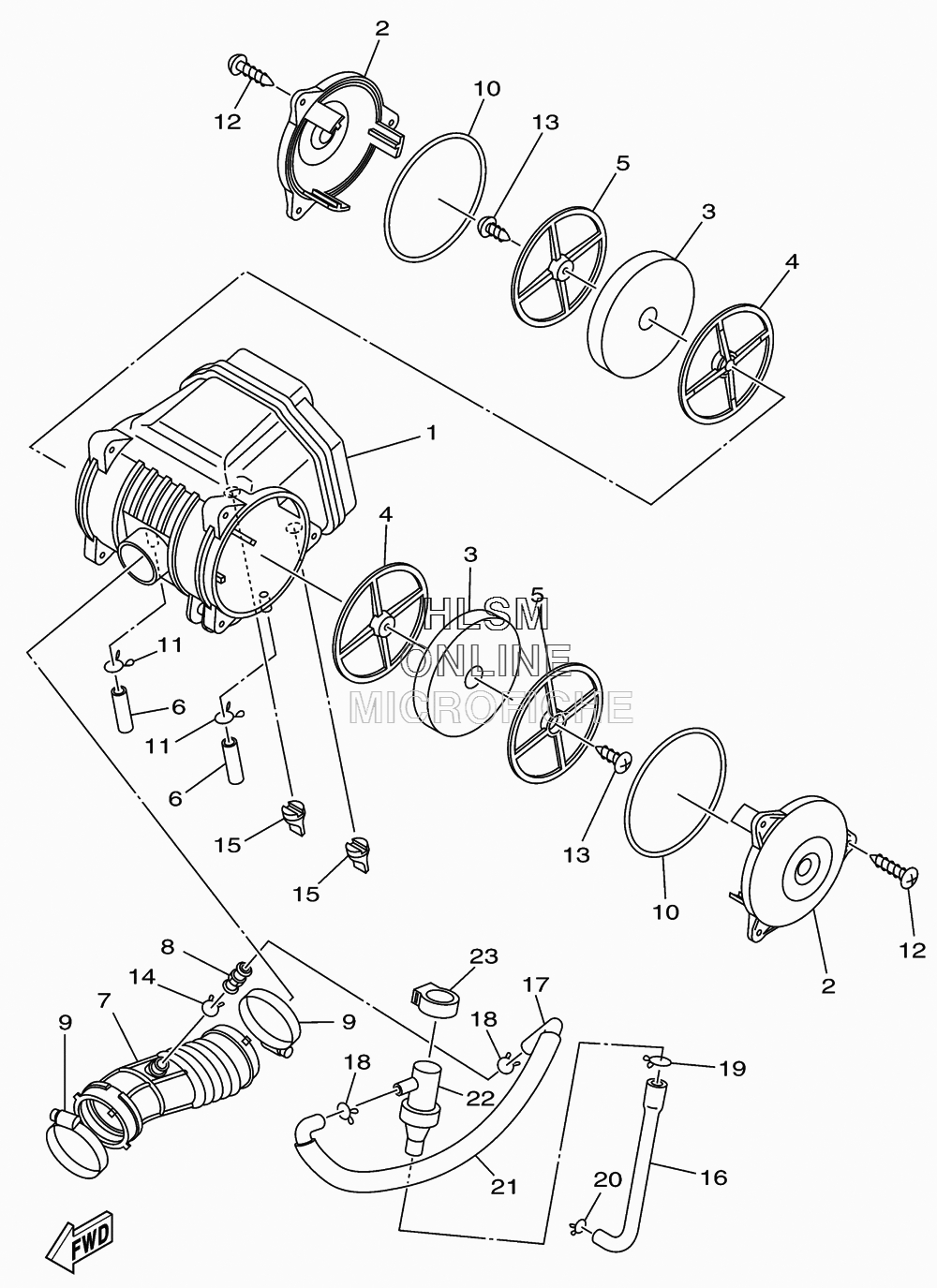

AIR CLEANER W/ INTAKE для Yamaha RAPTOR 90 - 2010 года выпуска`
-
№АртикулНазвание
-
143D-E4411-10-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
243D-E449E-00-00 COVER, AIR CLEANERCOVER, AIR CLEANER
-
343D-E4451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
443D-E4468-00-00 PLATE,ELEMENT FITTINGPLATE,ELEMENT FITTING
-
543D-E440H-00-00 PLATE ELEMENT SET 2PLATE ELEMENT SET 2
-
643D-E443E-10-00 PIPE, DRAINPIPE, DRAIN
-
743D-E4453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
843D-E4419-00-00 PIPEPIPE
-
943D-E4455-00-00 BANDBAND
-
1043D-E41A1-00-00 SEAL RINGSEAL RING
-
1143D-E4137-10-00 CLIPCLIP
-
1243D-E4429-10-00 SCREWSCREW
-
1343D-E5793-00-00 SCREWSCREW
-
1443D-E4159-00-00 CLIPCLIP
-
1543D-E4222-00-00 VALVE, DRAINVALVE, DRAIN
-
1643D-E4148-00-00 PIPEPIPE
-
1743D-E4149-00-00 PIPEPIPE
-
1843D-E4159-00-00 CLIPCLIP
-
1943D-E449C-00-00 CLIP 1CLIP 1
-
2043D-E449D-00-00 CLIP 2CLIP 2
-
2143D-E442F-00-00 PROTECTORPROTECTOR
-
2243D-E1126-00-00 PIPE, BREATHER 3PIPE, BREATHER 3
-
2343D-E4169-00-00 CAPCAP
