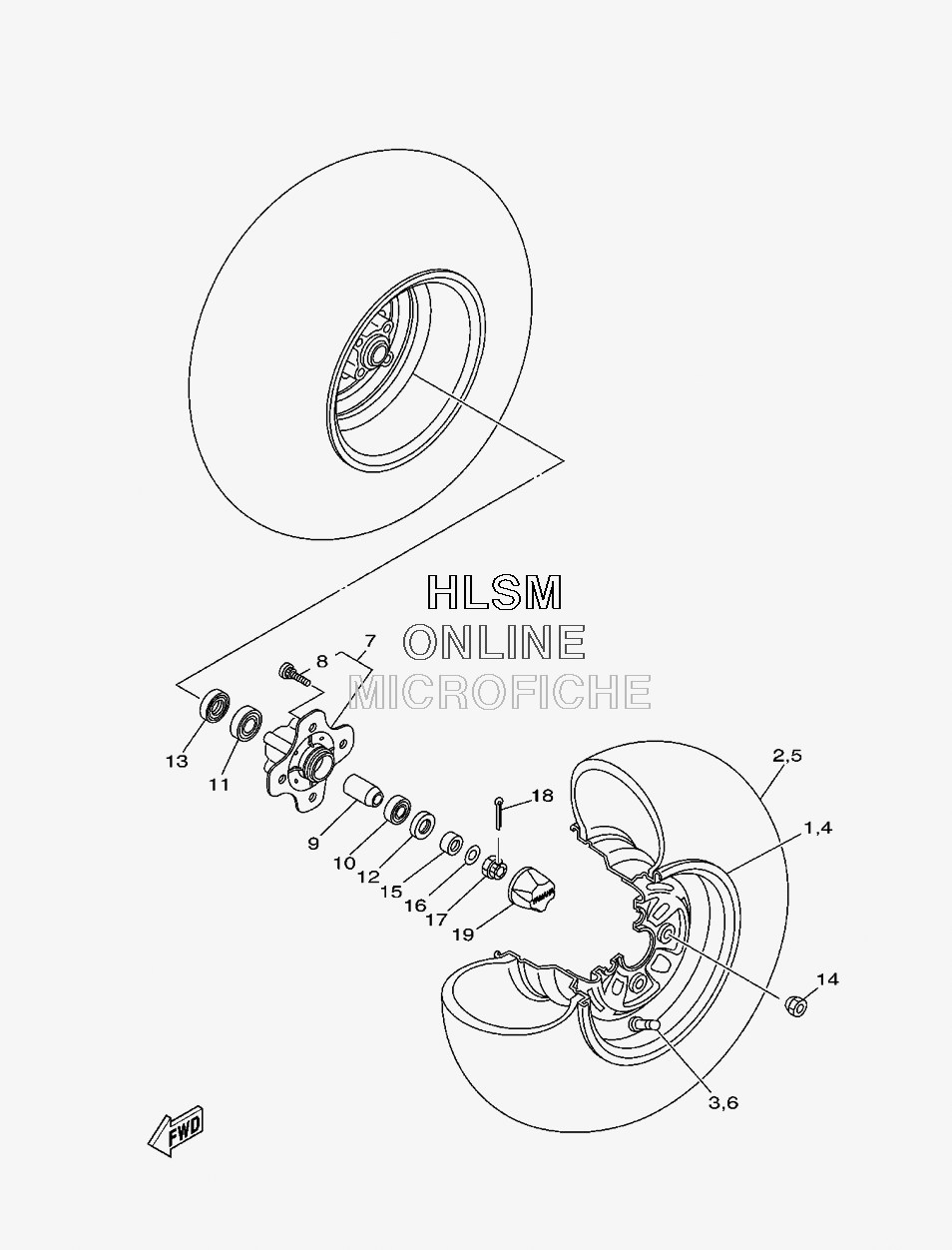

WHEEL - FRONT W/ AXLE ASSY для Yamaha BIG BEAR 250 - 2009 года выпуска`
-
№АртикулНазвание
-
14XE-F5180-31-00 WHEEL COMP. FOR SMJWHEEL COMP. FOR SMJ
-
14XE-F5180-50-00 WHEEL COMP. FOR RTR, PDGWHEEL COMP. FOR RTR, PDG
-
294107-10800-00 TIRE (AT 22X 7-10, M-905) CHENG SHINTIRE (AT 22X 7-10, M-905) CHENG SHIN
-
393900-00813-00 VALVE, RIM (TR413)VALVE, RIM (TR413)
-
44XE-F5180-31-00 WHEEL COMP. FOR SMJWHEEL COMP. FOR SMJ
-
44XE-F5180-50-00 WHEEL COMP. FOR RTR, PDGWHEEL COMP. FOR RTR, PDG
-
594107-10800-00 TIRE (AT 22X 7-10, M-905) CHENG SHINTIRE (AT 22X 7-10, M-905) CHENG SHIN
-
693900-00813-00 VALVE, RIM (TR413)VALVE, RIM (TR413)
-
74XE-F5111-21-00 HUB, FRONTHUB, FRONT
-
81P0-F5411-00-00 BOLTBOLT
-
91UY-25117-00-00 SPACER, BEARINGSPACER, BEARING
-
1093306-004YX-00 BEARINGBEARING
-
1193306-202XM-00 BEARINGBEARING
-
1293102-22216-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
1393105-26026-00 OIL SEAL, SDD-TYPEOIL SEAL, SDD-TYPE
-
1490179-10022-00 NUTNUT
-
1590387-150R1-00 COLLARCOLLAR
-
1690201-14816-00 WASHER, PLATEWASHER, PLATE
-
1790171-14004-00 NUT, CASTLENUT, CASTLE
-
1891402-30025-00 PIN, COTTERPIN, COTTER
-
1952H-2512A-00-00 CAP, WHEELCAP, WHEEL
