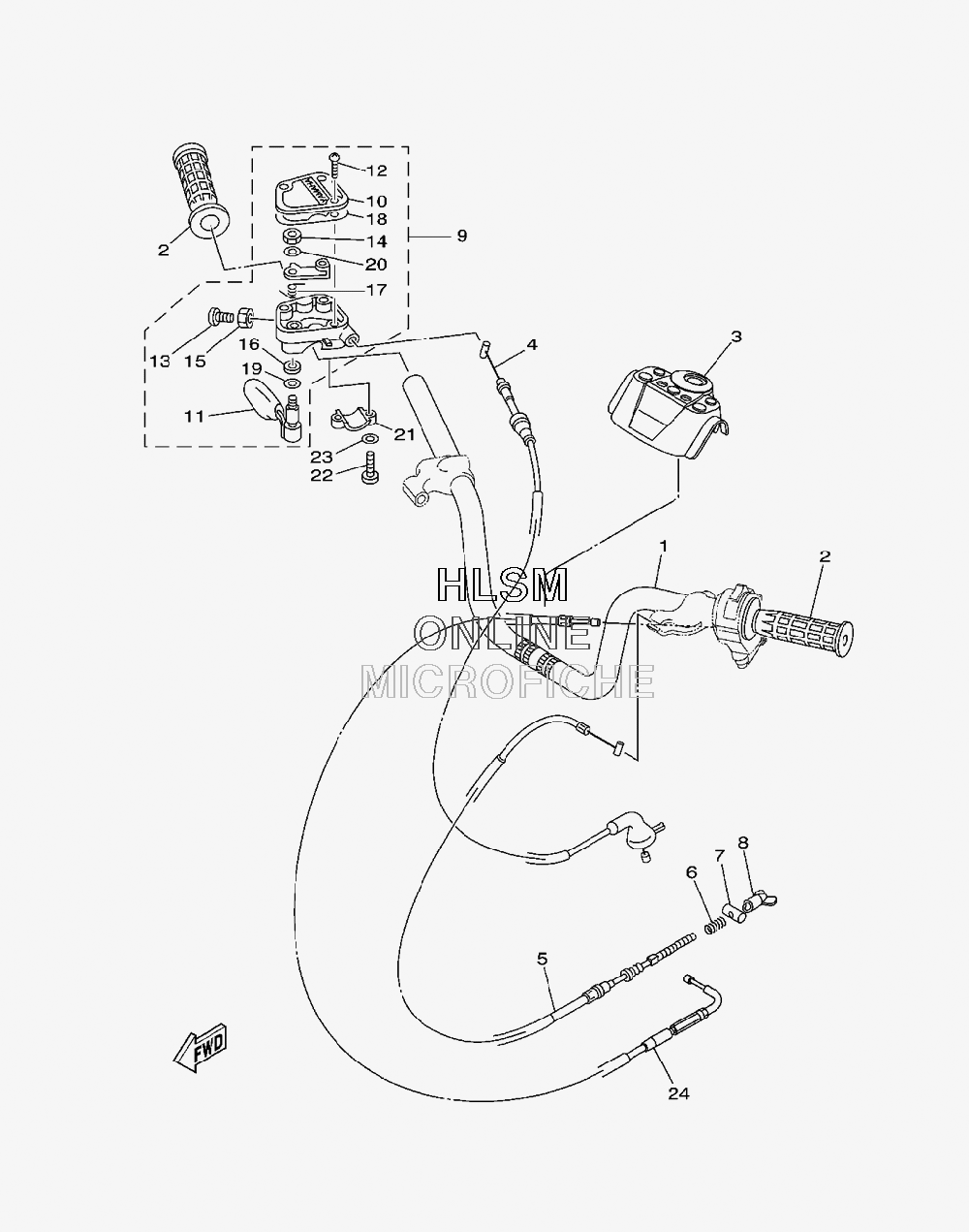

HANDLEBAR W/ CABLES для Yamaha BIG BEAR 250 - 2009 года выпуска
-
№АртикулНазвание
-
15FU-F6111-10-00 HANDLEBARHANDLEBAR
-
25FU-F6241-10-00 GRIPGRIP
-
31P0-F6124-00-00 PROTECTOR, HANDLEBARPROTECTOR, HANDLEBAR
-
41P0-26311-10-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
51P0-26341-10-00 WIRE, BRAKE 1WIRE, BRAKE 1
-
690501-10782-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
790249-12008-00 PIN, SPEC'L SHAPEPIN, SPEC'L SHAPE
-
820E-26343-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
94KB-26250-10-00 THROTTLE LEVER ASSYTHROTTLE LEVER ASSY
-
104KB-2628F-10-00 CAP, GEARCAP, GEAR
-
111NV-2625G-01-00 LEVER, THROTTLELEVER, THROTTLE
-
1290149-04278-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
1398507-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1495607-05100-00 NUT, UNUT, U
-
1595307-05700-00 NUTNUT
-
1693104-09025-00 OIL SEAL, SO-TYPEOIL SEAL, SO-TYPE
-
171NV-26304-00-00 SPRINGSPRING
-
184KB-2628G-00-00 GASKETGASKET
-
191NV-26129-00-00 WASHERWASHER
-
201NV-26398-00-00 WASHER, SPECIALWASHER, SPECIAL
-
214V4-82913-00-00 HOLDER, LEVER LOWER 1HOLDER, LEVER LOWER 1
-
2298502-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2392902-05600-00 WASHER, PLATEWASHER, PLATE
-
241P0-F6331-00-00 CABLE, STARTER 1CABLE, STARTER 1
