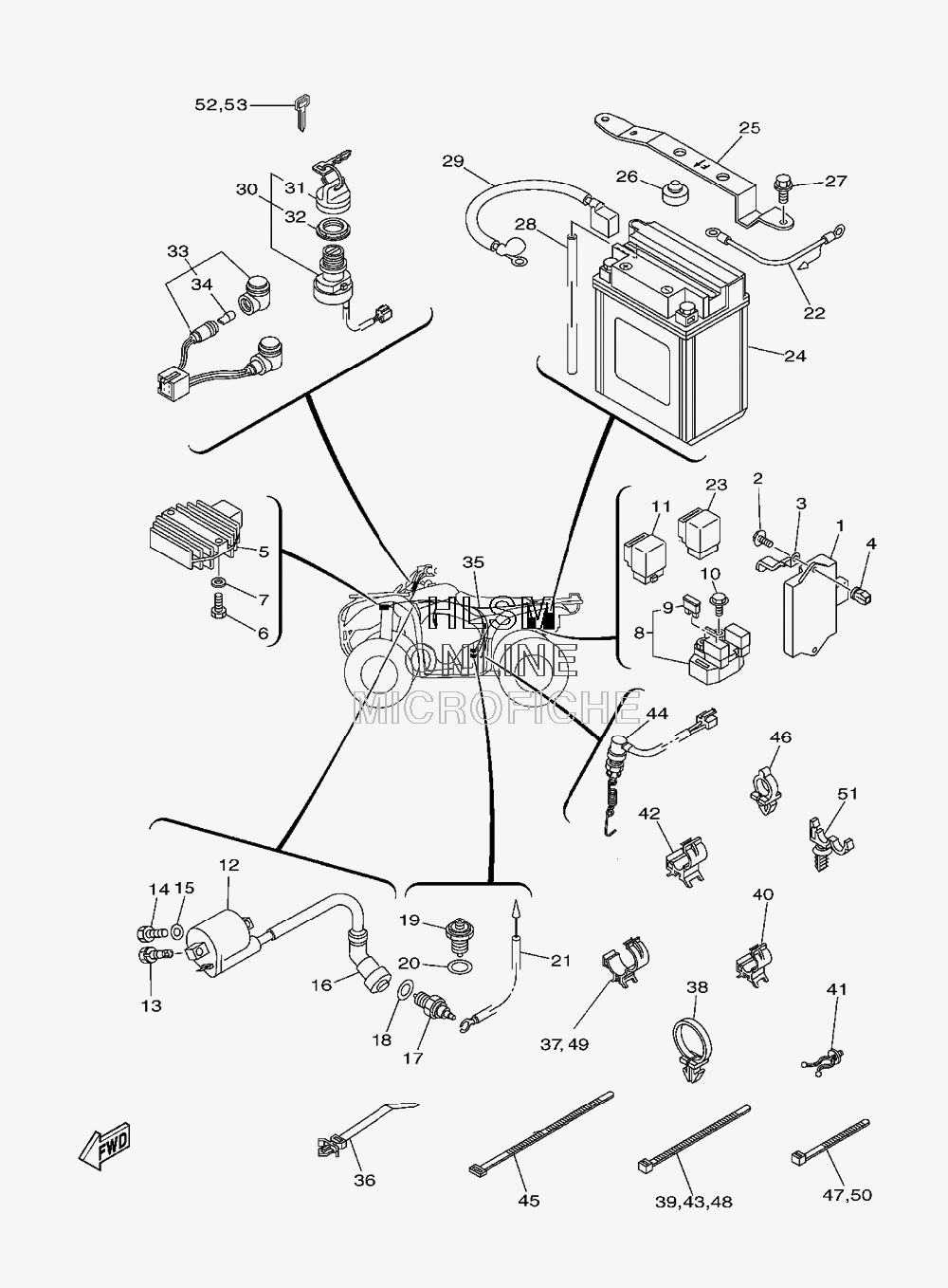

ELECTRICAL для Yamaha BIG BEAR 250 - 2009 года выпуска
-
№АртикулНазвание
-
11P0-85540-00-00 C.D.I. UNIT ASSYC.D.I. UNIT ASSY
-
297702-60420-00 SCREW, TAPPINGSCREW, TAPPING
-
390462-06016-00 CLAMPCLAMP
-
490338-08226-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
55GT-81960-00-00 RECTIFIER AND REGULATOR ASSYRECTIFIER AND REGULATOR ASSY
-
697002-06020-00 BOLTBOLT
-
792902-06600-00 WASHER, PLATEWASHER, PLATE
-
84XE-81940-12-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
92GH-82151-00-00 FUSE (20A-BL)FUSE (20A-BL)
-
1095022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
111RL-81950-92-00 RELAY ASSYRELAY ASSY
-
124KJ-82310-10-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
1390109-06865-00 BOLTBOLT
-
1497002-06020-00 BOLTBOLT
-
1592902-06600-00 WASHER, PLATEWASHER, PLATE
-
161UY-82370-20-00 PLUG CAP ASSYPLUG CAP ASSY
-
173GB-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
1890430-10148-00 GASKETGASKET
-
194KD-82540-00-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
2090201-12790-00 WASHER, PLATEWASHER, PLATE
-
215XG-H2507-00-00 WIRE, LEADWIRE, LEAD
-
221P0-H2116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
235DM-81950-00-00 RELAY ASSY (G8HN-1C4T-DJ-Y52)RELAY ASSY (G8HN-1C4T-DJ-Y52)
-
24BTY-CB149-A2-01 BATTERY ASSY (GS CB14A-A2)BATTERY ASSY (GS CB14A-A2)
-
251P0-H2128-00-00 BRACKET, BATTERYBRACKET, BATTERY
-
265TG-82121-10-00 PAD, BATTERYPAD, BATTERY
-
2795802-06020-00 BOLT, FLANGEBOLT, FLANGE
-
281P0-H2112-00-00 PIPE, BREATHERPIPE, BREATHER
-
291P0-H2115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
304XE-82510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
313HN-82579-00-00 CAP, KEYCAP, KEY
-
323HN-82569-00-00 NUT, MAIN SWITCHNUT, MAIN SWITCH
-
335TE-83530-00-00 PILOT LIGHT ASSYPILOT LIGHT ASSY
-
345GH-83516-00-00 BULB (14V-1.7W)BULB (14V-1.7W)
-
351P0-82590-20-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
3690464-25800-00 CLAMPCLAMP
-
3790464-20835-00 CLAMPCLAMP
-
3890464-19815-00 CLAMPCLAMP
-
3990464-40825-00 CLAMPCLAMP
-
4090464-08834-00 CLAMPCLAMP
-
4190464-12836-00 CLAMPCLAMP
-
4290464-10842-00 CLAMPCLAMP
-
4390464-40825-00 CLAMPCLAMP
-
444XE-82530-10-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
4590464-48800-00 CLAMPCLAMP
-
4690464-10833-00 CLAMPCLAMP
-
4790464-31827-00 CLAMPCLAMP
-
4890464-40825-00 CLAMPCLAMP
-
4990464-20835-00 CLAMPCLAMP
-
5090464-31827-00 CLAMPCLAMP
-
5190464-12830-00 CLAMPCLAMP
-
5290890-56001-00 KEY BLANK (A-TYPE)KEY BLANK (A-TYPE)
-
5390890-56002-00 KEY BLANK (B-TYPE)KEY BLANK (B-TYPE)
