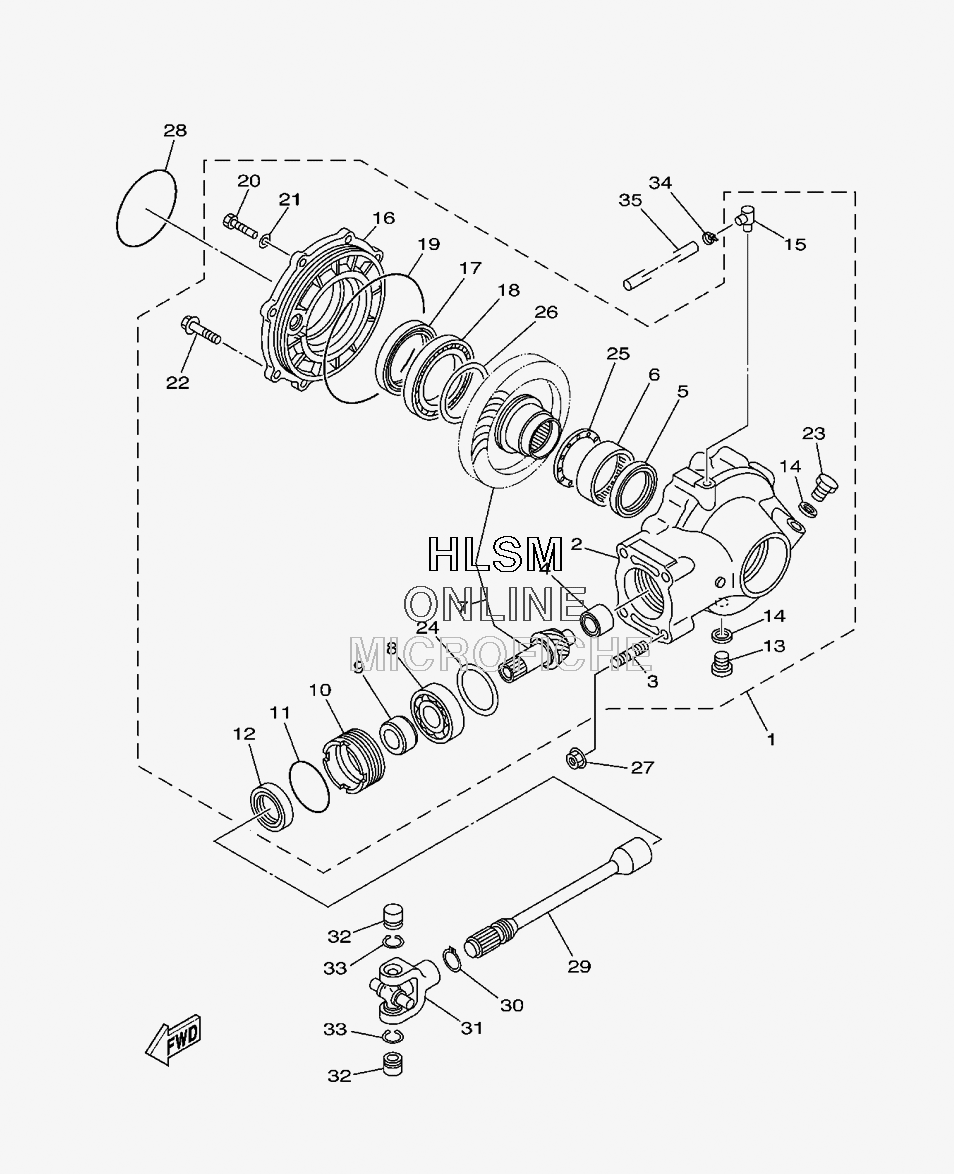

DIFFERENTIAL - REAR W/ DRIVE SHAFT для Yamaha BIG BEAR 250 - 2009 года выпуска
-
№АртикулНазвание
-
14XE-G6101-01-00 REAR AXLE GEAR CASE ASSYREAR AXLE GEAR CASE ASSY
-
24XE-G6151-01-00 HOUSING, DRIVE SHAFTHOUSING, DRIVE SHAFT
-
390116-10593-00 BOLT, STUDBOLT, STUD
-
44XE-G6102-00-00 BEARING ASSYBEARING ASSY
-
593101-52116-00 OIL SEAL, S-TYPEOIL SEAL, S-TYPE
-
693317-855Y9-00 BEARINGBEARING
-
74XE-Y4612-00-00 RING GEAR SETRING GEAR SET
-
893306-305Y6-00 BEARINGBEARING
-
990387-255H9-00 COLLARCOLLAR
-
1029U-46125-00-00 RETAINER, BEARINGRETAINER, BEARING
-
1193210-59531-00 O-RINGO-RING
-
1293101-38098-00 OIL SEAL, S-TYPEOIL SEAL, S-TYPE
-
1390340-14046-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
14214-11198-01-00 GASKETGASKET
-
152N4-15371-00-00 BREATHERBREATHER
-
164XE-G6152-01-00 HOUSING, BEARINGHOUSING, BEARING
-
1793102-65386-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
1893316-013Y0-00 BEARINGBEARING
-
1993211-51749-00 O-RINGO-RING
-
2097022-08025-00 BOLTBOLT
-
2192902-08600-00 WASHER, PLATEWASHER, PLATE
-
2295812-10045-00 BOLT, FLANGEBOLT, FLANGE
-
2390340-14029-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
244XE-E7537-15-00 SHIM, THRUST (T=0.15MM)SHIM, THRUST (T=0.15MM)
-
244XE-E7537-30-00 SHIM, THRUST (T=0.30MM)SHIM, THRUST (T=0.30MM)
-
244XE-E7537-40-00 SHIM, THRUST (T=0.40MM)SHIM, THRUST (T=0.40MM)
-
244XE-E7537-45-00 SHIM, THRUST (T=0.45MM)SHIM, THRUST (T=0.45MM)
-
244XE-E7537-50-00 SHIM, THRUST (T=0.50MM)SHIM, THRUST (T=0.50MM)
-
244XE-E7537-60-00 SHIM, THRUST (T=0.60MM)SHIM, THRUST (T=0.60MM)
-
254XE-G6118-10-00 SHIM, THRUST (T=1.0MM)SHIM, THRUST (T=1.0MM)
-
254XE-G6118-11-00 SHIM, THRUST (T=1.1MM)SHIM, THRUST (T=1.1MM)
-
254XE-G6118-12-00 SHIM, THRUST (T=1.2MM)SHIM, THRUST (T=1.2MM)
-
254XE-G6118-13-00 SHIM, THRUST (T=1.3MM)SHIM, THRUST (T=1.3MM)
-
254XE-G6118-14-00 SHIM, THRUST (T=1.4MM)SHIM, THRUST (T=1.4MM)
-
254XE-G6118-15-00 SHIM, THRUST (T=1.5MM)SHIM, THRUST (T=1.5MM)
-
254XE-G6118-16-00 SHIM, THRUST (T=1.6MM)SHIM, THRUST (T=1.6MM)
-
254XE-G6118-17-00 SHIM, THRUST (T=1.7MM)SHIM, THRUST (T=1.7MM)
-
254XE-G6118-18-00 SHIM, THRUST (T=1.8MM)SHIM, THRUST (T=1.8MM)
-
254XE-G6118-19-00 SHIM, THRUST (T=1.9MM)SHIM, THRUST (T=1.9MM)
-
254XE-G6118-20-00 SHIM, THRUST (T=2.0MM)SHIM, THRUST (T=2.0MM)
-
254XE-G6118-21-00 SHIM, THRUST (T=2.1MM)SHIM, THRUST (T=2.1MM)
-
254XE-G6118-A3-00 SHIM, THRUST (T=1.35MM)SHIM, THRUST (T=1.35MM)
-
254XE-G6118-A4-00 SHIM, THRUST (T=1.45MM)SHIM, THRUST (T=1.45MM)
-
254XE-G6118-A5-00 SHIM, THRUST (T=1.55MM)SHIM, THRUST (T=1.55MM)
-
264XE-G6117-25-00 SHIM, RING GEAR (T=0.25MM)SHIM, RING GEAR (T=0.25MM)
-
264XE-G6117-30-00 SHIM, RING GEAR (T=0.30MM)SHIM, RING GEAR (T=0.30MM)
-
264XE-G6117-35-00 SHIM, RING GEAR (T=0.35MM)SHIM, RING GEAR (T=0.35MM)
-
264XE-G6117-40-00 SHIM, RING GEAR (T=0.40MM)SHIM, RING GEAR (T=0.40MM)
-
264XE-G6117-45-00 SHIM, RING GEAR (T=0.45MM)SHIM, RING GEAR (T=0.45MM)
-
264XE-G6117-50-00 SHIM, RING GEAR (T=0.50MM)SHIM, RING GEAR (T=0.50MM)
-
2795702-10500-00 NUT, WITH WASHERNUT, WITH WASHER
-
2893210-85706-00 O-RINGO-RING
-
294XE-G6172-00-00 SHAFT, DRIVESHAFT, DRIVE
-
3093410-22039-00 CIRCLIP, S-TYPECIRCLIP, S-TYPE
-
314X7-46180-00-00 CROSS JOINT COMP.CROSS JOINT COMP.
-
3293311-21044-00 BEARINGBEARING
-
3393440-20088-00 CIRCLIP, OUTERCIRCLIP, OUTER
-
3490467-07029-00 CLIP, SCISSORCLIP, SCISSOR
-
3590445-078C4-00 HOSE (L900)HOSE (L900)
