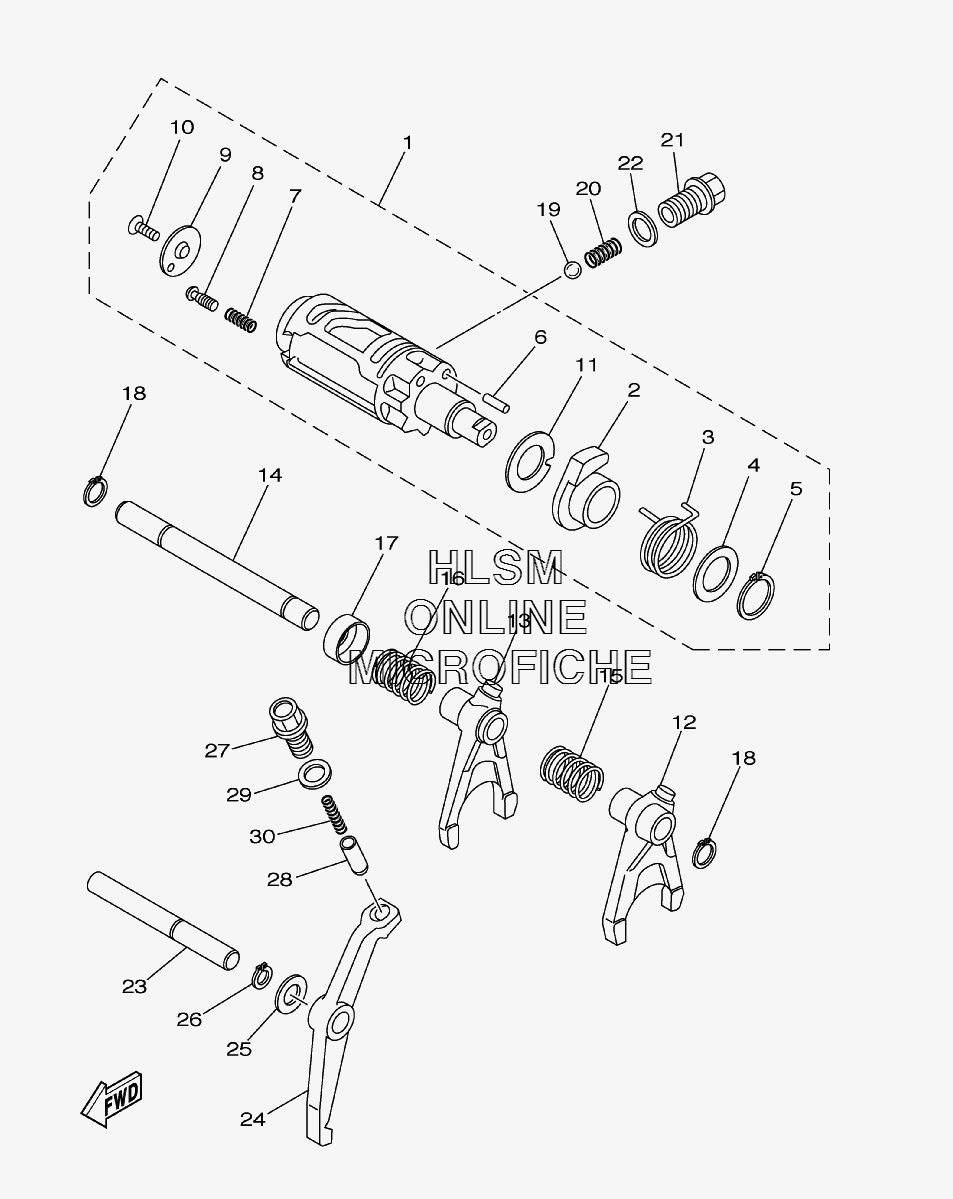

SHIFT CAM W/ FORK для Yamaha GRIZZLY 660 - 2007 года выпуска`
-
№АртикулНазвание
-
15KM-18540-02-00 SHIFT CAM ASSYSHIFT CAM ASSY
-
25KM-18171-00-00 ...CAM, LEVER...CAM, LEVER
-
390508-32018-00 ...SPRING, TORSION...SPRING, TORSION
-
490201-20792-00 ...WASHER, PLATE...WASHER, PLATE
-
593410-20038-00 ...CIRCLIP, S-TYPE...CIRCLIP, S-TYPE
-
693604-18100-00 ...PIN, DOWEL...PIN, DOWEL
-
790501-06022-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
85KM-18542-00-00 ...POINT, NEUTRAL...POINT, NEUTRAL
-
94UN-18566-00-00 ...PLATE, SIDE 2...PLATE, SIDE 2
-
1090149-05321-00 ...SCREW, SPEC'L SHAPE...SCREW, SPEC'L SHAPE
-
115KM-18331-00-00 ...PLATE, SHIFT CAM...PLATE, SHIFT CAM
-
125KM-18511-00-00 FORK, SHIFT 1FORK, SHIFT 1
-
135KM-18512-00-00 FORK, SHIFT 2FORK, SHIFT 2
-
145KM-18531-01-00 BAR, SHIFT FORK GUIDE 1BAR, SHIFT FORK GUIDE 1
-
1590501-12016-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1690501-16002-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
175KM-18323-00-00 CAP, SPRINGCAP, SPRING
-
1899009-12400-00 CIRCLIPCIRCLIP
-
1993503-08007-00 BALL 3/8BALL 3/8
-
2090501-10353-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
2190105-14003-00 BOLT, FLANGEBOLT, FLANGE
-
2290430-14194-00 GASKETGASKET
-
235KM-18318-00-00 SHAFT, SHIFTERSHAFT, SHIFTER
-
245KM-18148-00-00 LEVER, STOPPERLEVER, STOPPER
-
2590201-127J6-00 WASHER, PLATEWASHER, PLATE
-
2699009-12400-00 CIRCLIPCIRCLIP
-
2790109-14002-00 BOLTBOLT
-
281J7-18547-00-00 STOPPER, CAMSTOPPER, CAM
-
2990430-14043-00 GASKETGASKET
-
3090501-12004-00 SPRING, COMPRESSIONSPRING, COMPRESSION
