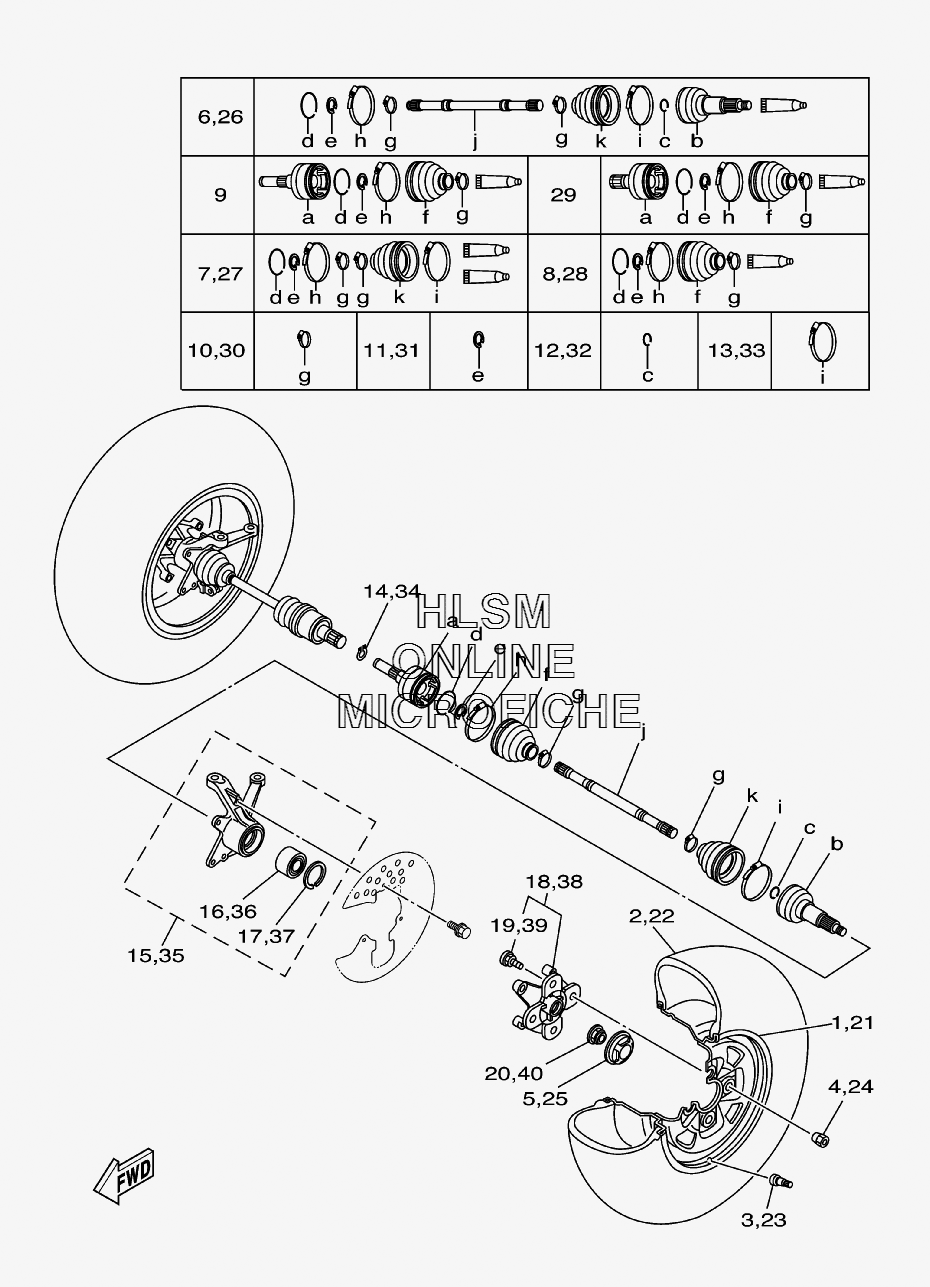

WHEEL - FRONT W/ AXLE ASSY для Yamaha GRIZZLY 660 - 2007 года выпуска`
-
№АртикулНазвание
-
15KM-25180-42-00 WHEEL COMP.WHEEL COMP.
-
294108-12011-00 TIRE (AT25X8-12 KT131 T/L) DUNLOPTIRE (AT25X8-12 KT131 T/L) DUNLOP
-
393900-00030-00 VALVE, RIMVALVE, RIM
-
490179-10007-00 NUTNUT
-
55KM-2512A-00-00 CAP, WHEELCAP, WHEEL
-
65KM-2510F-11-00 BALL JOINT SETBALL JOINT SET
-
75KM-2510G-11-00 BOOT SET (BALL JOINT)BOOT SET (BALL JOINT)
-
85KM-2510H-10-00 BOOT SET (DOUBLE OFFSET JOINT)BOOT SET (DOUBLE OFFSET JOINT)
-
95KM-2510J-30-00 DOUBLE OFF SET JOINT (LH)DOUBLE OFF SET JOINT (LH)
-
103HN-2512G-01-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
112HR-2512J-00-00 SNAP RINGSNAP RING
-
124KB-2512H-00-00 CIRCLIPCIRCLIP
-
133HN-2511G-01-00 BOOT BAND (BALL JOINT)BOOT BAND (BALL JOINT)
-
145KM-45531-10-00 CLIP, DRIVE SHAFTCLIP, DRIVE SHAFT
-
155KM-23501-11-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
1693305-00602-00 ...BEARING...BEARING
-
1799009-55500-00 ...CIRCLIP...CIRCLIP
-
185KM-25111-10-00 HUB, FRONTHUB, FRONT
-
1990114-10010-00 ...BOLT, SERRATION...BOLT, SERRATION
-
2090179-20006-00 NUTNUT
-
215KM-25180-42-00 WHEEL COMP.WHEEL COMP.
-
2294108-12011-00 TIRE (AT25X8-12 KT131 T/L) DUNLOPTIRE (AT25X8-12 KT131 T/L) DUNLOP
-
2393900-00030-00 VALVE, RIMVALVE, RIM
-
2490179-10007-00 NUTNUT
-
255KM-2512A-00-00 CAP, WHEELCAP, WHEEL
-
265KM-2510F-11-00 BALL JOINT SETBALL JOINT SET
-
275KM-2510G-11-00 BOOT SET (BALL JOINT)BOOT SET (BALL JOINT)
-
285KM-2510H-10-00 BOOT SET (DOUBLE OFFSET JOINT)BOOT SET (DOUBLE OFFSET JOINT)
-
295KM-2510J-20-00 DOUBLE OFF SET JOINT (RH)DOUBLE OFF SET JOINT (RH)
-
303HN-2512G-01-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
312HR-2512J-00-00 SNAP RINGSNAP RING
-
324KB-2512H-00-00 CIRCLIPCIRCLIP
-
333HN-2511G-01-00 BOOT BAND (BALL JOINT)BOOT BAND (BALL JOINT)
-
3493450-22119-00 CIRCLIP, INNERCIRCLIP, INNER
-
355KM-23502-11-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
3693305-00602-00 ...BEARING...BEARING
-
3799009-55500-00 ...CIRCLIP...CIRCLIP
-
385KM-25111-10-00 HUB, FRONTHUB, FRONT
-
3990114-10010-00 ...BOLT, SERRATION...BOLT, SERRATION
-
4090179-20006-00 NUTNUT
