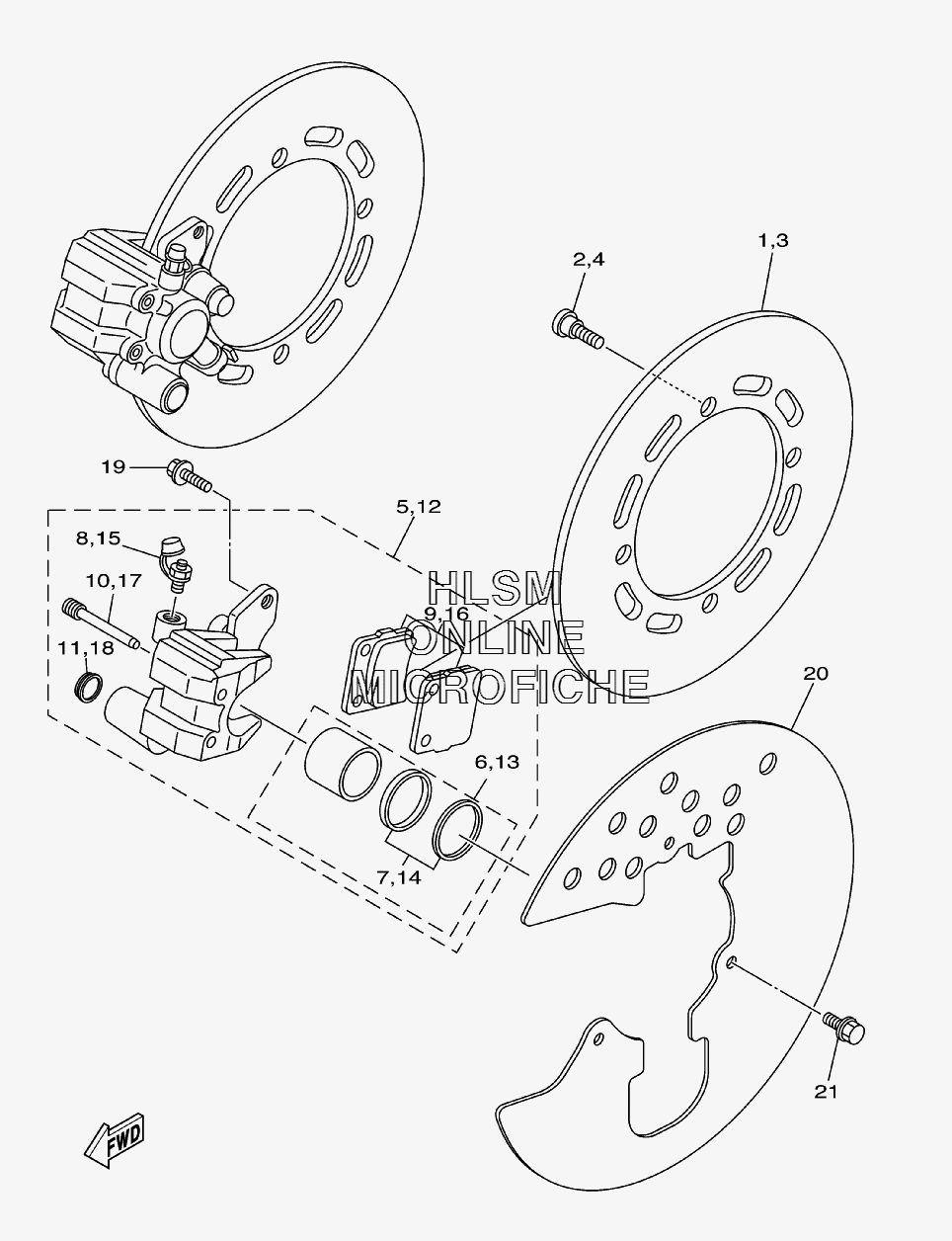

BRAKE - FRONT CALIPER для Yamaha GRIZZLY 660 - 2007 года выпуска
-
№АртикулНазвание
-
15KM-2582T-10-00 DISC, BRAKE (LEFT)DISC, BRAKE (LEFT)
-
290109-08021-00 BOLTBOLT
-
35KM-2582T-10-00 DISC, BRAKE (LEFT)DISC, BRAKE (LEFT)
-
490109-08021-00 BOLTBOLT
-
54WV-2580T-10-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
63GD-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
73GD-W0047-00-00 ...CALIPER SEAL KIT...CALIPER SEAL KIT
-
81UY-W0048-50-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
94WV-W0045-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
103GD-25933-00-00 ...PIN, PAD...PIN, PAD
-
113GD-25916-00-00 ...PLUG...PLUG
-
124WV-2580U-10-00 CALIPER ASSY (RIGHT)CALIPER ASSY (RIGHT)
-
133GD-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
143GD-W0047-00-00 ...CALIPER SEAL KIT...CALIPER SEAL KIT
-
151UY-W0048-50-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
164WV-W0045-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
173GD-25933-00-00 ...PIN, PAD...PIN, PAD
-
183GD-25916-00-00 ...PLUG...PLUG
-
1990105-08538-00 BOLT, FLANGEBOLT, FLANGE
-
205KM-2514A-10-00 RING, WHEEL 1 (LEFT)RING, WHEEL 1 (LEFT)
-
2190150-06021-00 SCREW, ROUND HEADSCREW, ROUND HEAD
