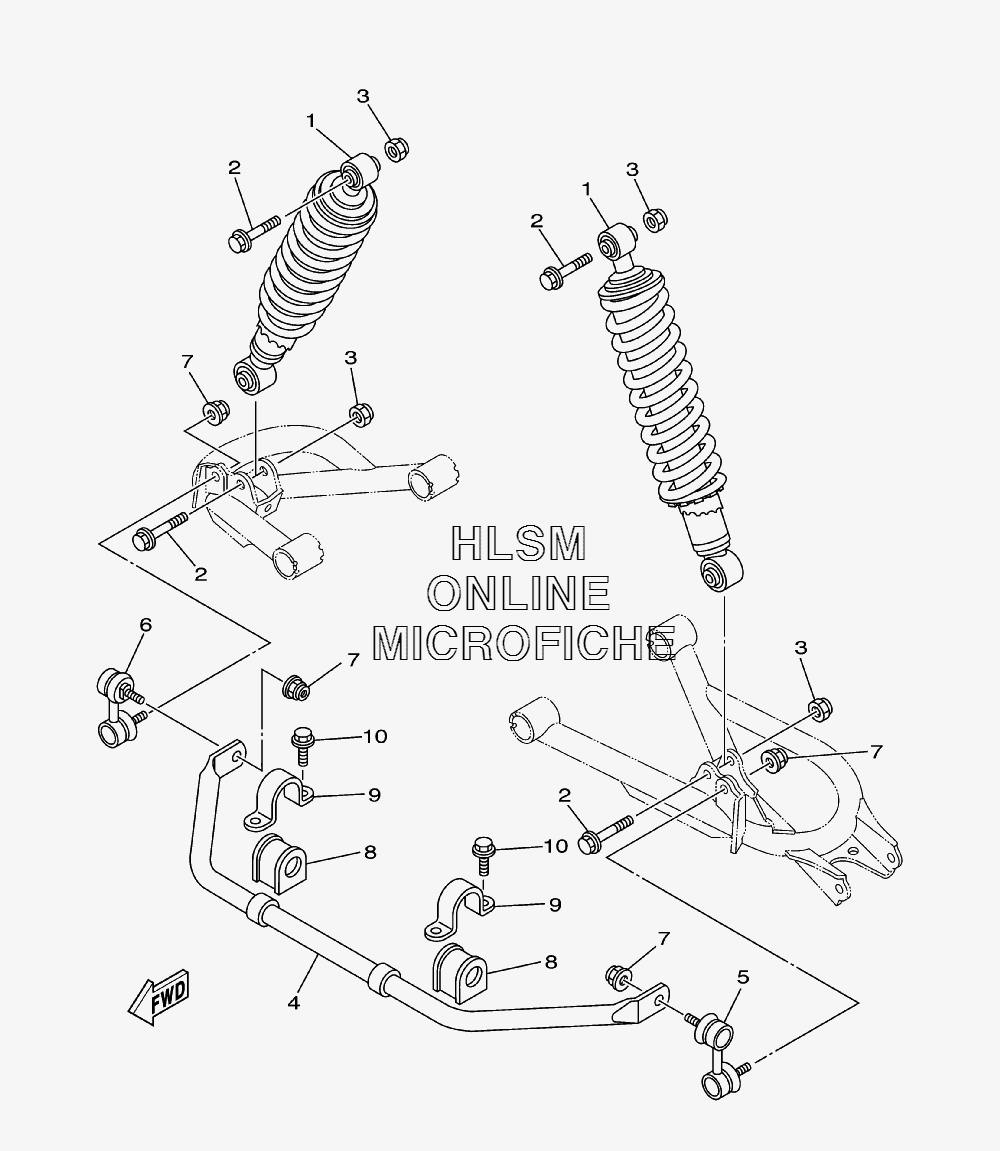

SUSPENSION - REAR SHOCK ABSORBER для Yamaha GRIZZLY 660 - 2007 года выпуска
-
№АртикулНазвание
-
15KM-22210-20-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
290105-10388-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
390185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
45KM-47491-00-00 BAR, STABILIZERBAR, STABILIZER
-
55KM-2385L-01-00 JOINT, STABILIZER 1JOINT, STABILIZER 1
-
65KM-2385M-01-00 JOINT, STABILIZER 2JOINT, STABILIZER 2
-
795607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
85KM-2386G-00-00 BUSH, STABILIZER FRONTBUSH, STABILIZER FRONT
-
95KM-2386H-00-00 COVER, STABILIZER FRONTCOVER, STABILIZER FRONT
-
1095817-08014-00 BOLT, FLANGEBOLT, FLANGE
