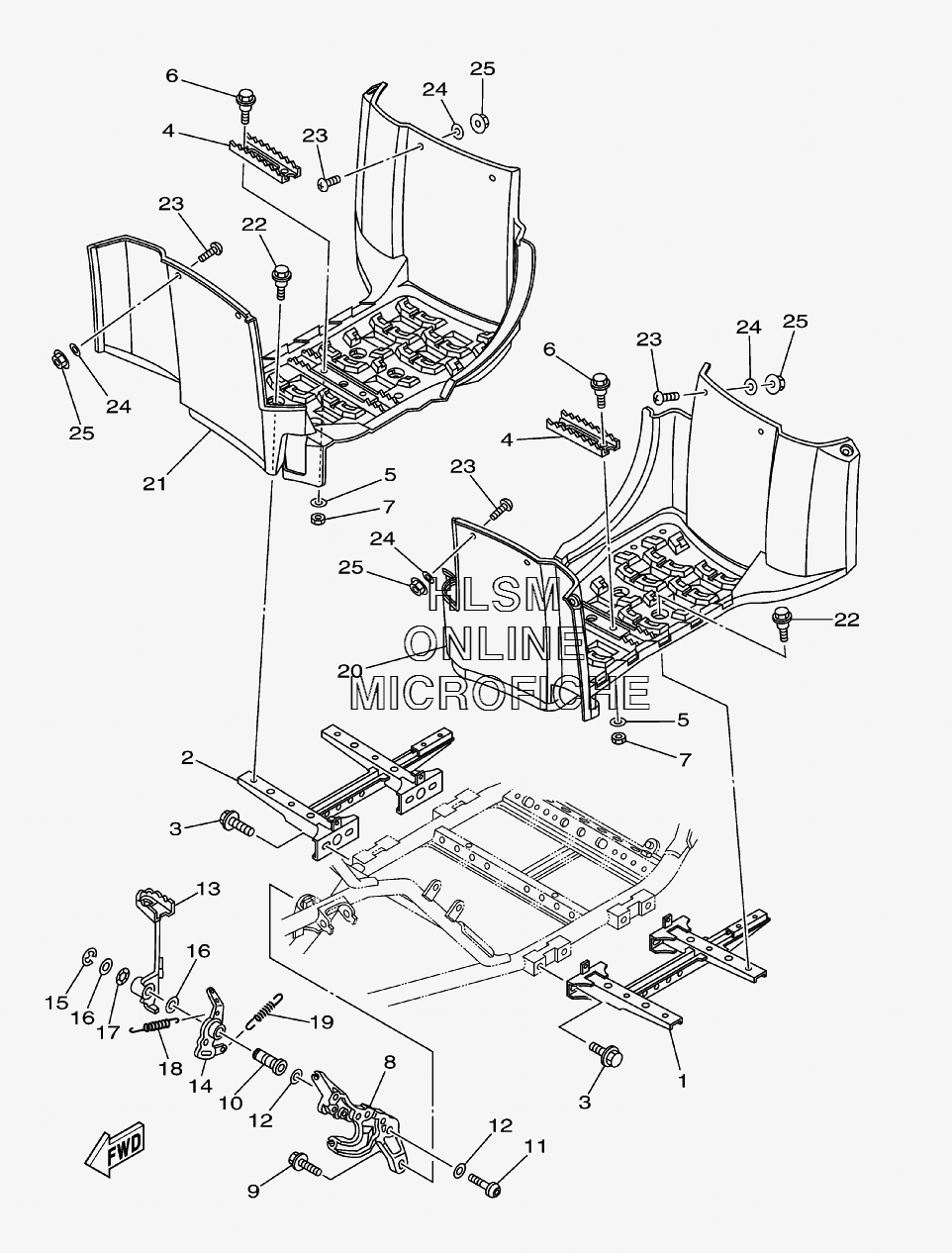

FOOTREST W/ BRAKE PEDAL для Yamaha GRIZZLY 660 - 2007 года выпуска`
-
№АртикулНазвание
-
15KM-27481-10-00 BOARD, FOOTRESTBOARD, FOOTREST
-
25KM-27488-10-00 BOARD, FOOTREST 2BOARD, FOOTREST 2
-
395817-08012-00 BOLT, FLANGEBOLT, FLANGE
-
45GH-2741A-00-00 ARM 1ARM 1
-
590201-06071-00 WASHER, PLATEWASHER, PLATE
-
690109-063F5-00 BOLTBOLT
-
795317-06600-00 NUTNUT
-
85KM-27263-00-00 BRACKET 1BRACKET 1
-
995817-08025-00 BOLT, FLANGEBOLT, FLANGE
-
105KM-27212-10-00 SHAFT, BRAKE PEDALSHAFT, BRAKE PEDAL
-
1190149-08296-00 SCREWSCREW
-
1290201-08784-00 WASHER, PLATEWASHER, PLATE
-
135KM-27211-10-00 PEDAL, BRAKEPEDAL, BRAKE
-
145KM-27252-00-00 LEVER, BRAKE PEDALLEVER, BRAKE PEDAL
-
1599001-10600-00 CIRCLIPCIRCLIP
-
1690201-144J2-00 WASHER, PLATEWASHER, PLATE
-
1790206-14086-00 WASHER, WAVEWASHER, WAVE
-
1890506-16318-00 SPRING, TENSIONSPRING, TENSION
-
1990506-12441-00 SPRING, TENSIONSPRING, TENSION
-
205KM-27453-01-00 COVER 1COVER 1
-
215KM-27463-01-00 COVER 2COVER 2
-
2290109-063F1-00 BOLTBOLT
-
2390149-06021-00 SCREWSCREW
-
2490201-06557-00 WASHER, PLATEWASHER, PLATE
-
2595707-06300-00 NUT, NYLONNUT, NYLON
