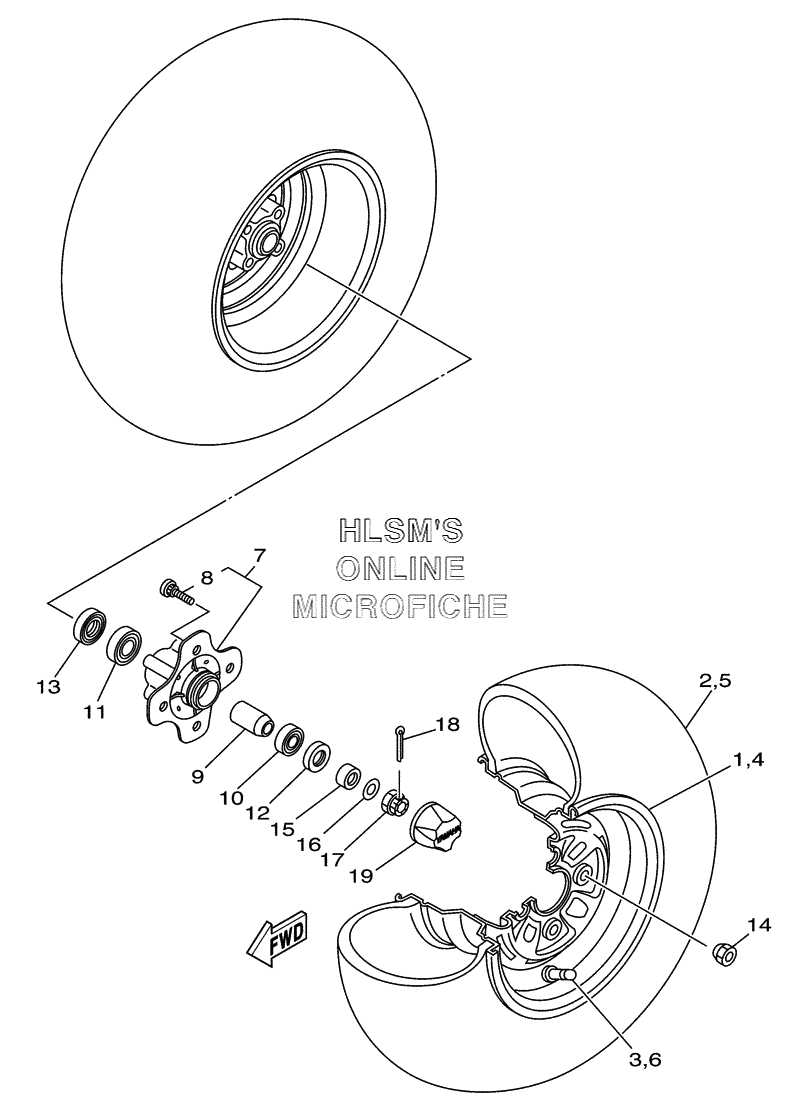

WHEEL - FRONT W/ AXLE ASSY для Yamaha BEAR TRACKER YFM250XS - 2004 года выпуска`
-
№АртикулНазвание
-
14XE-F5180-30-00 WHEEL COMP.WHEEL COMP.
-
294107-108X6-00 TIRE (AT 22X7-10, KT701-T/L) (OPT) (DUNLOP)TIRE (AT 22X7-10, KT701-T/L) (OPT) (DUNLOP)
-
294107-10800-00 TIRE (AT 22X 7-10, M-905) (OPT) (CHENG SHIN)TIRE (AT 22X 7-10, M-905) (OPT) (CHENG SHIN)
-
393900-00810-00 VALVE, RIM (TR413) (OPT) (DUNLOP)VALVE, RIM (TR413) (OPT) (DUNLOP)
-
393900-00813-00 VALVE, RIM (TR413) (OPT) (CHENG SHIN)VALVE, RIM (TR413) (OPT) (CHENG SHIN)
-
44XE-F5180-30-00 WHEEL COMP.WHEEL COMP.
-
594107-108X6-00 TIRE (AT 22X7-10, KT701-T/L) (OPT) (DUNLOP)TIRE (AT 22X7-10, KT701-T/L) (OPT) (DUNLOP)
-
594107-10800-00 TIRE (AT 22X 7-10, M-905) (OPT) (CHENG SHIN)TIRE (AT 22X 7-10, M-905) (OPT) (CHENG SHIN)
-
693900-00810-00 VALVE, RIM (TR413) (OPT) (DUNLOP)VALVE, RIM (TR413) (OPT) (DUNLOP)
-
693900-00813-00 VALVE, RIM (TR413) (OPT) (CHENG SHIN)VALVE, RIM (TR413) (OPT) (CHENG SHIN)
-
74XE-F5111-20-00 HUB, FRONTHUB, FRONT
-
890114-10804-00 ...BOLT, SERRATION...BOLT, SERRATION
-
91UY-25117-00-00 SPACER, BEARINGSPACER, BEARING
-
1093306-004YX-00 BEARINGBEARING
-
1193306-202XM-00 BEARINGBEARING
-
1293102-22216-00 OIL SEALOIL SEAL
-
1393105-26026-00 OIL SEALOIL SEAL
-
1490179-10540-00 NUTNUT
-
1590387-150R1-00 COLLARCOLLAR
-
1690201-148R0-00 WASHER, PLATEWASHER, PLATE
-
1790171-14817-00 NUT, CASTLENUT, CASTLE
-
1891401-30025-00 PIN, COTTERPIN, COTTER
-
1952H-2512A-00-00 CAP, WHEELCAP, WHEEL
