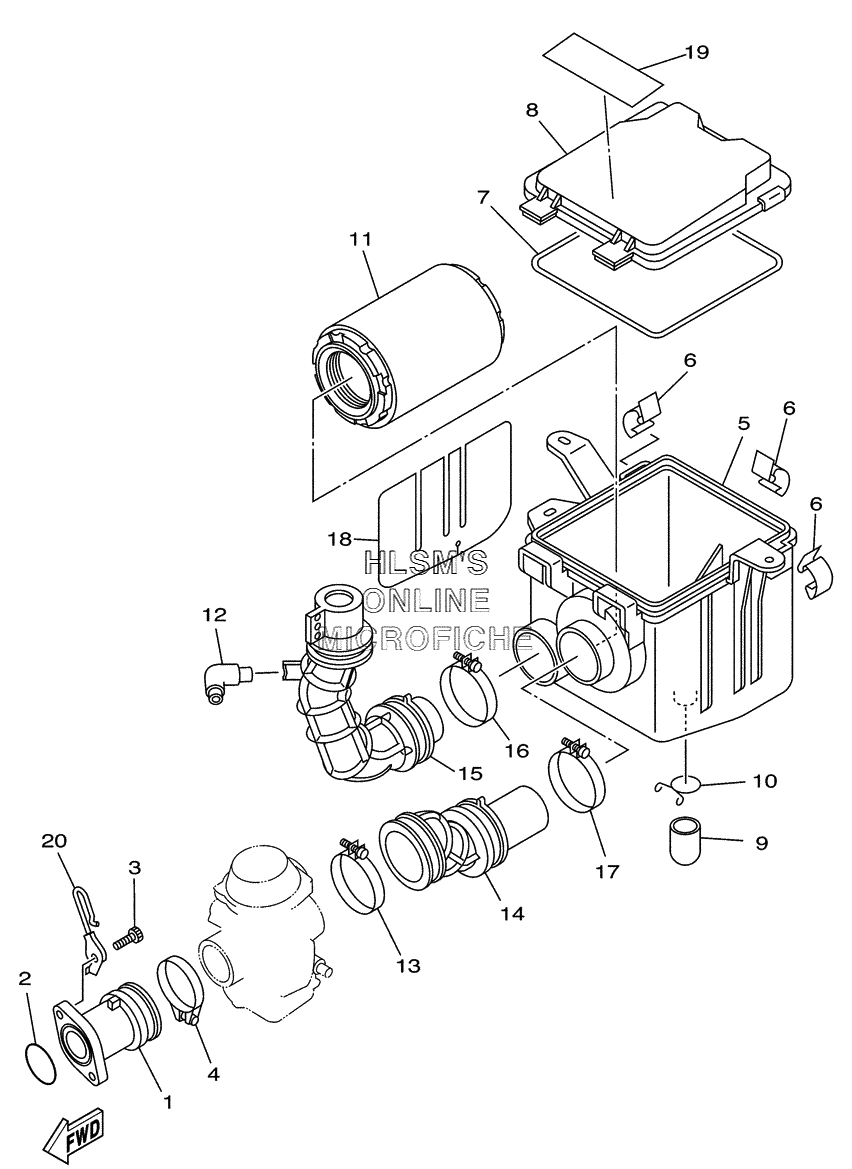

AIR CLEANER W/ INTAKE для Yamaha BEAR TRACKER YFM250XS - 2004 года выпуска`
-
№АртикулНазвание
-
14XE-13586-00-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
293210-35537-00 O-RINGO-RING
-
391317-06020-00 BOLTBOLT
-
490450-49020-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
54XE-E4411-00-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
6JN6-E4424-00-00 CLIP, CAP FITTINGCLIP, CAP FITTING
-
74XE-E4462-00-00 SEALSEAL
-
84XE-E4412-00-00 CAP, CLEANER CASE 1CAP, CLEANER CASE 1
-
94XE-E4457-00-00 SEALSEAL
-
104XE-E4438-00-00 CLIP, DRAIN CLEANERCLIP, DRAIN CLEANER
-
114XE-E4450-00-00 ELEMENT ASSY, AIR CLEANERELEMENT ASSY, AIR CLEANER
-
1231A-14419-00-00 PIPEPIPE
-
1390460-56105-00 CLAMP, HOSECLAMP, HOSE
-
144XE-E4453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
154XE-E4437-00-00 DUCTDUCT
-
1690460-58124-00 CLAMP, HOSECLAMP, HOSE
-
1790460-56105-00 CLAMP, HOSECLAMP, HOSE
-
184XE-E442F-00-00 PROTECTORPROTECTOR
-
194XE-2179T-20-00 PLATE, EPA 3 (CALIFORNIA)PLATE, EPA 3 (CALIFORNIA)
-
204BD-2631F-00-00 GUIDEGUIDE
