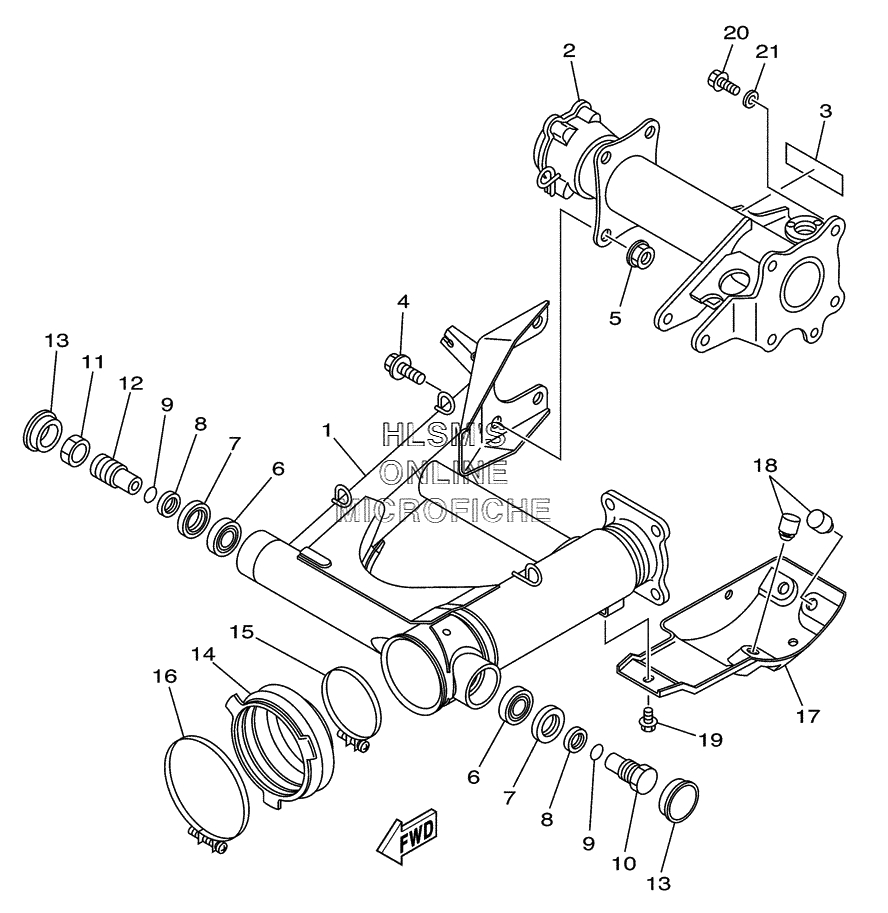

SUSPENSION - REAR ARM для Yamaha BEAR TRACKER YFM250XS - 2004 года выпуска`
-
№АртикулНазвание
-
14XE-F2110-00-00 REAR ARM COMP.REAR ARM COMP.
-
24XE-G6540-20-00 REAR AXLE HOUSING COMP.REAR AXLE HOUSING COMP.
-
34XE-F151K-00-00 LABEL 7LABEL 7
-
49581P-12025-00 BOLT, FLANGEBOLT, FLANGE
-
595707-12500-00 NUT, FLANGENUT, FLANGE
-
693332-000Y3-00 BEARINGBEARING
-
793102-25017-00 OIL SEALOIL SEAL
-
890387-1711G-00 COLLARCOLLAR
-
993210-17718-00 O-RINGO-RING
-
104XE-F2141-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
114XE-F2143-00-00 NUTNUT
-
124XE-F214H-00-00 SHAFT, PIVOT 2SHAFT, PIVOT 2
-
1390338-34264-00 PLUGPLUG
-
1429U-22189-00-00 BOOT, RUBBERBOOT, RUBBER
-
1590460-85135-00 CLAMP, HOSECLAMP, HOSE
-
1690460-99228-00 CLAMP, HOSECLAMP, HOSE
-
174XE-F219X-00-00 COVERCOVER
-
18109-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
1995807-08012-00 BOLT, FLANGEBOLT, FLANGE
-
2090105-10893-00 BOLT, FLANGEBOLT, FLANGE
-
2190201-101J1-00 WASHER, PLATEWASHER, PLATE
