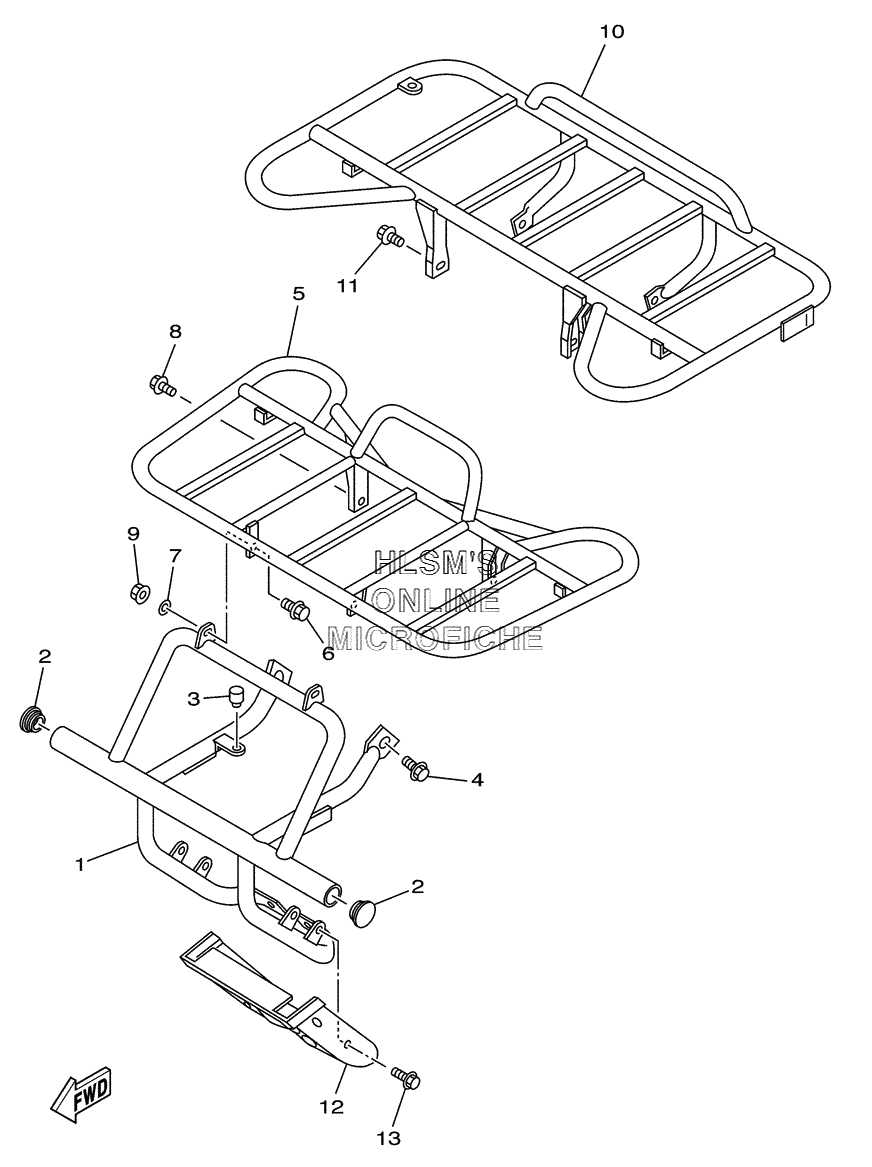

RACK AND BUMPER для Yamaha BEAR TRACKER YFM250XS - 2004 года выпуска`
-
№АртикулНазвание
-
14XE-F845N-30-00 BAR, CARRY FRONTBAR, CARRY FRONT
-
24XE-F8415-00-00 DAMPER 1DAMPER 1
-
3109-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
49581P-08016-00 BOLT, FLANGEBOLT, FLANGE
-
54XE-F4841-20-00 CARRIER, FRONTCARRIER, FRONT
-
69582P-06016-00 BOLT, FLANGEBOLT, FLANGE
-
790201-068R3-00 WASHER, PLATEWASHER, PLATE
-
89581P-08016-00 BOLT, FLANGEBOLT, FLANGE
-
995707-06500-00 NUT, FLANGENUT, FLANGE
-
104XE-F4842-20-00 CARRIER, REARCARRIER, REAR
-
1190105-08816-00 BOLT, FLANGEBOLT, FLANGE
-
124XE-F842M-00-00 COVER 1COVER 1
-
1390119-06079-00 BOLT, WITH WASHERBOLT, WITH WASHER
